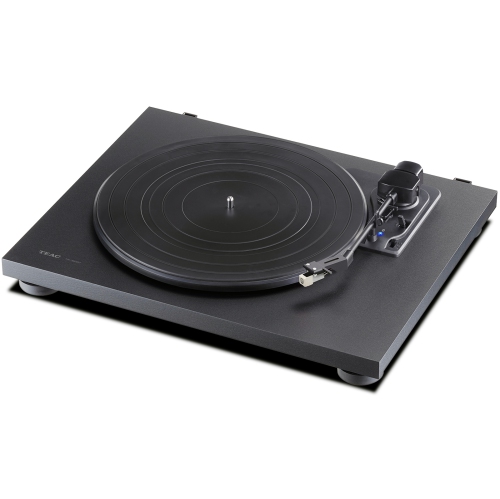

Open Box- TEAC TN-180-BT-A3 (Black) Belt Drive Bluetooth Turntable
A new way of record playing
Built-in Bluetooth® transmitter
The TN-180BT-A3 delivers the sound wirelessly via built-in Bluetooth® transmitter, in addition to conventional RCA output in analog Line or Phono format. The pairing button is located at the tone-arm base, which illuminates when the connection with BT speakers/headphone is made successfully.
Unlike other turntable units, the TN-180BT-A3 provides you the simplest way of listening to vinyl records via Bluetooth® wireless technology.
If you already have a Bluetooth-enable speakers or headphone for your iPhone/Android phone, all you have to do is to install the TN-180BT-A3 in your room – no pricy hi-fi system and complicated wiring are required –. The connection is as simple as ABC, just press the BT pairing button when the Bluetooth® speakers/headphones are ready to the pairing, and once the connection is established, you don't need to repeat the same process every time you listening to vinyl records.
The TN-180BT-A3 also provides conventional ways of connection to hi-fi system with or without PHONO input via cable, and an RCA audio cable comes with the TN-180BT-A3.
The TN-180BT-A3 plays LP, EP and SP records from your library. The tone-arm automatically returns to the original position as playback finished.
*The groove of the SP (78rpm) records is 3 to 4 times wider than typical 33 1/3rpm record, so it might damage the stylus and cause the noise when you play back the record with pre-installed stylus. Please keep it limited use.
A VM-type (equivalent to MM-type) cartridge AT3600L by audio-technica is already installed to the straight-type tone-arm at the factory, so you can start playing records as soon as you open the box.
The authentic belt-drive turntable is driven by a high torque DC motor, while precision stainless steel spindle and durable brass spindle holder maintain accurate rotation speed.
Unlike others with plastic chassis, a single wooden board with high-density MDF minimizes vibrations and resonance to playback of your vinyl record library with clearer sound.
Enjoy vinyl playback with any amplifier regardless type of inputs. The TN-180BT-A3 supports both PHONO and LINE outputs that allow you to play vinyl with or without Phono equalizer.
Features at a Glance:
•Belt-drive turntable
•Built-in Bluetooth® transmitter to BT speakers or headphones
•Built-in Phono equalizing amplifier
•PHONO, LINE and Bluetooth® outputs
•High-density MDF cabinet for improved resonance reduction
•3-speed (33-1/3, 45, 78 rpm)
•Auto-return and manual arm lifter
•audio-technica AT3600L MM-type cartridge installed
PowerAC 100 to 240V, 50/60Hz
Power Consumption< 1.5W (< 0.2W at Standby)
Overall Dimensions
(W x H x D)16.5" x 4.1" x 14.0"
420 x 105 x 356 mm
Weight Approx. 10.8 lbs. 4.9 kg
Turntable section
MotorDC Motor
Speed33 1/3 RPM, 45 RPM, 78 RPM
Wow and Flutter0.25%
Signal-to-Noise Ratio64dB or higher (A-weighted, 20kHz LPF)
PlatterPlastic
Diameter of Platter12", 30cm
