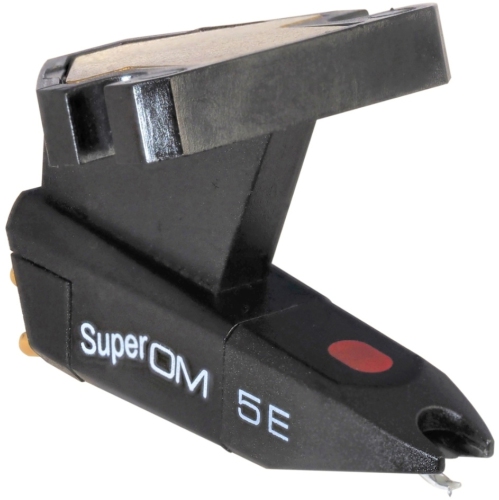

Ortofon Super OM 5E moving magnet cartridge

Ortofon Super OM 5E

Model: 5705796013849
Web Code: 14480556
Sold and shipped by | 4.6 seller rating (205 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

Based on the OM 5E, Ortofon's stellar entry-level cartridge, the Super OM 5E offers an even more refined experience at an approachable price.

Designed with sophisticated computer simulations and built using incredibly precise machining, the Super OM 5E is the pinnacle of the OM 5 Series, offering a broader frequency range and better channel separation. Its elliptical stylus tracks the grooves of a record with ease and grace, for a more detailed, clearer sound.

Lightweight and versatile, the Super OM 5E is compatible with just about any tonearm, making it an easy upgrade for a vinyl beginner or a terrific option for a second system.

Super OM 5 Technical data

Output voltage at 1000 Hz, 5cm/sec. - 4 mV

Channel balance at 1 kHz - 1.5 dB

Channel separation at 1 kHz - 22 dB

Channel separation at 15 kHz - 15 dB

Frequency range at - 3dB - 20-25.000 Hz

Frequency response - 20-20.000 Hz ± 2 dB

Tracking ability at 315Hz at recommended tracking force - 65 µm

Compliance, dynamic, lateral - 20 µm/mN

Stylus type - Elliptical

Stylus tip radius - r/R 8/18 µm

Tracking force range - 1.5-2.0 g (15-20 mN)

Tracking force, recommended - 1.75 g (17.5 mN)

Tracking angle - 20°

Internal impedance, DC resistance - 1 kOhm

Internal inductance - 580 mH

Recommended load resistance - 47 kOhm

Recommended load capacitance - 200-500 pF

Cartridge colour, body/stylus - Black/Black

Cartridge weight incl. extra weight - 5 g

Cartridge weight excl. extra weight - 2.5 g

Replacement stylus unit - Stylus 5 E, Stylus 10
