Regulates Voltage, Improves Picture and Sound Quality, Monitors Incoming Line Voltage, and Reduces Cross-Contamination Between Components.Voltage RegulationImprove system performance and prolong equipment life by providing a consistent level of optimal power to your equipment.Improves Picture and Sound Quality

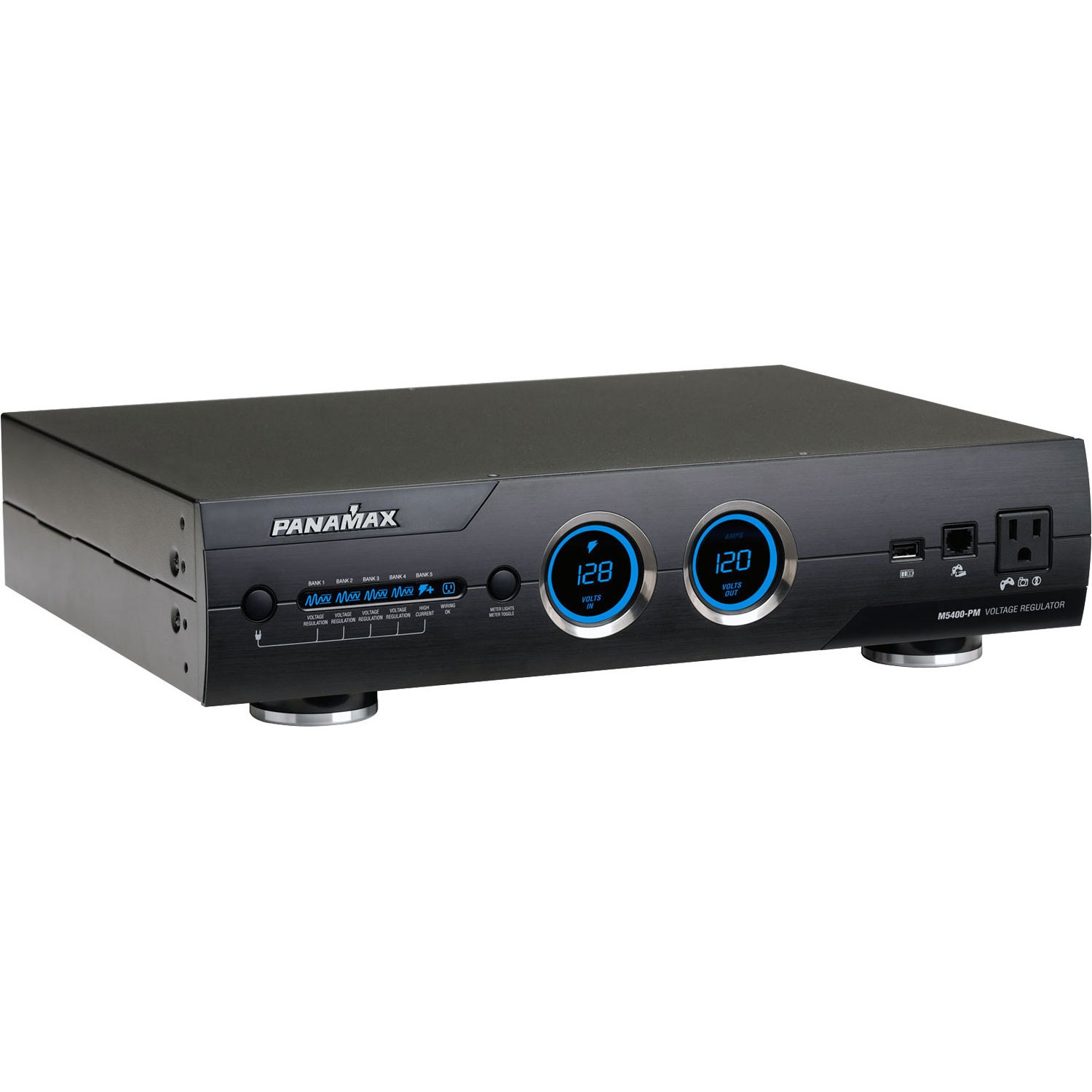

Panamax M5400-PM 11-Outlet Home Theater Power Conditioner

Model: M5400-PM
Web Code: 13368226
Sold and shipped by | 4.6 seller rating (114 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

Panamax M5400-PM Specifications

General

Family PM Series

Line Voltage 120 (Volts)

Number of Outlets 11

Number of Isolated Banks5

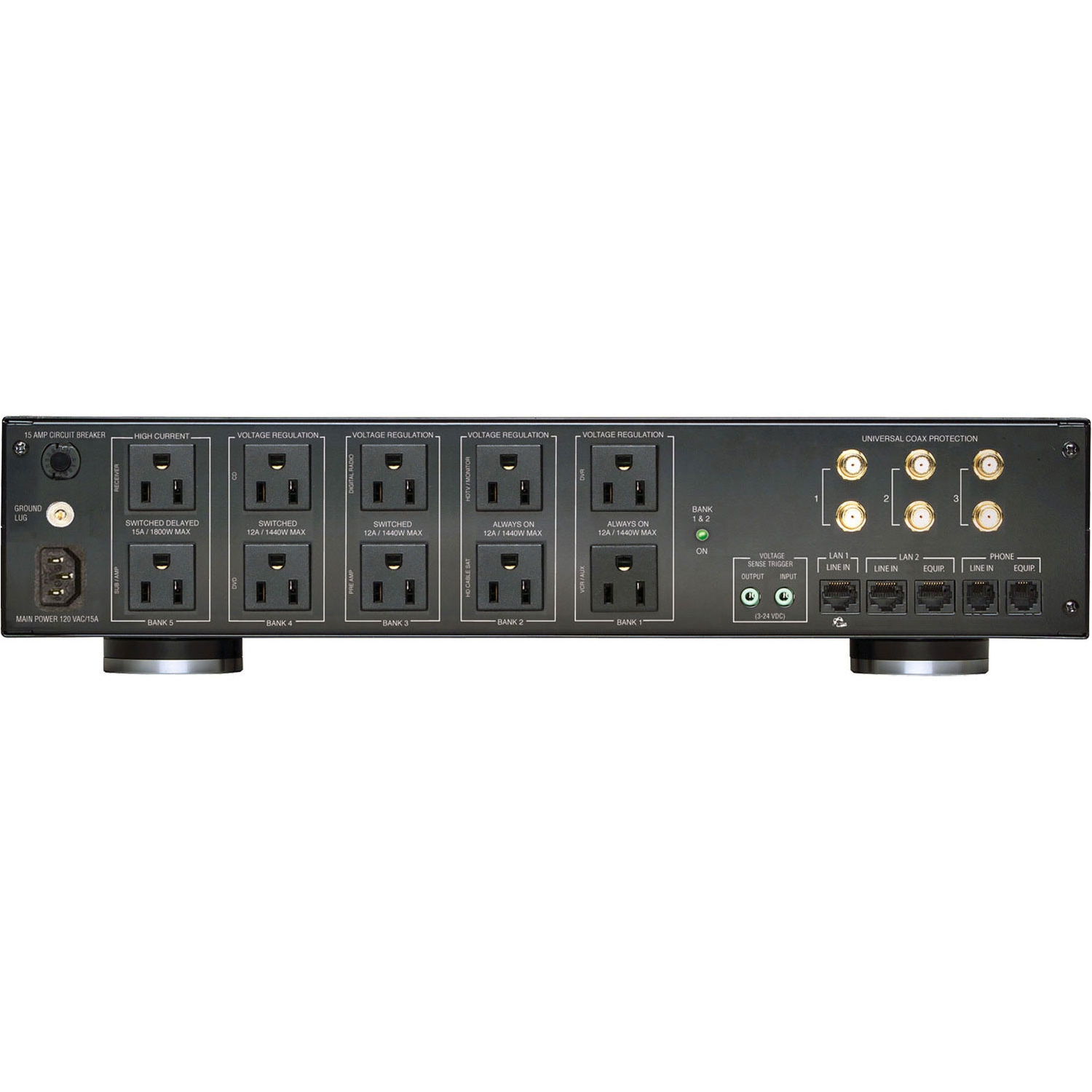

Outlet Descriptions

All 11 outlets voltage regulated, filtered, and surge protected.

Banks 1 and 2 are always on

Bank 3 and 4 are switchable from front panel power button or 12V trigger

Bank 5 outlets are high current and switchable from power button or 12V trigger

Rack Mountable Yes

Rack Ears Included Yes

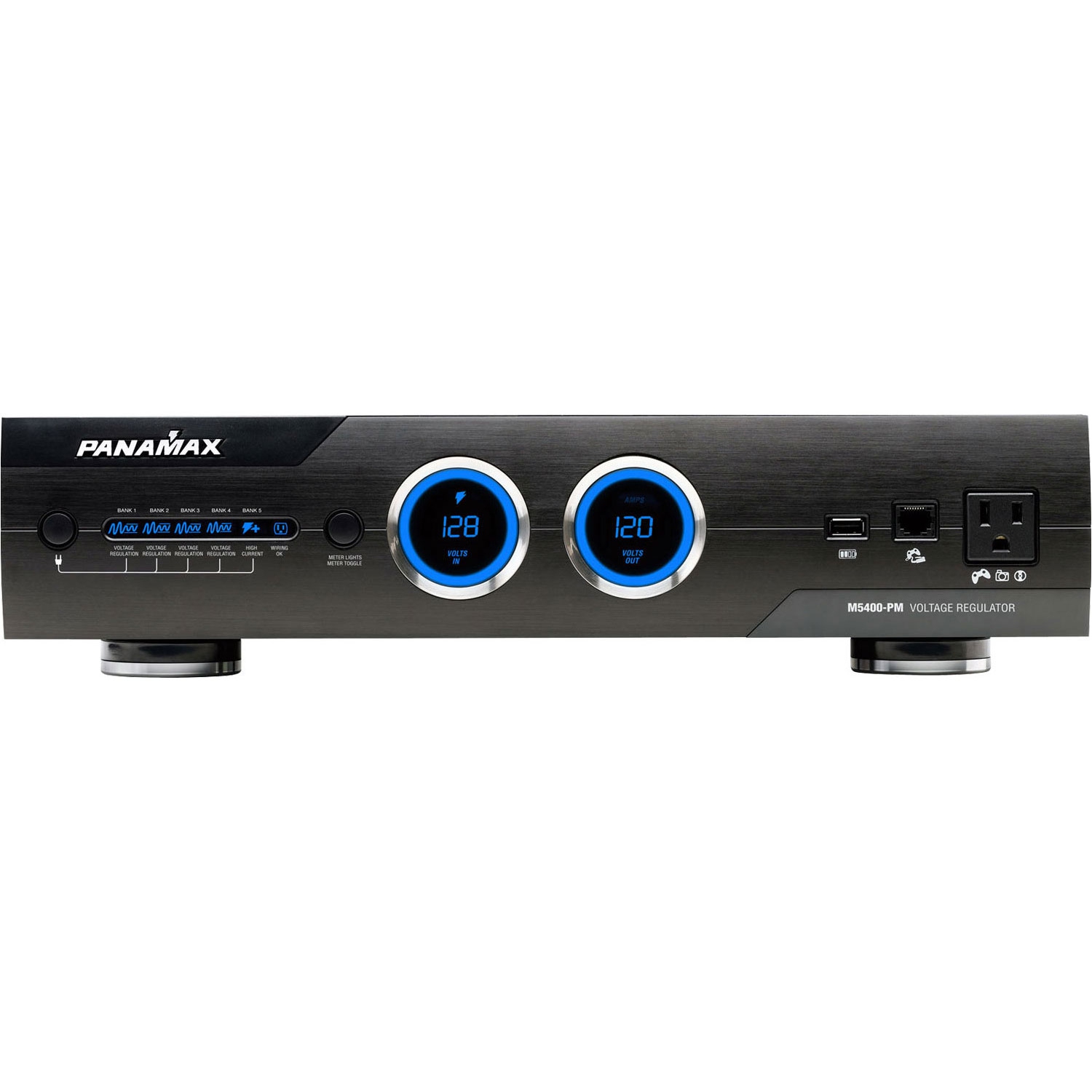

Front Panel Meter(s)1 voltmeter (volts in), 1 voltmeter(volts out)/ammeter combo

Front Media Light(s) No

Control On/Off control of switched outlets through front panel power button or rear panel DC trigger.

Voltage RegulationRegulation capture range:

100VAC to 136VAC

Output voltage range:

120VAC ± 6 VAC

CompliancecCSAus

USB Charging 1 front panel 500mA USB charger. May not recognize all devices. Check manufactures power specifications of USB device.

Low Voltage Trigger 12 V, In/Out

AC Power Cord 10 ft. detachable

Dimensions 17" W x 12.75" D x 3.5" H, (4.1" Including feet)

Weight 20 lbs

AC Protection

AC Protection TechnologyVoltage Regulation

Protect or Disconnect

Automatic Voltage Monitoring

L-N, L-G, N-G Protection Modes

Thermal Fusing

Under-Voltage Shutoff 86VAC ± 6V

Over-Voltage Shutoff 142 VAC ± 8 VAC

Maximum Current Rating 15 (Amps)

Initial Clamping Level 200V Peak

Filtration

Filtration Technology LiFT

Filtration Rating

Banks 1, 2, 3, 4: 80 db (100 KHz - 2 MHz)

Bank 5, High Current Outlets: 60 db (100 KHz - 2 MHz)

Signal Line Protection 2 LAN, 1 Tel, 3 Cable/Satellite

Shipping Info

Length 24 (Inches)

Width 20.1 (Inches)

Height 10.4 (Inches)

Weight 24 (Lbs)

Other Specifications

UL1449 Suppression Rating 330V

Peak Impulse Current 72,000 A

Energy Dissipation 2125 Joules

LAN Circuits -Wires Protected 8-Wires

LAN Circuits - Connectors RJ-45

LAN Circuits - Compatibility 10/100bT

LAN Circuits - Clamping Level 52V

USB Circuit - Power Delivery 500 mA @ 5VDC

USB Circuit - JacksUSB-A

Telco Protection - Wires Protected 2-Wire, Pins 4 & 5

Telco Protection - Suppression ModesMetallic & Longitudinal

Telco Protection - Fuseless/Auto-resetting Yes

Telco Protection - ConnectorsRJ-11

Telco Protection - Clamping Level 260V

Telco Protection - Capacitance 30pf (approx.)

Universal Coax Protection - Shielded Yes

Coax Protection - Insertion Loss< 0.5 dB

Coax Protection - HD 1080 i/p Ready Yes

Coax Protection - Frequency Range 0 MHz - 2.2 GHz

Coax Protection - ConnectionsFemale "F", Gold Plated

Coax Protection - Clamping Level 75V

Coax Protection -Bidirectional Yes

Product Condition
Brand New

Dimensions

Width
20.1 cm
Height
10.4 cm
