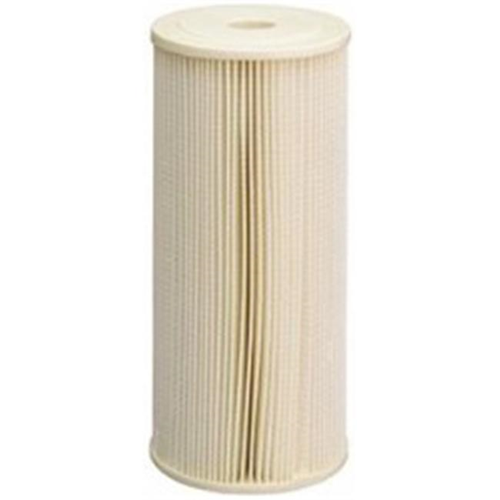

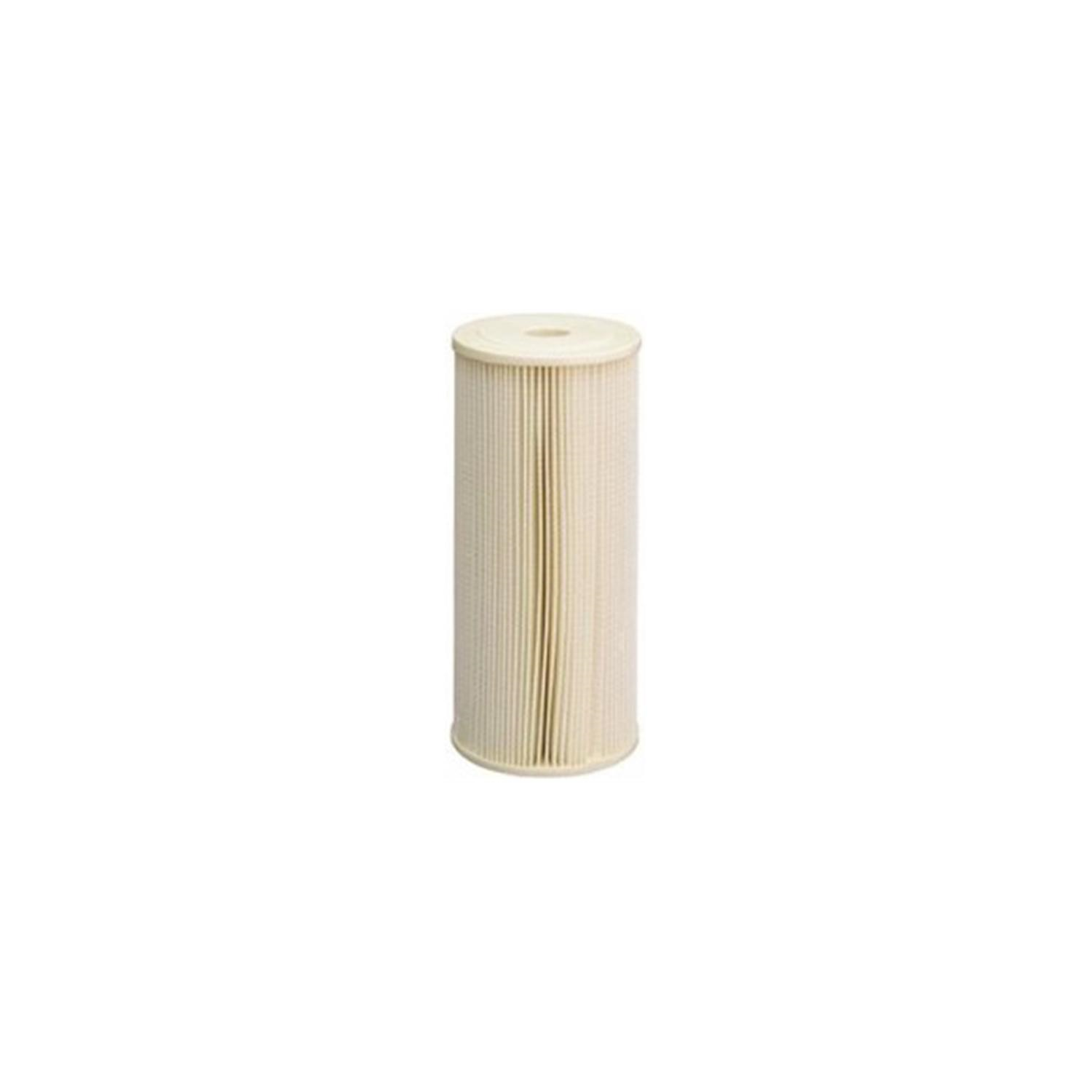

Pentek ECP5-BB Pleated Cellulose Polyester Filter Cartridge, 9-3/4x4-1/2-Inch, 5-Micron

Nominal 5 micron Pentek ECP5-BB Pleated Cellulose Polyester Water Filter Cartridges. Cartridge has a special formulation of resin-impregnated cellulose and polyester fibers. Water filters provide higher wet strength than regular cellulose cartridges. Water filters also provide high flow rates and dirtholding capacity while maintaining extremely low pressure drop. Cartridge has minimal unloading and media migration. Media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat block in this fashion fuses the components together forming a unitized end cap and gasket. The ECP water filter cartridges contain more media surface area than most competitive cartridges. The 10 Big Blue ECP cartridges contain 18 square feet of media. The Pentek ECP5-BB replacement filter cartridge is recommended for chlorinated water supplies. It is not recommended for non-chlorinated water supplies. Cellulose may start to break down if there is bacteria present in well water or other non-chlorinated water supplies. Dimensions: 9-3/4 x 4-1/2 (248 mm x 114 mm). Micron Rating (Nominal): 5 Micron. Temperature Rating: 40F to 125F (4.4C to 51.7C). Initial ?P (psi) Flow Rate (gpm): 1 psi 20 gpm (0.1 bar 76 L/min). Pentek ECP5-BB Sediment Filter Materials of Construction:. Filter Media: Cellulose Polyester. Core: Polypropylene. End Caps: Vinyl Plastisol.
