Pulse Technology Octaver 3 Mode Digital Micro Guitar Effect Pedal True Bypass

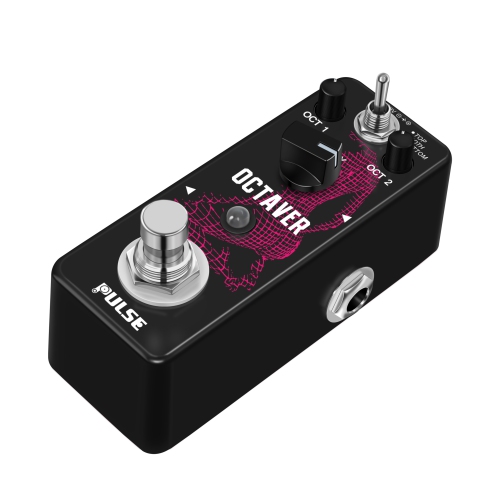

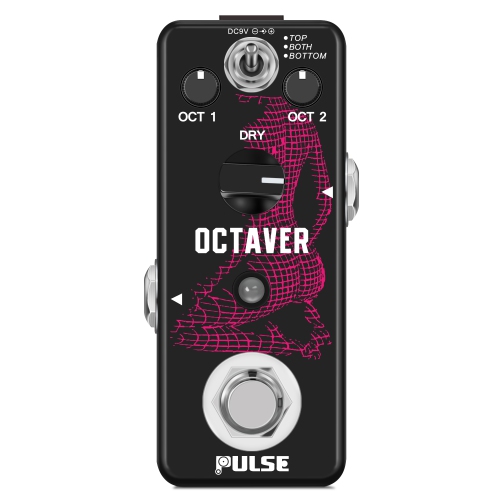

Pulse Technology OCTAVER Poly Octave PT-36

The PT-36 Poly OCTAVER effect pedal is an excellent tracking Octave pedal at great price. It is designed to have a straightforward interface that allows you to adjust the dials to your preference until you hear the complex sounds you are looking for. The toggle switch allows you to shift between three separate modes: Top, Both, and Bottom.

The Pulse PT-36 Poly Octave pedal is fitted with a multi-functioning true bypass foot-switch which engages the pedal, but also allows you to store parameters and create interesting sound layers just by holding down on the foot-switch. This is a big plus for utilizing the pedal on various song passages at your command. an LED status indicator; press down once and this lets you to shift between the original sound and the effect sound. Press down twice and this switches between fixed and non-fixed mode.

OCTAVER CONTROLS:

The Pulse PT-36 has three primary dial controls; Oct 1, Oct 2 and Dry. Oct 1 and Oct 2 are your octaves, so you can blend the original note with a note which is one or two octaves below or above it. The Dry dial controls the overall level or volume of the Dry setting, and when this is blended with Oct 1 and / or Oct 2 you can dial in some pretty majestic sounds, from Funk to Chunk.

Features at a glance:

Precise polyphonic octave effects with no distorted sound

A variety of pitch shiftier effects

Different octave modes Normal mode,Fixed mode

Three modes: TOP. Both. Bottom

Robust, sturdy chassis

Oct 1, Oct 2 and Dry controls allow you to adjust the overall volume and output of each individual control.

Toggle switch to change between three different modes

Can go either an octave down, or one up, or both at the same time

True bypass foot-switch to engage pedal or store parameters

Compact and pedal board friendly

With 44.1k 24bit sampling 32 bit true floating point DSP

True bypass foot-switch to engage pedal or store parameters

Requires 9v DC power supply (not included)

SPECS:

The sturdy and heavy-duty true bypass foot-switch engages the pedal with a smooth action, without effecting the original tone.

Input: 1/4inch Monaural Jack (Impedance: 470K Ohms)

Output: 1/4inch Monaural Jack (Impedance: 100K Ohms)

Power Supply: DC 9V (Plug polarity is Positive on the barrel and negative in the center )

Working Current: 100mA

color: rose Red

Material: Zinc alloy

size: 9.5 * 4.5 * 4.8cm

Package Contents:

1 * Guitar Effect Pedal

1 * Instruction manual)

Note:

Power supply not included.

Please use the 9V power adapter whose polarity is negative center otherwise, the product may not work properly.

Package List:

1 * Effect Pedal

1 * User Manual(English
