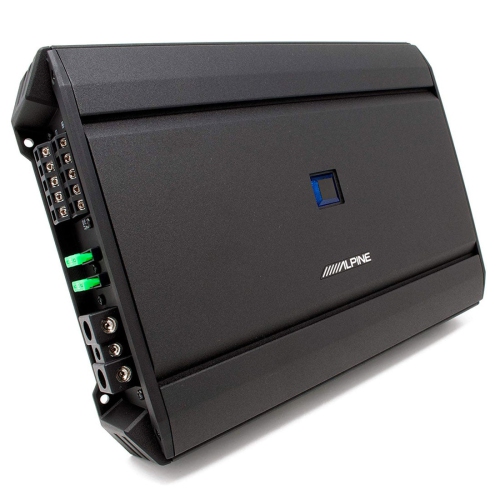

Refurbished(Excellent) -Alpine S-A55V makes it easier than ever to get great sound in your vehicle. This 5-channel powerhouse can put out 40 watts RMS each to four full-range speakers and up to 300 watts RMS to a subwoofer, and still fit into the tight spaces you find in many cars and trucks these days. You can also use this versatile amp in 3-channel mode, driving a pair of high-performance speakers with 120 watts each, while still sending 300 watts to a sub.
Sound Components
Three new S-Series amplifiers join the S-Series family, known for reliable performance and value-oriented products. All three S-Series amps (mono, 4-channel and 5-channel) contain technology currently implemented in R and X-Series models. The S-Series amps feature attractive prices and are designed to perform perfectly with the existing S-Series speakers.
All Digital Design
Compact and Powerful: the new digital amplification circuit allows high power output while keeping a small footprint. Alpine S-A55V measures just 286mm in width x 204mm in length for easy installation in virtually any vehicle.
Thermal Protection
Along with Alpine’s new intelligent amplifier platform, the new S-Series amplifiers feature an improved heat sink and protection circuit design that eliminates thermal shut-down, for dependable music playback.

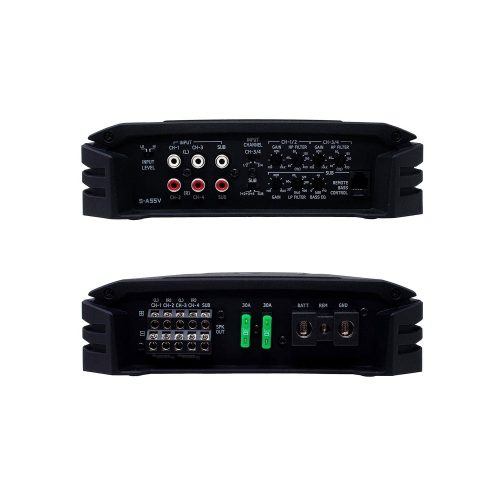

One-sided Cable Terminals
The speaker and power cable terminals are conveniently located on the left side of the amplifier to allow a clean installation. The power cable terminals accept heavy gauge cables.
Low/High-Power Speaker Signal Inputs
The 5-Channel RCA speaker signal inputs accept low and high-power signals. This makes it easy to connect Alpine S-A55V directly to your original car stereo, regardless of your head unit’s power output (RCA connectors with open cable leads are available separatly).
Control Your Subwoofer
You can connect the RUX-KNOB2 remote bass knod (optional available) to the Alpine S-A55V to controll the subwoofer level straight from your dash (applicable only for channel 5 for subwoofer usage).

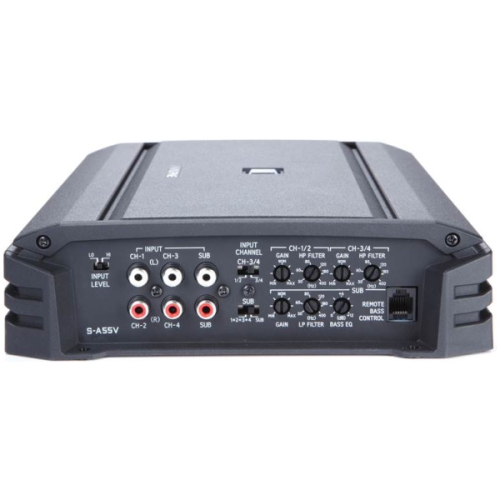

High-Pass / Low-Pass Filter
With this filter switch you can assign the amplification channel (pair) to be used for door speakers or a subwoofer. You can then adjust the cut-off frequency for more precise tuning.------------------------------ -More Info:
optional RUX-KNOB.2 wired remote level control for sub channel
preamp and speaker-level inputs
speaker wire to RCA adapter required for speaker-level input
wiring and hardware not included with amplifier
4-gauge power and ground leads recommended
fuse rating: 30A x 2
dimensions: 13-1/4"W x 2-5/16"H x 8-1/16"D
