Overview

RF Explorer is a handheld digital spectrum analyzer, a very affordable tool for work in all ISM popular frequency bands. It is based on a highly integrated frequency synthesizer which offers high performance, compact size, low consumption and low cost.It has been designed to be used equally well outdoor and indoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.This model comes with a nice Nagoya NA-773 wideband telescopic antenna.

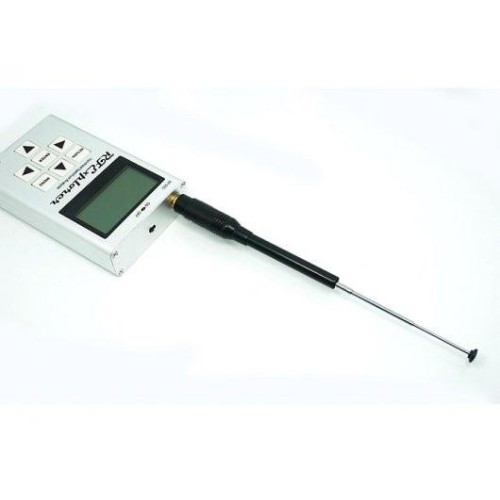

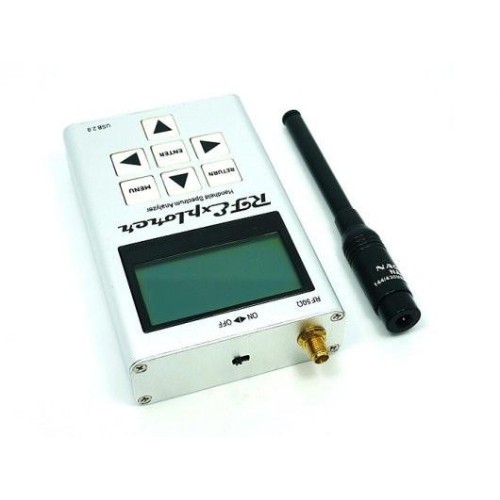

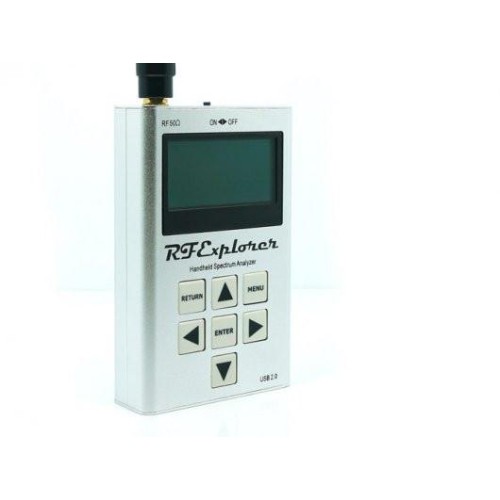

RF Explorer Spectrum Analyzer - WSUB1G

Model: EMR006
Web Code: 11983157
Sold and shipped by | 4.4 seller rating (26 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

Feature:

Pocket size and light weight

Solid aluminum metal case

Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes

Lifetime free firmware upgrades available, open to community requested features

High capacity Lipo for 16hs+ of continuous run, rechargeable by USB

Windows PC client Open Source

Can be extended with internal Expansion Modules for additional band and functionality

Wide band coverage to all popular sub-1Ghz ISM bands, including 315MHz, 433MHz, 868MHzand 915MHz, also including UHF TV, 70cm and 33cm HAM radio, GSM, etc. Any frequency from 240MHzto 960MHzis covered.

Important: Note this unit does not include RF Generator functionality, only Spectrum Analyzer functionality is available

Specification:

Frequency band: 240 - 960 MHz

Frequency span: 112KHz - 100MHz

Graphics LCD 128x64 pixels, great visibility outdoors

PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits

Backlight for great indoor visibility

Standard SMA 50 ohms connector, wideband Nagoya NA-773 telescopic antenna included

Amplitude resolution: 0.5dBm

Dynamic range: -115dBm to 0dBm

Absolute Max input power: +5dBm

Average noise level (typical): -110dBm

Frequency stability and accuracy (typical): +-10ppm

Amplitude stability and accuracy (typical): +-3dBm

Frequency resolution: 1Khz

Resolution bandwidth (RBW): automatic 2.6Khz to 600Khz

Weight: 185g

Size: 113x70x25 mm
