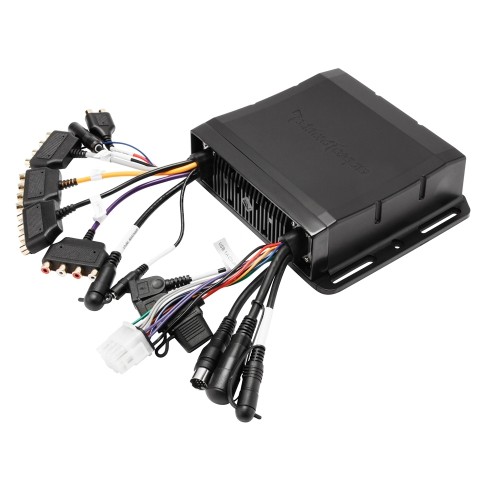

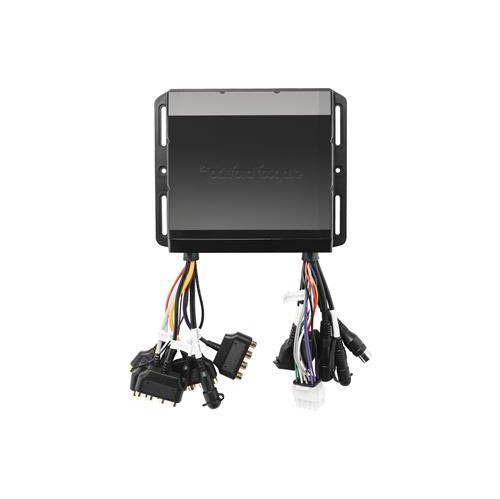

Rockford Fosgate PMX-8BB Punch Marine Hide-Away AM/FM/WP Digital Media Receiver

Global AM/FM/WB Tuner, SiriusXM Ready, Full iOS/Andriod, Made for iPod, Dual USB Input w/ Video Playback, BLUETOOTH avrcp 1.5, 2-Source Zone Control, 4-Zone Volume Control, 6 Channel F/R/S 4V Zone 1&2 Preouts, 2 Channel Zone 3&4 4V Preouts, 7-Band Graphic Equalizer, Punch EQ, A/V Input, Video Output, CAN Ready, EEPROM Non-Volatile Memory,Wired Illumination Control, Steering Wheel Control Ready Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive and display broadcast information Licensed Pandora control (apple direct USB or BT/ android via bluetooth) Made for iPhone apple certified Bluetooth, A2DP only, AVRCP 1.4 Simple secure pairing bluetooth profile for android & iOS Display album art from connected iPhones on the radios display Folder browsing via BT connected iPhones 4 sets (Zones) RCA out; 4 active with 4 channels per zone (2 full range + 2 sub) 4V signal output Internal power amplifier 4x50w 2 ohm stable Selectable high pass and low pass crossover points for each independent zone Selectable crossover slopes of 12dB or 24 dB for each independant zone Dedicated DSP audio processors for each zone with independent 7 Band EQ+Punch EQ Adjustable input gain for each source Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed Integrated voltage gauge w/ low voltage alert Wired remote ready (up to 3 remotes) Rear aux-in (L/R) External steering wheel remote control interface compatible External trigger input to activate reverse camera mode Wired illumination control Optional CAN-BUS transceiver ready (PMX-CAN) Rear USB with 1a charging (supports album art on USB connected iPhones) Epoxy coated circuit board Upgradeable Firmware and Bluetooth Software via USB IPX5 Water Intrusion Rating: Water projected from nozzles from any direction shall have no harmful effects. *Antenna not included Compatible with a Multi-Funtion Display using NMEA2K entertainment standard For connection to a Multi-Funtion Display, please see our MFD Compatibility Chart. FM TUNER Frequency Range87.5 MHz - 107.9 MHz RCA Output Voltage4V Operating Voltage10.5V - 16V Fuse Rating15A Dimensions (HxWxD)H4.25" x W8.3" x D2.2" (108mm x 211mm x 56mm) USB Capacity32Gb max 999 Folders max 999 Songs max MEDIA PLAYER Audio Format CompatibilityMP3, WMA Clock (Yes/No)No Speaker Outputs (Yes/No)Yes Device TypeDigital-Media Black Box Pandora® Internet Radio (Yes/No)Yes WB TUNER Frequency Range162.40 - 162.55 (US & Canada) TUNER Number Of Presets18 FM / 12 AM / 6 WB USB Version2.0 AUX Input (Yes/No)Yes USB Charging (Yes/No)Yes Steering Wheel Control Ready (Yes/No)Yes Apple®/Android™ Compatible (Yes/No)Yes Multi-Zone/Multi-Source (Yes/No)Yes AM TUNER Frequency Range530 kHz - 1710 kHz RCA Output Impedance500Ω Speaker Impedance2-Ohms Power OutputCEA-2006 Guidelines CEA-2006 Power Rating 25W x 4 @ 4Ω RMS 50W x 4 @ 2Ω Peak ≤1.0% THD+N TUNERN/A Made for iPod ModelsiPod Touch (5th generation) iPod Touch (4th generation) iPod Nano (7th generation) iPod Nano (6th generation) Android CompatibilityBluetooth® Only SPEAKER OUTPUTSN/A RCA OUTPUTSN/A Display SizeN/A SiriusXM-Ready® (Yes/No)Yes Requires SXV300 Bluetooth® (Yes/No)Yes 3.0+EDR, A2DP 1.3 USB Output Current1A FEATURESN/A MEDIA PLAYERN/A GENERALN/A Frequency Response20 Hz - 20 kHz Made for iPhone ModelsiPhone 7 Plus iPhone 7 iPhone 6s Plus iPhone 6s iPhone 6 Plus iPhone 6 iPhone 5S iPhone 5C iPhone 5 iPhone 4S iPhone 4 iPhone 3GS Compatible RemotesPMX-8DH (25-ft. max cable to PMX-8BB) PMX-1R PMX-0R (3 Remote Limit, 100 ft Total Wired Distance) NOTE: When using a PMX-8DH as your main display, it will not work with an extension cable longer than 25-feet in length. The PMX-8DH already comes with a 10 foot cable (PMX10C) in the box. If you require a longer extension cable, you may use the PMX16C or PMC25C.
