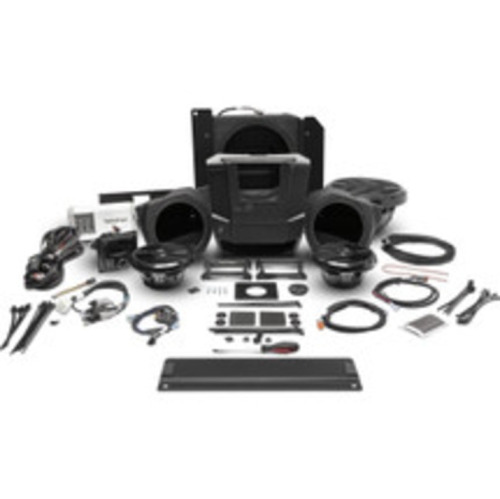

About: Rockford Fosgate RNGR-STAGE3 Stage 3 Audio Upgrade Kit for Select 2015-18 Polaris Rangers
Building on the Stage 2 kit, we add our amplifier mounting and installation kit, a TM400X4ad 400-watt Element Ready amplifier and under seat subwoofer enclosure. This complete system gets you rocking out in no time whether you're working the fields or running the trails with your friends.
Features:
System includes digital marine receiver, two 6-1/2" speakers, a 4-channel amp, and a 10" subwoofer
PMX-2: Compact AM/FM/WB Digital Media Receiver 2.7" Display
Element Ready™ to withstand the harsh outdoor environment
Direct connect wiring harnesses for RANGER models
Enclosures for speakers and/or subwoofer integrate with no loss of passenger space
RFRNGR-PMXDK: Installation Kit for Dash
RM1652B: Prime 6.5" Full Range Speakers - Black (Pair)
RFRNGR-FSE: 6.5" Front Lower Speaker Enclosure (Pair)
RM110D2B: Prime 10" Dual 2-Ohm Subwoofer Black
RFRNGR-FWE: 10" Front Subwoofer Enclosure
TM400X4ad: Power Marine 400 Watt Class-ad 4-Channel Amplifier
RFRNGR-K8: 2-Seat or 4-Seat Amp Wire Kit
*Antenna not included
Rockford Fosgate PMX-2 Marine Digital Media Receiver (does not play CDs):
Built-in amplifier (20 watts RMS/50 peak x 4 channels)
Works with Apple and Android smartphones
Global AM/FM/Weather tuner
2.7" color display
Rockford Fosgate RM1652B 2-Way Marine Speakers:
Power handling up to 75 watts RMS (105 watts peak)
Salt-, fog-, and UV-resistant Santoprene rubber surround
Integrated 1" volcano dome tweeter
Rockford Fosgate RM110D2B 10" Marine Subwoofer:
Dual 2-ohm voice coils
Power handling: 200 watts RMS (400 watts peak)
Rugged, UV-stable injection-molded plastic construction
Durable Santoprene rubber surround
Rockford Fosgate Power Series TM400X4ad 4-Channel Amplifier:
100 watts RMS x 4 at 4 ohms (400 watts peak)
100 watts x 2 and 200 watts x 1 in 3-channel mode
variable low- and high-pass filters (50-250 Hz at 12 dB/octave)
conformal-coated circuit board and marine-grade stainless steel hardware
Vehicle Application:
Polaris Ranger
CREW 570-4 (1): 2015 - 2017
CREW 570-6 (1): 2015 - 2017
CREW XP 900 (1): 2015 - 2017
CREW XP 1000 EPS (1): 2017
CREW XP 1000 EPS (2): 2018
CREW DIESEL (1): 2015 - 2017
FULL-SIZE XP 900 (1): 2015 - 2017
FULL-SIZE XP 1000 EPS (1): 2017
FULL-SIZE DIESEL (1): 2015 - 2017
FULL-SIZE DIESEL HST DELUXE (1): 2015 - 2017
FULL-SIZE RXR (1): 2015 - 2017
FULL-SIZE 570 (1): 2015 - 2017
**(1) Compatible with Polaris heater & defrost option
**(2) This model uses the Gen-1 dash from 2015
What's in the Box:
PMX-2:
Marine digital media receiver
Trim-ring
Mounting plate
Mounting bracket
Wiring harness
Backstrap
4 Machine screws
4 Hex-nuts
Installation/Operation booklet
RFRNGR-PMXDK:
Trim-panel
PMX-2 mounting bracket
PMX-0 mounting bracket
PMX-2 vehicle harness
PMX-0 vehicle harness
Power/ground harness
Back plate
Rubber grommet
3 Wire-ties
8 Screws
4 Butt-connectors
Installation Instructions
RM1652B:
Two 2-way marine speakers (with fixed grilles)
Eight 1-1/4" Stainless steel Allen head screws
3mm Allen head bit
8 Speed clips
Installation/Operation manual
RFRNGR-FSE:
2 Empty speaker pods
Two 45" speaker harnesses
2 Bolts
4 Screws
4 Washers
2 Nuts
Allen screwdriver
2 Self-adhesive foam pads
6 Wire-ties
Installation Instructions
TM400X4AD:
4-Channel moto-marine amplifier
Power/ground/turn-on plug (installed)
Two 8" Speaker output harnesses (bare wire to 4-pin Molex)
Two 14" Input harnesses (2 RCA to 4-pin Molex)
Setup Disc (CD)
Amplifier Quick Setup
Certificate of Performance Verification
RM110D2B:
10" Woofer
Grille
8 Screws
Installation & Operation booklet
RFNGR-FWE:
Subwoofer enclosure
11.5' Harness
14" Red wire
Mounting bracket
4 Strips of foam tape
8 Wire-ties
3 Cable-clamps
Installation & Operation booklet
RFRNGR-K8:
Wiring harness (inline 60A Maxi-fuse)
Mounting plate
4 Screws
9 Wire-ties
3 Cable-clamps
Installation & Operation booklet
