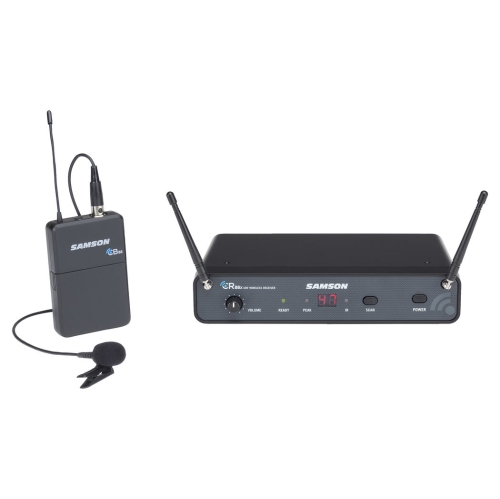

Ideal for instructors, presenters, worship leaders, and performers, the Samson Concert 88x Wireless Lavalier Microphone System with LM5 Lav offers straightforward operation and quality performance. It features a bodypack transmitter, the LM5 lavalier mic, and a tabletop true-diversity receiver with XLR and 1/4" outputs and a rackmount kit.
With 100 available frequencies, simple syncing via IR, and one-touch automatic frequency scanning, you can quickly get started and find a strong channel. Two AA batteries (available separately) will power the microphone for up to eight hours, and the transmitter's power switch doubles as a handy mute function. If you move beyond the system's 300' line-of-sight operating range, the integrated tone key and auto mute functions mitigate transmission of undesired noise.
User-Friendly Operation
The Concert 88x system is designed for easy setup and reliable operation. Its true-diversity design minimizes dropouts while tone key and auto mute functions prevent unwanted noise when the transmitter is off or out of range. By operating from 470 to 494 MHz in the UHF spectrum, it avoids interference from Bluetooth and Wi-Fi signals.
Bodypack Transmitter with Lavalier Microphone

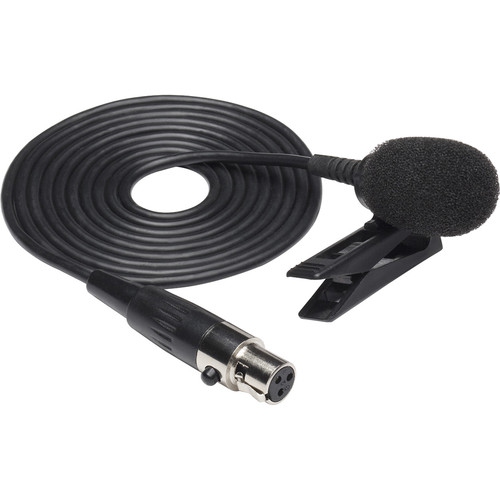

The CB88 bodypack transmitter connects to the included LM5 lavalier microphone, which clips discreetly to clothingperfect for presenters and performers in need of a hands-free audio solution.
The mic features an omnidirectional polar pattern for consistent audio levels even when the talent turns away from the microphone.
Two AA batteries (available separately) can power the transmitter for up to eight hours of operating time. Use the power switch to mute the mic between performances or turn it off for battery conservation.
Beneath the battery cover, you'll find a plastic screwdriver for adjusting the transmitter's input sensitivity. Generally avoid the maximum gain setting as it can cause distortion when the mic is used on loud sources.
CR88x Tabletop Receiver
The tabletop receiver includes a rackmount kit for easy installation in an equipment rack or road case. Its balanced XLR and unbalanced 1/4" outputs enable proper hookup to mixers, audio recorders, and PA systems.
System Features
100 operating channels across 25 MHz bandwidth
0Up to eight systems can be used simultaneously per frequency band (region dependent)
300' operating range (line of sight)
One-touch automatic frequency scan finds the best operating channel
Two-digit LED display on receiver
Infrared link locks the receiver and transmitter to the same channel
Details
System
* Wireless TransmissionAnalog UHF
* Number of RF Channels: 100
* Included Transmitters: 1 x Bodypack with Microphone
* Diversity: True Diversity
* RF Frequency Band -K: 470 to 494 MHz
* RF Bandwidth: Up to 25 MHz
* RF Channel Scanning: Auto-Scan
* Max Operating Range: 300' / 91.4 m (Line of Sight)
* Max Systems per Setup:8
* Dynamic Range: greater than 100 dBA
* Encryption: None
* Pilot Tone: 35 kHz
Receiver
* Form Factor: Tabletop
* Mounting Options Rackmount, Tabletop (with Included Hardware)
* Rackmount Size: 1 RU (1/2 Rack)
* Antenna: 2 x 1/4 Wave External, Fixed (Front-Mount)
* Number of Audio Channels: 1
* Audio I/O: 1 x XLR 3-Pin Male Balanced Output, 1 x 1/4" TS Female Unbalanced Output
* Audio Output Level: XLR Output - +9 dBu, 1/4" Output- +14 dBu
* Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
* Impedance: XLR Output - 240 Ohms, 1/4" Output - 810 Ohms
* Power Requirements: AC/DC Power Adapter
* AC/DC Power Adapter: 15 VDC at 200 mA, Center-Positive (Included)
* Display & Indicators: 1 x LCD (Channel), 1 x LED (Data Transmission), 1 x LED (Clip), 1 x LED (Sync)
* Operating Temperature: 14 to 140F / -10 to 60C
Transmitter
* Form Factor: Bodypack
* RF Output Power: 10 mW (EIRP)
* Audio I/O: 1 x TA3/Mini XLR 3-Pin Male Input
* Pad: None
* Muting: Off/On Switch
* Auto-Level Control: No
* Gain Range: Up to 38 dB
* Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
* Sync Method: IR
* Antenna: 1 x 1/4 Wave Flexible Whip, Fixed
* Power Requirements: Battery
* Battery Type:2 x AA (Not Included)
* Approx. Battery Life: 8 Hours (Alkaline)
* USB/Lightning Connectivity: None
* Display & Indicators: 1 x LED (Battery Status, Mute, Sync)
Microphone
* Form Factor: Lavalier
* Color: Black
* Sound Field: Mono
* Operating Principle: Pressure Gradient
* Capsule: Electret Condenser
* Polar Pattern: Omnidirectional
* Output Connectors: 1 x TA3/Mini XLR 3-Pin Female (Lockable)
