GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. Every aspect of its operation is managed automatically and with total reliability, allowing you to focus on your performance. With new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio. Featuring smart rechargeability with up to 12 hours of runtime (improved from prior generation GLX-D), the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities.

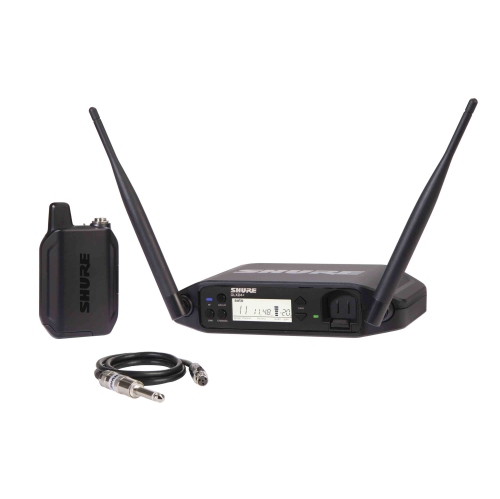

GLXD14+ DIGITAL WIRELESS BODYPACK SYSTEM
The new GLX-D+ Dual Band Wireless Bodypack System features the WA302 guitar cable and the GLXD4+ tabletop receiver for crystal-clear wireless instrument use.
Features
* New Dual Band technology provides reliable and consistent performance in 2.4 and 5.8GHz
* Automatic Frequency Management for reliable, dropout-free audio
* Smart Rechargeability using Lithium-Ion SB904 batteries with up to 12 Hours Runtime
* Integrated charging port on receiver front
* Accurate Battery Metering in hours/minutes on display
* Up to 8000 Hours of regular use per SB904 battery (comparable up to 2000 alkaline batteries!)
What's Included
1 - Tabletop Receiver
1 - Bodypack Transmitter
1 - Power Supply
1 - SB904 Li-Ion Battery
1 - Carrying Case

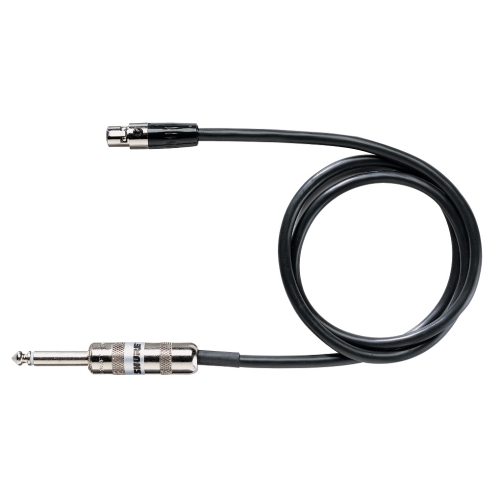

1 - WA302 Instrument Cable TA4F to 1/4"
Specifications
GLXD4+
Tuning Bandwidth Z3: 2400-2483.5 MHz and 5725-5850 MHz
Transmit Mode: Shure proprietary digital
RF Output Power: 10 mW E.I.R.P. maximum
Operating Temperature Range: 0°C (32°F) to 50°C (122°F)
Audio Frequency Response: 20 Hz 20 kHz
Dynamic Range: 122 dB, A-weighted
RF Sensitivity: -88 dBm, typical
Total Harmonic Distortion: 0.02%, typical
Maximum Input Level: -20 dBm
Channel Count: Up to 4 typical, 8 optimal
Power Requirements: 14.5 V 17 V, 600 mA
Dimensions (Antennas Folded): 182.82mm x 121.97mm x 40.3mm (7.2 x 4.8 x 1.6)
Weight: 310g (10.9 oz)
Housing: PC/ABS
Gain Adjustment Range: -20 to 40 dB, 1 dB increments
Phantom Power Protection: Yes
GLXD1+
Power Requirements: SB904 battery
Battery Type: Rechargeable Li-Ion
Battery Life: Up to 11.5 hours
Dimensions: 115mm x 66.94mm x 28.51mm (4.5 x 2.6 x 1.1)
Weight: 153.1g (5.4 oz), without battery
Housing: Aluminum alloy, ABS plastic
Input Impedance: 900 k
TX INPUT: Connector: 4-pin male mini connector (TA4M)
Maximum Input Level: +8.4 dBV (7.5 Vp-p)
