The KSM141 is a small diaphragm end-addressed condenser microphone with a rotating collar allowing easy switching between a highly consistent cardioid or true omnidirectional polar pattern for smooth and extremely focused sound reproduction. It features extended frequency response, pad for handling SPLs, a gold-layered Mylar diaphragm, and a subsonic filter for low frequency rumble.
Designed for studio use, yet rugged enough for live applications, the KSM141 can withstand extremely high sound pressure levels (SPL). Its low self-noise and extended frequency response make it ideal for recording musical instruments.
Includes:
- KSM141 Microphone (1)

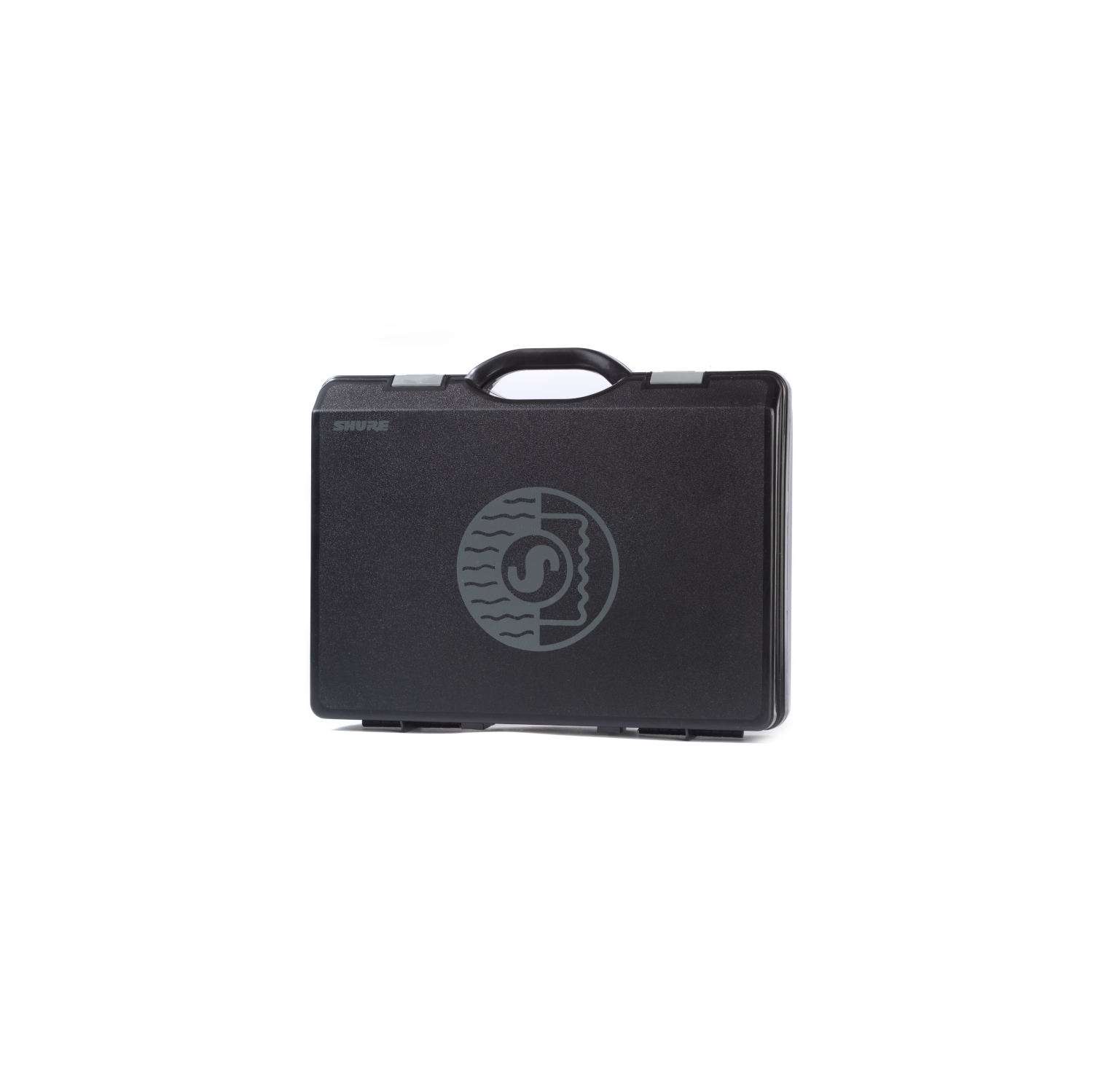

- A100C Case (1)
- A100WS Windscreen (1)
- A57F Stand Adapter (1)
Features:
* A mechanical polar pattern switch for highly consistent cardioid and true omnidirectional polar patterns. Provides flexibility in a wide variety of recording applications
* Ultra-thin, 2.5 micron, 24 karat gold-layered, low mass Mylar diaphragm for superior transient response
* Class A, discrete, transformerless preamplifier for transparency, extremely fast transient response, no crossover distortion, and minimal harmonic and intermodulation distortion
* Premium electronic components, including gold-plated internal and external connectors
* Subsonic filter eliminates low frequency rumble (less than 17 Hz) caused by mechanical vibration
* Three-position switchable pad (0 dB, 15 dB, and 25 dB) for handling extremely high sound pressure levels (SPLs)
* Three-position switchable low-frequency filter to reduce background noise and counteract proximity effect
Performance Characteristics
* Extended frequency response
* Low self-noise
* Exceptional reproduction of low-frequency sounds
* Can withstand high sound pressure levels (SPL)
* High output level
* No crossover distortion
* Uniform polar response
* Superior common mode rejection and suppression of radio frequency interference
Applications
Acoustic instruments - such as piano, guitar, drums, percussion, strings
Wind instruments - brass and woodwind
Low frequency instruments - such as double bass, electric bass, kick drum
Overhead miking - drums or percussion
Ensembles - choral or orchestral
Room ambiance pick-up - guitar amplifier or drums
Specifications:
Cartridge Type: Electret Condenser
Polar Pattern: Cardioid, Omnidirectional (selectable)
Frequency Response: 20 to 20,000 Hz
Output Impedance: 150
Sensitivity: 37 dBV/Pa [1] (14.1 mV)
Self Noise: 14 dB SPL-A
Attenuator Switch: 0, -15, -25 dB
Low-Frequency Filter Switch: Flat, 6 dB/octave below 115 Hz, or 18 dB/octave below 80 Hz
