Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, its the most accessible way to own the stage.

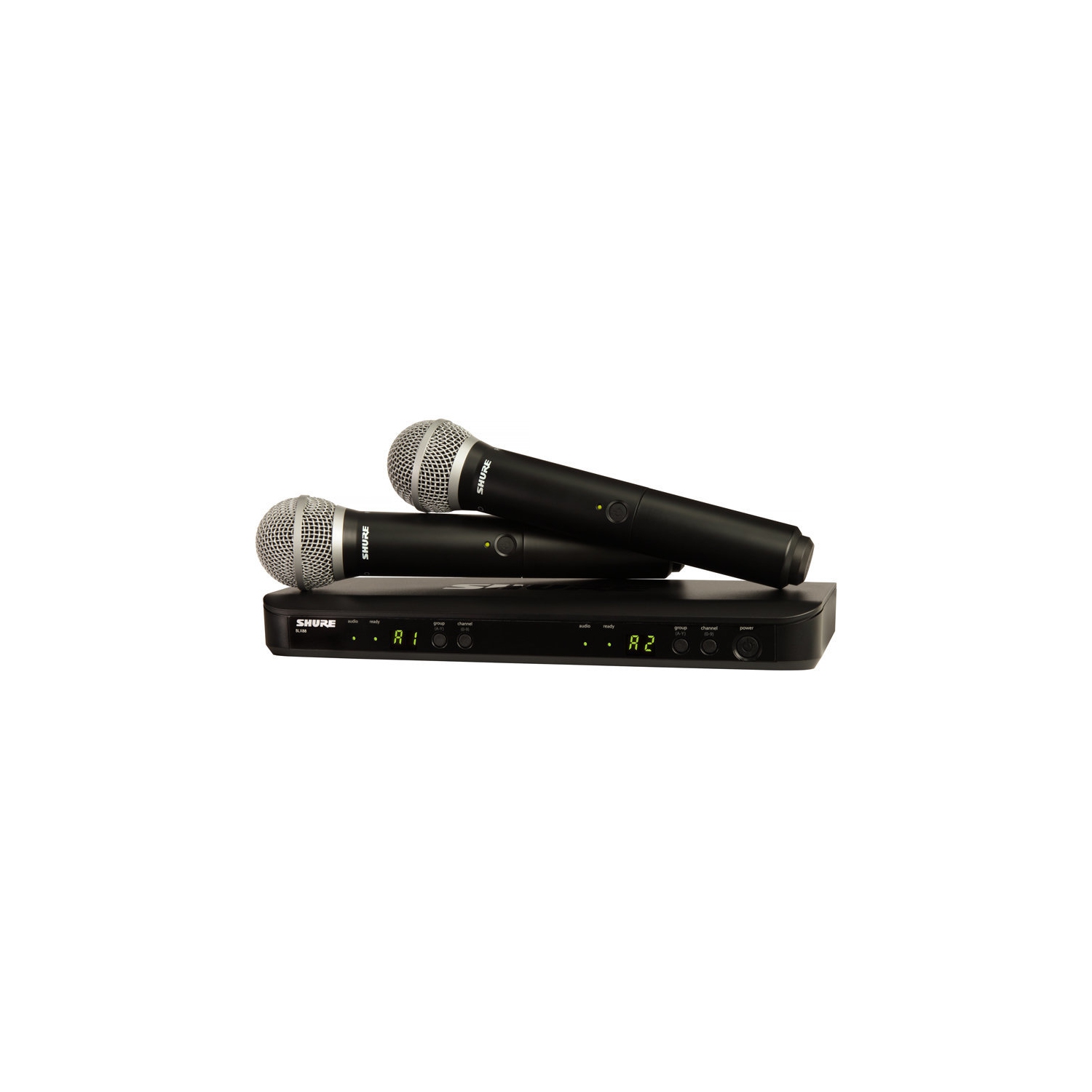

This 2-channel system includes the BLX88 dual-channel receiver, 2x BLX2/PG58 handheld transmitters, power supply, 2x microphone clips, and user guide.
PG58/BLX2 Handheld Transmitter
Compatible with Shure microphones trusted by musicians for decades, the BLX2 transmits wireless audio with professional clarity and reliability. Provides up to 14 hours of battery life and operates up to 300 feet (100 m) with line-of-sight. The PG58 is a professional-quality microphone capsule for lead and backup vocal performance applications.

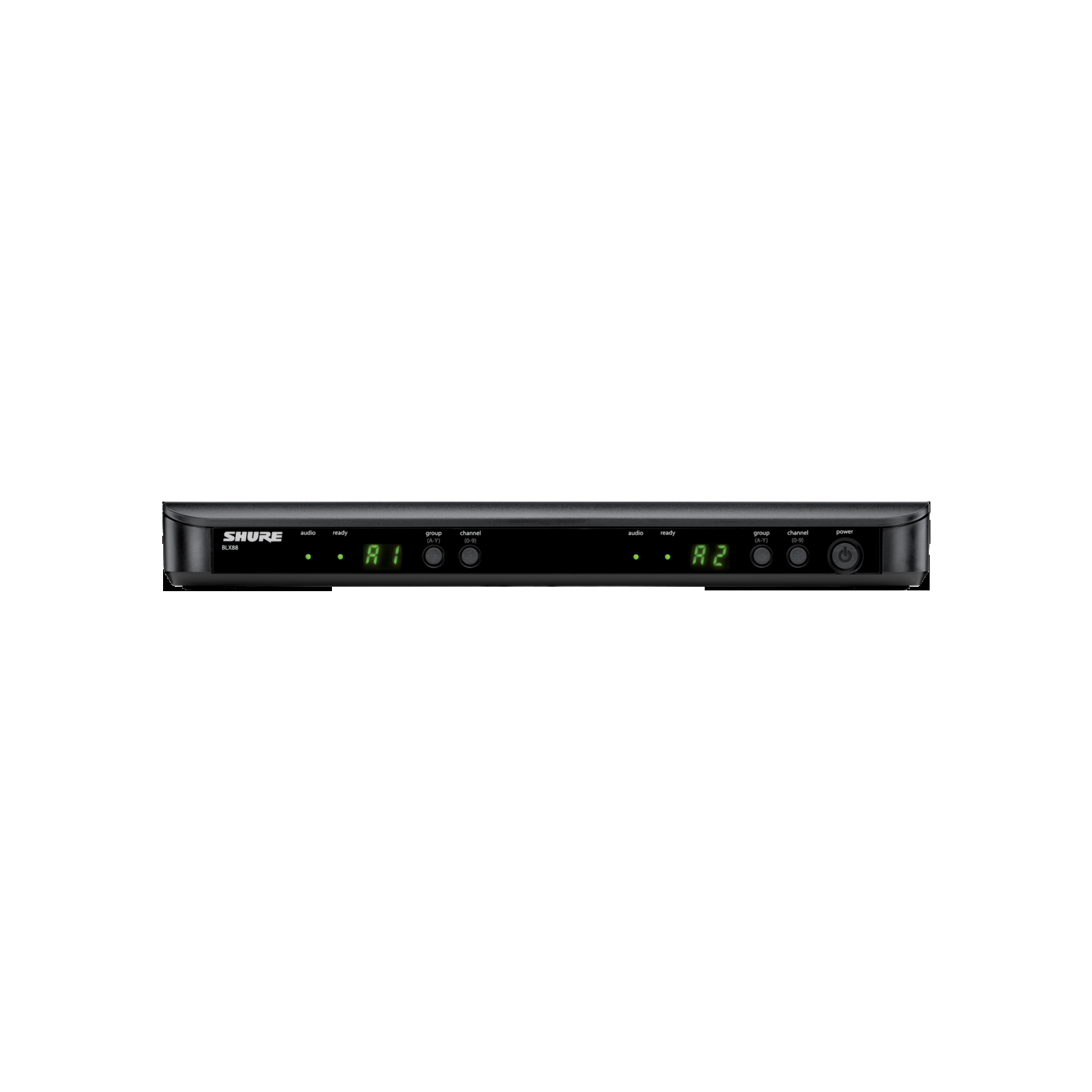

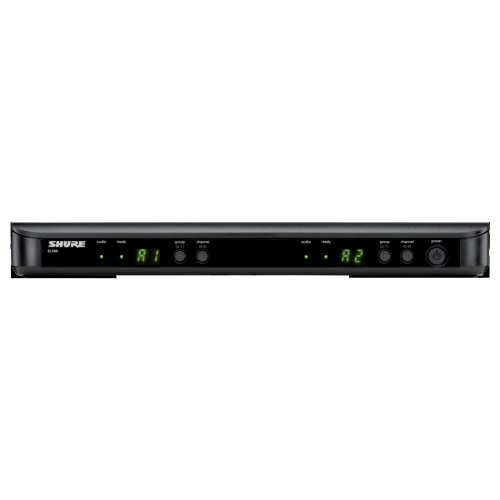

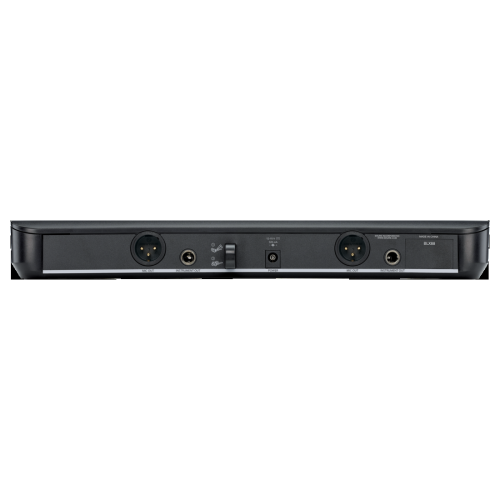

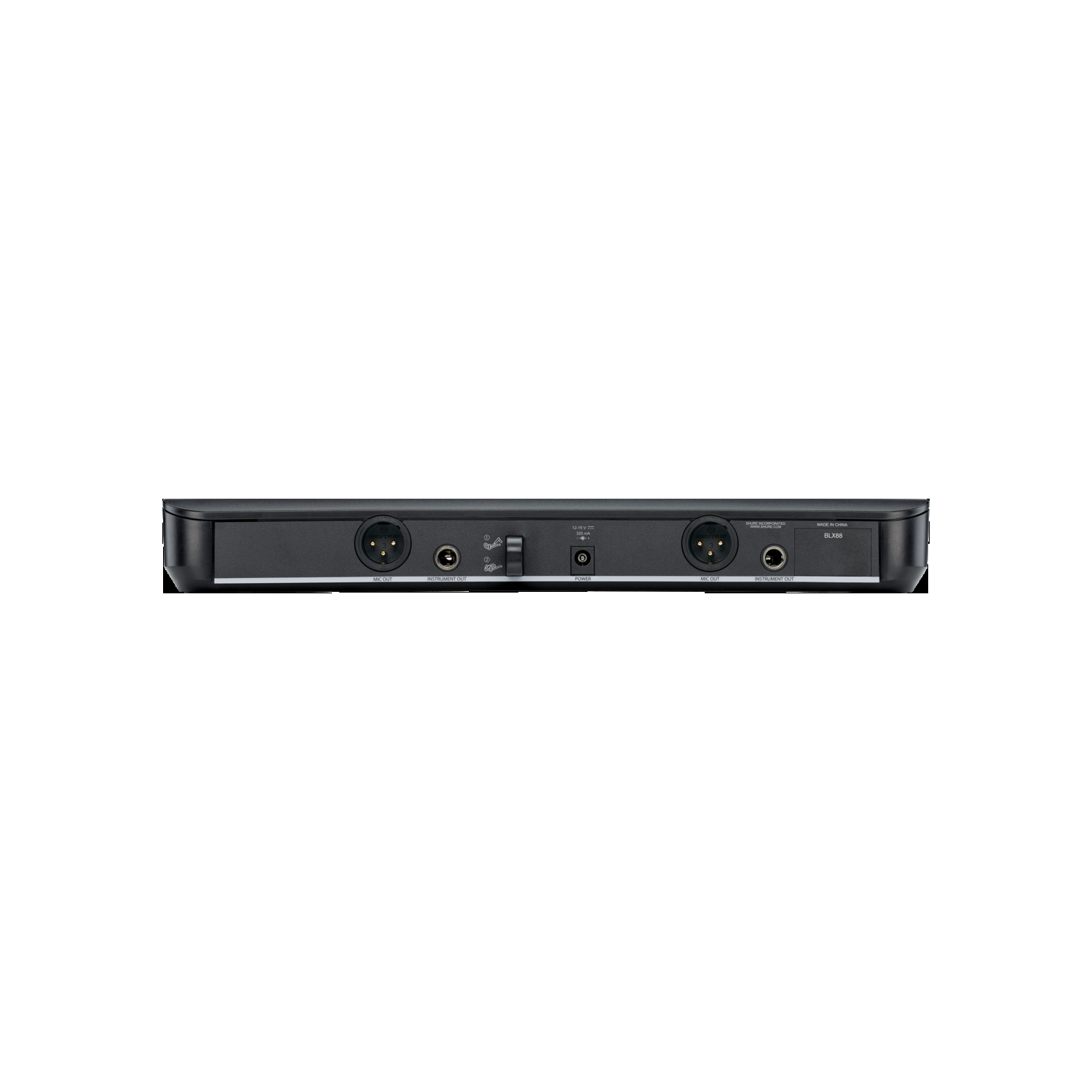

BLX88 Dual Wireless Receiver
The durable BLX88 offers simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. For use with BLX Wireless Systems. Its front-panel dual-color LED status indicator displays green for normal levels and red when clipping for fast metering. It has two XLR outputs in additional to two instrument-level 1/4" outputs.
Features
* Up to 12 compatible systems per frequency band
* One-touch QuickScan frequency selection quickly locates the best frequency
* 1/4" and XLR audio outputs
* Up to 300 ft (91 m) operating range for total wireless freedom
Specifications
BLX2 Handheld Transmitter
Audio Input Level gain:
* 0dB: -20 dBV maximum
* -10dB: -10 dBV maximum
Gain Adjustment Range: 10 dB
RF Transmitter Output: 10 mW, typical varies by region
Dimensions: 224 mm X 53 mm dia. (8 7/8 X 2 1/8 in.)
Weight: 218 g (7.7 oz.) (without batteries)
Power Requirement: 2 LR6 AA batteries, 1.5 V, alkaline
Battery Life: up to 14 hours (alkaline)
BLX88 Dual Channel Wireless Receiver
Output Impedance: XLR connector: 200 ohm, 6.35 mm (1/4") connector: 50 ohm
Audio Output Level (Ref. 33 kHz deviation with 1 kHz tone): XLR connector: -27 dBV (into 100k ohm load), 6.35 mm (1/4") connector: -13 dBV (into 100k ohm load)
RF Sensitivity: -105 dBm for 12 dB SINAD, typical
Image Rejection: > 50 dB, typical
Dimensions: 388mm x 116mm x 40mm / 15.3" x 4.6" x 1.6"
Weight: 429g (15.1 oz.)
Power Requirements: 12 to 15 V DC @ 320 mA, supplied by external power supply (tip positive)
Available Frequency Bands:
BLX - H9 (512-542 MHz)
BLX - H10 (542-572 MHz)
BLX - H11 (572-596 MHz)
BLX - J11 (596-616 MHz)
