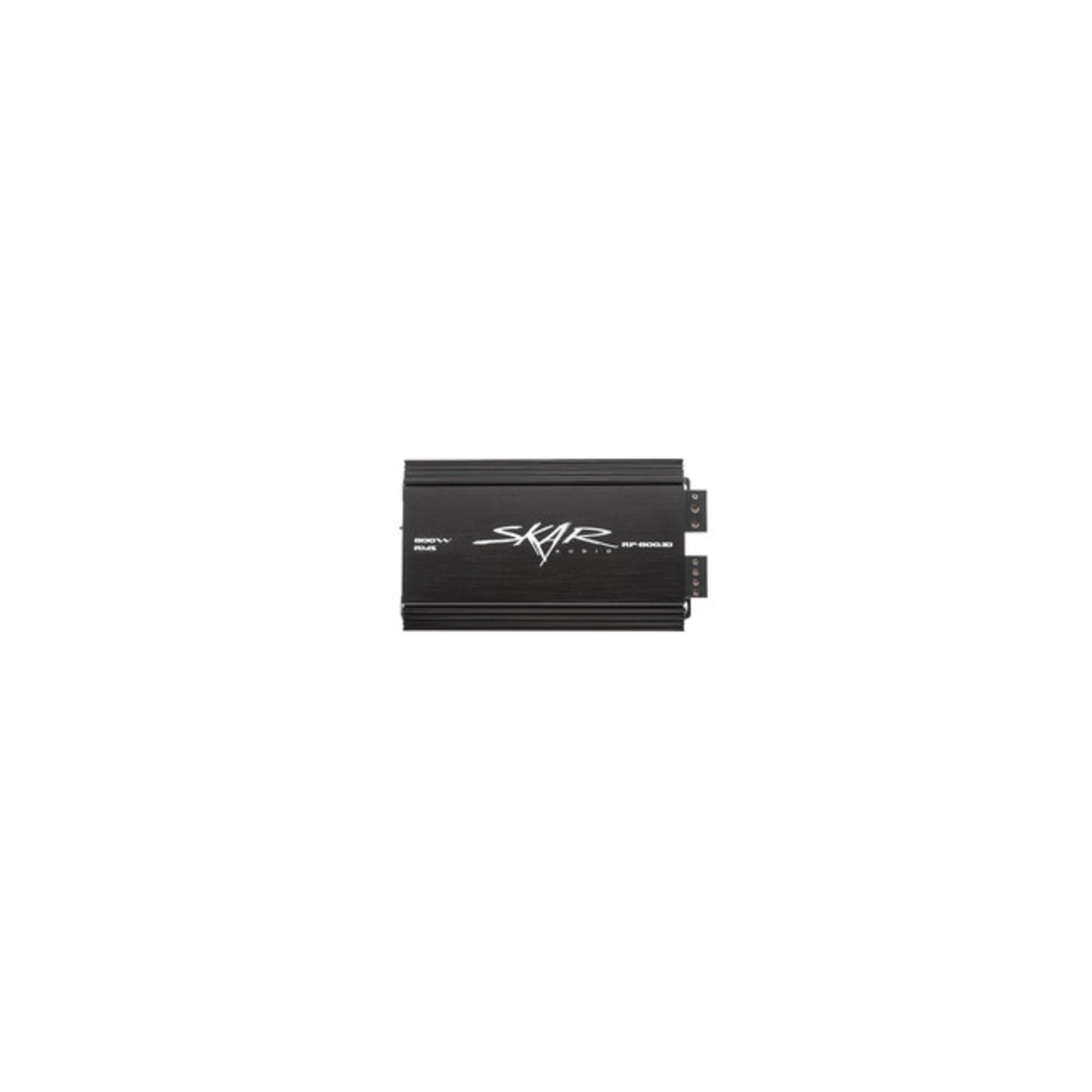

Skar Audio RP-800.1D 800 Watt RMS Monoblock Car Amplifier

About: Skar Audio RP-800.1D 800 Watt RMS Monoblock Car Amplifier

Skar Audio engineered the RP-800.1D Class D monoblock subwoofer amplifier to be dominant in both power and reliability compared to anything else on the market in its' class. Designing the most efficient, well built, high quality amplifiers is where we start here at Skar Audio, and that is exactly what is delivered in the RP-800.1D.

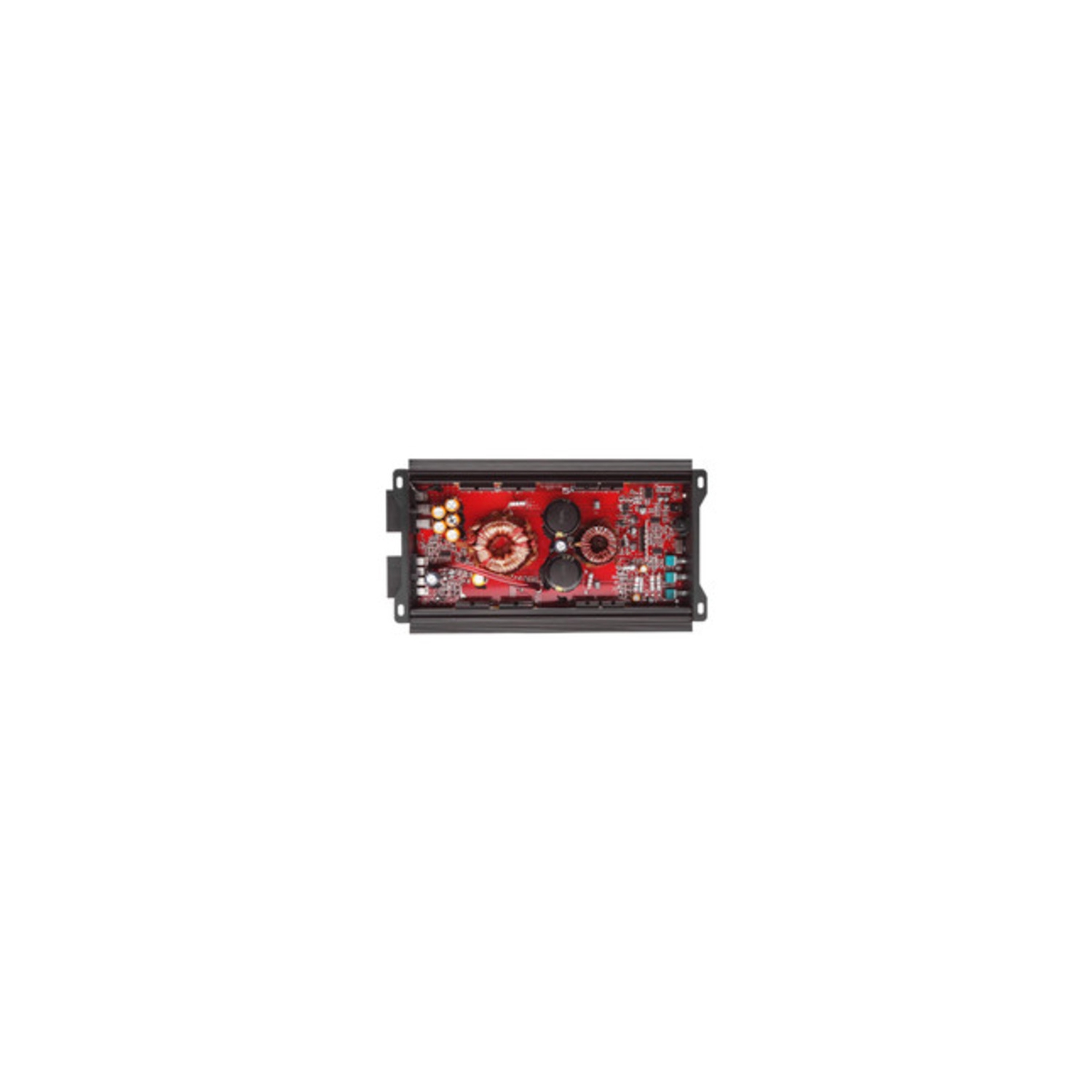

The RP-800.1D is 1-ohm stable and utilizes a wide array premium internal components that make it extremely powerful and reliable - such as its high speed MOSFET power supply and advanced PCB board layout. Conservatively rated at 800 watts RMS power at a 1-ohm load, with the capabilities of reaching beyond 1,200 watts at max power output. This amplifier is by far one of the most popular and affordable mono-blocks we have ever released, and is great for powering a "daily driver" subwoofer stage in any vehicle.

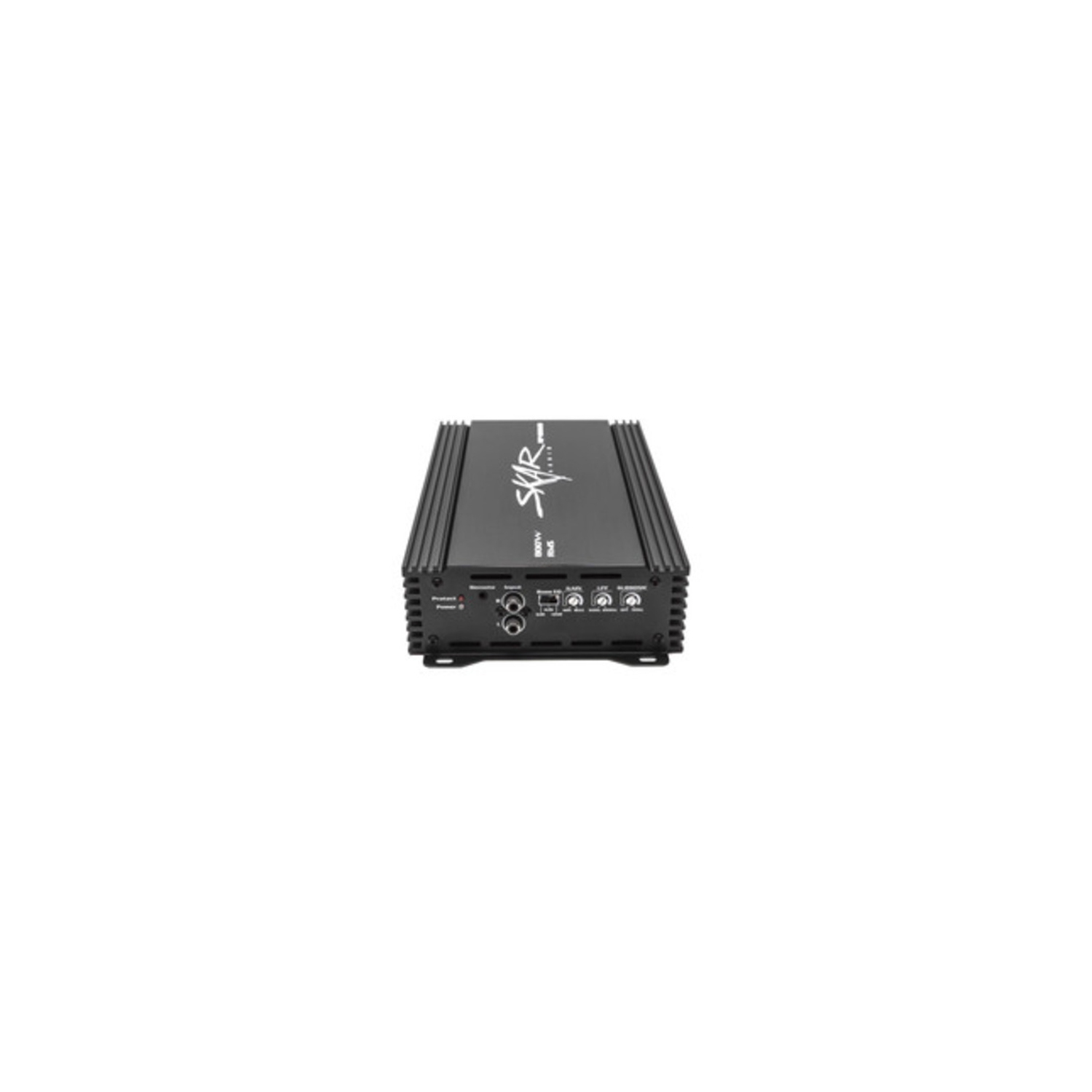

Furthermore, the oversized 4 gauge power and ground terminals found on the amplifier allow for maximum current flow and therefore higher power output and more efficient operation. You'll have full reign over your amplifier with the built-in user control panel, featuring a bass EQ switch (0, +6, +12dB), and variable adjustment tunings for gain level, low-pass filter, and subsonic filter.

In addition to all of the above features, this model also features 4-way protection circuitry, which will give the user the peace of mind knowing they are protected against damage to the amplifier for various reasons - including electrical shortage, over heating, low voltage, and more. This amplifier comes with a remote subwoofer level control (bass knob) allowing the user to have full control over their bass from the front of the vehicle.

Product Highlights:

RMS Power @ 1 Ω: 800W x 1 Ch (14.4v)

Peak Power @ 1 Ω: 1,200W x 1 Ch (14.4v)

Power & Ground Input Size: 4 Gauge

Remote Bass Knob and Cable Included: Yes

Specifications:

Skar Audio RP-800.1D Monoblock Amplifier

1-ohm Stable Car Subwoofer Amplifier

Class D Monoblock Subwoofer Amplifier

4 Way Protection Circuitry: Thermal, Voltage, Speaker, DC

RMS Power at 2 Ohms: 600 Watts x 1 Channel (14.4v)

RMS Power at 4 Ohms: 370 Watts x 1 Channel (14.4v)

RMS Power at 1 Ohm: 800 Watts x 1 Channel (14.4v)

Peak Power at 1 Ohm: 1,200 Watts x 1 Channel (14.4v)

High Speed MOSFET Power Supply

Soft Turn on Circuit

Frequency Response: 20Hz - 250Hz

Signal to Noise Ratio: 85dB

Damping Factor: 150<

Bass EQ Switch: 0, +6dB, +12dB

Low Pass Filter (Variable): 50Hz - 220Hz

Subsonic Filter: Off - 50Hz

Remote Bass Knob & Wire Included

4 Gauge Power and Ground Terminals

Working Voltage: 8.5V - 14.4V

Fuse Rating: 80 Amp

Dimensions: 11.75" (Length) x 6.25" (Width) x 2.25" (Height)
