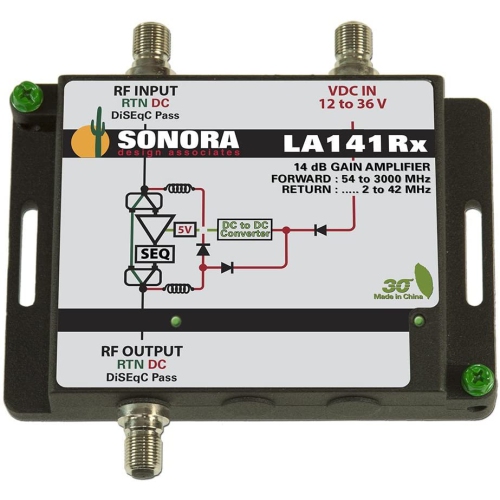

Sonora Design LA141RX-T Outdoor 54 to 3000 MHz Line Powered Amplifier w/ Foward Gain & Passive Sub-Band w/ Power Supply.

Sonora Design LA141RX-T Outdoor 54 to 3000 MHz Line Powered Amplifier w/ Foward Gain & Passive Sub-Band w/ Power Supply

Model: LA141RX-T
Web Code: 16247937
Sold and shipped by | 4.1 seller rating (62 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

The Situation: The output of an LNB or DBS switch is split to multiple rooms or apartments and the receiver signal levels are low at distant locations. The Solution: The LA141RX-T boosts cable and DBS signal levels offsetting the loss of 150 feet of RG-6 while passing data modem and receiver control signals from receiver to the switch. This product is a universal coaxial amplifier, and works with OTA, CATV, DBS, & SWM. Includes passive 2 to 42 MHz sub-band return.

•The LA141Rx-T amplifier is compatible with OTA, CATV, DBS, and SWM

•This amplifier features a passive 2 to 42 sub-band return

•Model LA141RX-T uses an SCTE outdoor rated case with weather sealed F connectors

•Wide Bandwidth: 54 to 3000 MHz Forward, 22 kHz to 42 MHz return

•High Output Ability: 0 dBm

•DC Passing RF Out to RF IN: DiSEqC & 2.3 MHz pass

•High Efficiency Power Supply: low current use

•Multiple power options: line or external DC

•Maximum Output (32 equal transponders): 0 dBm

•Voltage: 12 to 29 VDC

•Power Consumption: 0.9 watts

•Gain, Typical, QC Limit: 2 to 42 MHz -1 dB, -4 dB; 54 MHz 8 dB, 7 dB, 250 MHz 9 dB, 8 dB; 1450 MHz 12 dB, 11 dB; 2150 MHz 14 dB, 13 dB; 3000 MHz 14 dB, 13 dB

•Operating Environment: Indoor/Outdoor (Lock box)

•Ambient Temperature:-30 Degrees C to 60 Degrees C (-22 Degrees F to 140 Degrees F)

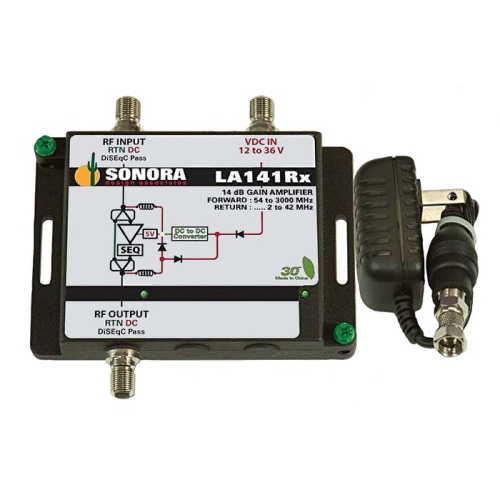

•Box Contents : 1x Sonora LA141RX-T - 1x Power Adapter
