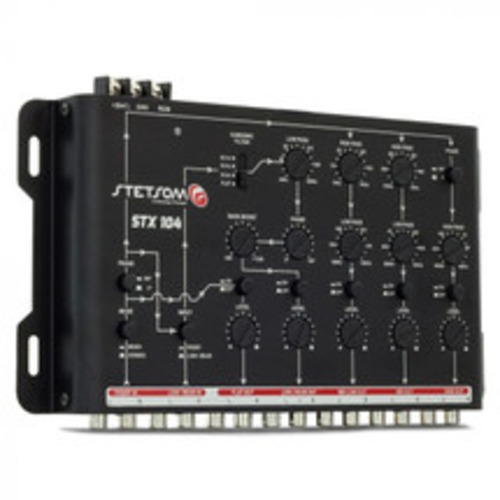

Stetsom STX104 5-Way Crossover

Model: STX104
Web Code: 18826976
Sold and shipped by | 4.4 seller rating (123 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Warranty

Check with the manufacturer for details.

Overview

Designed to deliver high performance combined with sound fidelity, the Crossover Stetsom STX104 - 5 Way has high reliability with very low levels of noise and harmonic distortion, ideal for professional sound reinforcement. This electronic crossover has two input channels and five FLAT paths (stereo or mono) LOW / REAR (mono) MID LOW (stereo or mono) MID HIG (stereo or mono) and HIG (stereo or monaural), which provides a flat frequency response throughout its operating range.

About: Stetsom STX104 5-Way Crossover

Designed to deliver high performance combined with sound fidelity, the Crossover Stetsom STX104 - 5 Way has high reliability with very low levels of noise and harmonic distortion, ideal for professional sound reinforcement. This electronic crossover has two input channels and five FLAT paths (stereo or mono) LOW / REAR (mono) MID LOW (stereo or mono) MID HIG (stereo or mono) and HIG (stereo or monaural), which provides a flat frequency response throughout its operating range. Output Low Pass has a filter (Subsonic) of 24dB / 8 specially designed to reject low frequencies not reproduced by woofers, thus increasing their efficiency and durability. As can be seen, the Crossover Stetsom STX104 - 5 Way is a high-performance equipment, widely used in professional sound reinforcement and sound championships.

Specifications:

Via High400Hz - 10KHz (12 dB/8ª)

Via Mid150Hz - 12,5KHz (12 dB/8ª)

Via Low70Hz - 10KHz (12 dB/8ª)

Maximum Output Voltage9V RMS

Maximum Input Voltage4V RMS

Signal to Noise>90dB

Input Impedance10K OHMS

Harmonic Distortion 80dB

Frequency Response20Hz - 200Khz

Supply Voltage10V - 16V DC

Current Consumption0,25A MAX

Impedance Output50 OHMS

Dimensions (H x W x D) mm33 x 264 x 160 mm

Weight Kg780g
