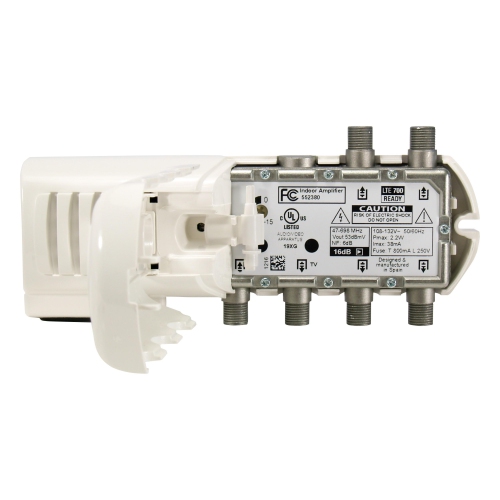

Televes 552380 TV Antenna Domestic Distribution Amp 5-Port with LTE Filtering

Domestic distribution amplifier intended to extend the over the air television signal coming from an antenna in a home coaxial cable network. This amplifier provides a total of five outputs, four of which have a maximum gain of 16dB, in addition to a lower gain output of 12dB meant to be connected to the TV set closest to the amplifier itself. Its adjustable gain allows the user to fine tune the ideal level and avoid over amplification. It incorporates LTE filtering to eliminate any potential cell phone signal interference. A built in low consumption UL-listed power supply provides over 50% energy savings compared to the wall-wart adapters found in most other distribution amplifiers. Low visual impact wall-mounted compact design and small size, with cast metal and resistant high grade ABS plastic construction for maximum durability and best in class shielding.

Benefits

•Five output distribution amplifier

•Adjustable gain, with a maximum gain of 16dB

•Featuring Low VHF, high VHF and UHF signals amplification

•Designed to be Elegant and discrete, designed with a wall-mounted form factor

•A built in LTE filter eliminates any potential cell phone interference created by nearby cell phone stations or home cell phone booster systems

•This low consumption power supply provides you over 50% in energy savings

•Output Number: 4+TV

•Frequency Margin: 47-698MHz

•Gain: 16dB (12@TV Out)

•Gain Regulation Range:0-15dB

•Max Output Current: IMD3 (2 tones, -35dB)53dBmv; DIN45004B 46dBmV

•Voltage: 108V-132V / 50Hz-60Hz

•Max Consumption: 38mA / 2.2W

•Protection Index: 20IP

•Operating Temperature: -30 - 45 Degrees C (-23 - 113 Degrees F)

•Box Contents: 1x Televes 552380 F Domestic Amplifier - User Manual
