IMPORTANT: To make sure this product is compatible with your vehicle, please check TOPDON’s Vehicle Coverage Tool at topdon.us/pages/vehicle-coverage-tool before purchasing.
• 35 Maintenance Services With Additional Special Functions:

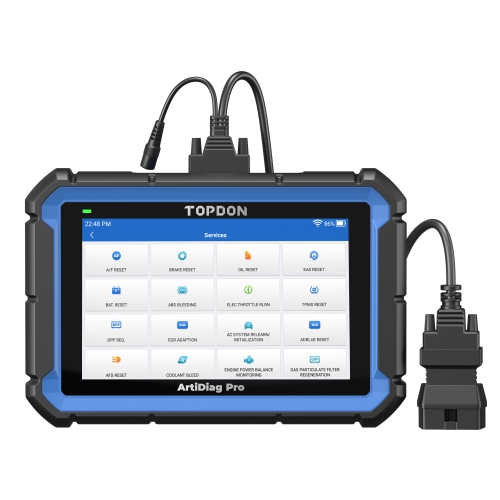

The ArtiDiag Pro can meet all your needs by offering 35 maintenance service functions for the most popular vehicle makes; compatible with VW, GM, BMW, PORSCHE, BENZ and more. The ArtiDiag Pro scanner also supports more special functions for various car brands. For more special functions, refer to Special Function Menu in specific system.
• Bi-Directional Control - Target The Problems Easily:
The ArtiDiag Pro car scanner can get access to vehicle-specific subsystems and component parts that drive the actuators to perform a specific function. This determines the integrity of the system or parts, allowing users to analyze and locate the faults more accurately. Work on lights, door locks, fuel injectors, fuel pumps, coolant pumps, windows, windshield wipers, EVAP and more.
• ECU Coding For Vehicle Modification:
The ArtiDiag Pro scanner supports online coding for the customers to achieve advanced adjustments in the car. The car scanner is compatible with models including VW, AUDI, SKODA, SEAT, and more, which can help to match and code the newly replaced ECU after the replacement of ECUs, including light modules, ABS modules, and unlock hidden functions such as movement pointer and horn sounding when locking/unlocking the car.
• Full System Diagnostics For 100+ Makes:
The ArtiDiag Pro scanner allows the user to perform a comprehensive scan of all systems, including engine, transmission, airbag, ABS, ESP, TPMS, immobilizer, gateway, steering, radio, and air conditioning for more than 100 brands.
• Full OBDII Capabilities:
The TOPDON ArtiDiag Pro also works as an OBDII code reader and performs all 10 modes of OBDII testing on most car makes.The tool performs ECU lookups, reading and clearing fault codes, and reads data streams.
• AutoVIN for automatic vehicle identification.
• Print and Share Diagnostic Reports:
The ArtiDiag Pro scanner allows users to generate a diagnostic report and print it out via email. Allowing shops to easily share data whenever a record is needed.
• Clear Fault Codes With One-Click:
The Health Report function enables users to quickly detect and clear fault codes in all systems of the vehicle with one click. Users can also save and share fault code reports with the Report function.
• Comparative Data Display:
Select the function Combine to display up to 4 data streams on a single interface graphically, allowing the users to evaluate performance with comparative data to make accurate and efficient decisions.
• Long Battery Life and Smooth Operation:
The ArtiDiag Pro features a larger battery capacity to save technicians from frequent recharges. The 6100mAh battery has up to 14 hours of battery life with the screen on. With its upgraded 4-core 2.0Ghz CPU, 2GB RAM and Android 10.0, the ArtiDiag Pro runs faster than ever.
• Specs:
· Working Voltage: 5V
· Working Temperature Fahrenheit: 32°F to 122°F
· Working Temperature Celsius: 0°C to 50°C
· Storage Temperature Fahrenheit: -4°F to 140°F
· Storage Temperature Celsius: -20°C to 70°C
· Storage: 32GB
· RAM: 2GB
· Product Width (inches): 6.10
· Product Weight (lbs): 1.77
· Product Length (inches): 9.10
· Product Height (inches): 1.57
· Processor: 4-Core Processor, 1.5 Ghz
· Operating System: Android 7.0
· Languages Supported: English, Spanish, French, German, Italian, Russian, Portuguese, Japanese, Korean, Traditional Chinese
· Display Size: 7 Inch LCD
· Display Resolution: 1024 x 600 pixels
