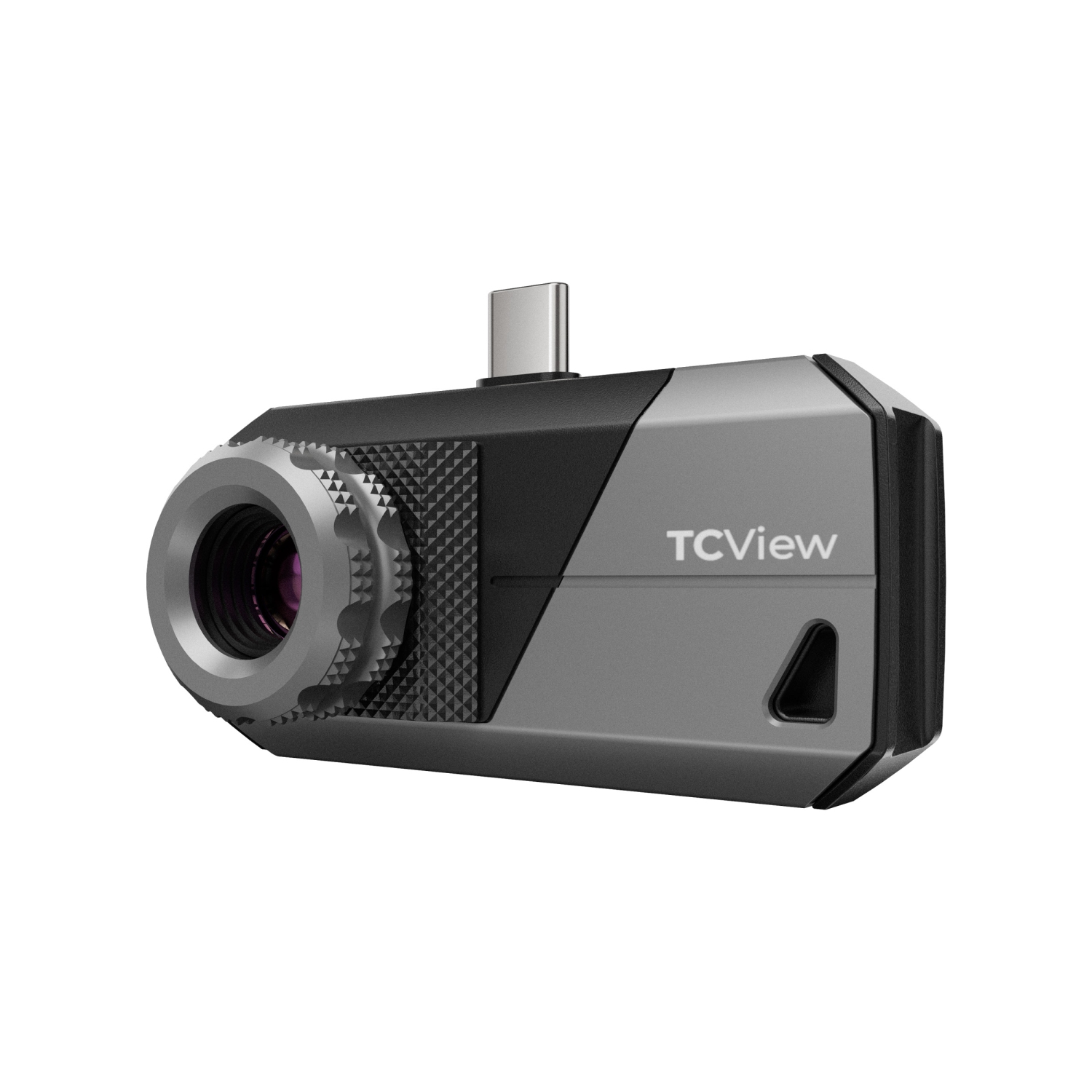

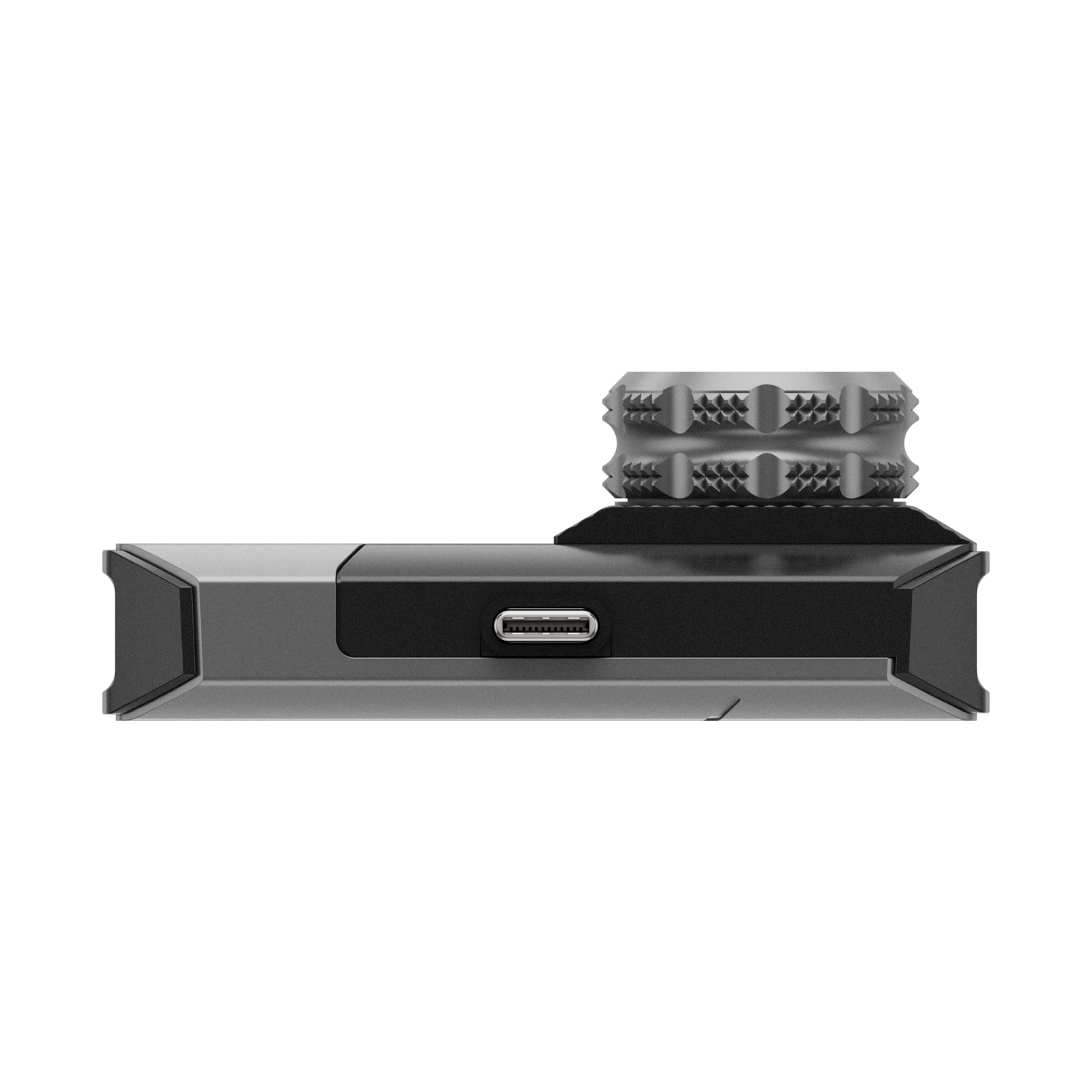

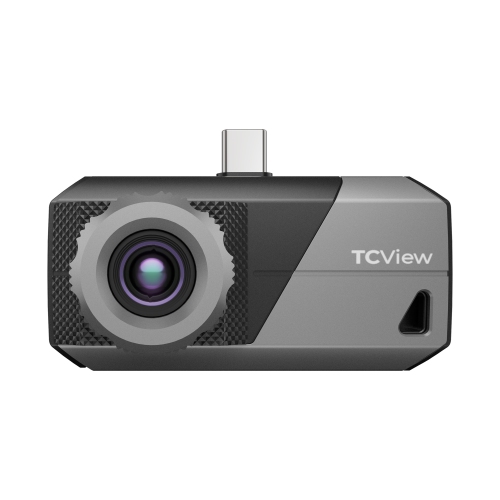

TOPDON TS001 Thermal Imaging Camera (256x192 Res. - Adjustable Lens - Android)

• Where Clarity Takes Center Stage:

See the infrared world in stunning clarity with our 256x192 IR Resolution TS001 imager, capturing crisp images with every detail. Enjoy fluid visuals with a 25Hz infrared refresh rate for smooth and seamless viewing.

• Adjustable Lenses: Clear Vision From Near To Far:

The TS001 offers adjustable 9mm lenses, accommodating infrared imaging needs from 0.1 to 500 meters, ensuring clarity whether viewing objects up close or at a distance.

• Precision Pathfinders of Heat and Cold:

Experience temperature recognition at its finest with the TS001, your ultimate precision partner. Achieving readings with an incredible accuracy of 0.1 degrees and an error margin of less than 3%, it's the epitome of reliability. From frosty lows of -20°C to scorching highs of 550°C (-4°F to 1022°F), it covers the spectrum effortlessly. And with its high-definition camera, detecting minuscule components like PCB boards and resistors becomes a breeze.

• Fast Vision, Faster Action:

In the world of thermal imaging, TS001's observation mode is your adept ally, swiftly capturing targets with finesse. Its dynamic recognition tracks moving objects, while the high/low-temperature mode intelligently flags extreme temperature sources. Through these modes, TS001 rapidly identifies points of interest and uncovers anomalies within the observed area.

• Swipe To Highlight Temperature Variance:

With just a swipe, you can tailor your thermal view to focus only on what matters most to you. The intuitive color bar lets you easily set the temperature range you want to spotlight. Plus, when things heat up beyond your chosen range, you'll see it pop in bold black and white, or any other colors you fancy, making temperature differences crystal clear immediately.

• Boundless Vision, Always Clear:

From up close to afar, indoors to outdoors, the TS001 Thermal Imaging Camera delivers unmatched clarity. Whether you're inspecting PCB boards in the lab or monitoring boilers from a distance, conducting HVAC checks indoors, or outdoor cable inspection, TS001 has got you covered.

• More Functions:

· Dual Light Mode: Combine the visual image and infrared image

· Smart Temperature Alert

· Temperature Real-time Waveform

· Image Secondary Analysis

· 10 Color Palettes

· Works With PC

· Image & Video

· Customized Infrared Reports

• Specs:

· Working Temperature Fahrenheit: 14F°~131F°

· Working Temperature Celsius: -1055

· Storage Temperature Fahrenheit: -4F°~140F°

· Storage Temperature Celsius: -20-60

· Spectral Range: 8~14m

· Product Width (inches): 1.10

· Product Weight (lbs): 0.10

· Product Length (inches): 2.76

· Product Height (inches): 1.73

· Object Temperature Range Feherheit: -4 to 302°F, 302 to 1022°F

· Object Temperature Range Celsius: -20 to 150°C, 150°C to 550°C

· IR Resoltuion: 256 x 192

· Image Frequency: 25 Hz

· Heat Sensitivity: ±3 or ±3%

· Focal Length: 9mm

· Field of View: 13° x 10°
