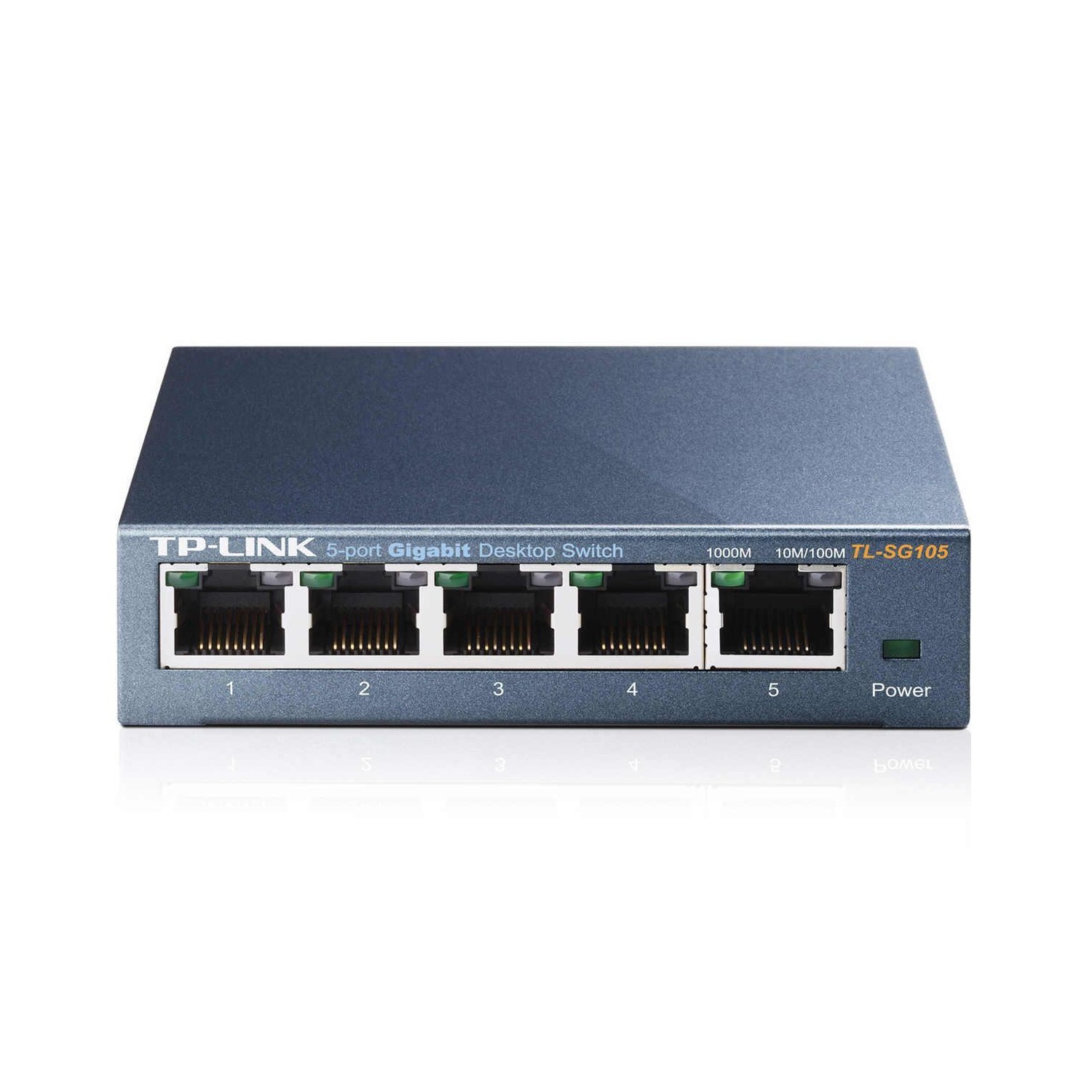

TP-Link TL-SG105 5-Port Desktop Switch

Model Number: TL-SG105
Web Code: 12614650

product image

Overview

5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIXGreen Ethernet technology saves the power up to 84%IEEE 802.3x flow control provides reliable data transferSteel housing, desktop or wall-mounting designSupport 802.1p/DSCP QoS* and IGMP Snooping functionPlug and play ,no configuration needed
SAVE $8$35.2
SALE ends:

Available online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Overview

5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIXGreen Ethernet technology saves the power up to 84%IEEE 802.3x flow control provides reliable data transferSteel housing, desktop or wall-mounting designSupport 802.1p/DSCP QoS* and IGMP Snooping functionPlug and play ,no configuration needed

Green Ethernet technology saves the power up to 84%. Steel housing, desktop or wall-mounting design. Support 802.1p/DSCP QoS and IGMP Snooping function. Plug and play , no configuration needed.

More Information

The TP-LINK 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG105 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105 can save up to 84% of the power consumption, making it an eco-friendly solution for your home or office network. HARDWARE FEATURES

Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p

Interface 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity Fanless

Power Consumption Maximum: 3.2W (220V/50Hz)

External Power Supply External Power Adapter (Output: 9VDC / 0.6A)

LED Indicator System Power

Link, Speed and activity indicators per port built into each RJ-45 port

Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)

PERFORMANCE

Packet Forwarding Rate 7.4Mpps

MAC Address Table 2K

Packet Buffer Memory 1Mb

Jumbo Frame 15KB

SOFTWARE FEATURES

Advanced Features Green Technology, saving power up to 84%

802.3X Flow Control

802.1P/DSCP QoS (for V2 and later version)

IGMP Snooping

Transfer Method Store and Forward

OTHERS

Certification CE, FCC, RoHS

Package Contents 5-Port 10/100/1000Mbps Desktop Switch

Power Adapter

Installation Guide

Environment Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5%~90% non-condensing

Type
Desktop Switch
Total Number of Ports
5
Ethernet Speed
10/100/1000

Warranty

Seller's Warranty - Parts
1 Year
Seller's Warranty - Labour
1 Year
  • 5-Port 10/100/1000Mbps Desktop SwitchPower AdapterInstallation Guide
