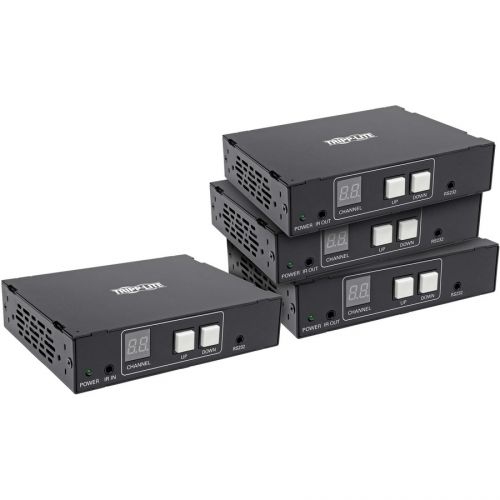

Tripp Lite B160-103-HDSI Video Extender Transmitter/Receiver

DVI/HDMI Switch Kit for Digital Signage or Extending Video in Schools or Trade Show BoothsThis switch/extender kit comes with three Tripp Lite B160-001-HDSI transmitters and one B160-100-HDSI receiver. It extends and distributes DVI or HDMI audio/video, RS-232 serial and IR (infrared) remote signals from three source devices, such as Blu-ray players and media servers, to an HDMI display via Cat5e/6 cabling. The maximum distance between a transmitter and receiver is 328 feet. However, by connecting a dedicated network switch (sold separately) in between, you can extend the audio/video as far as 656 feet (200 meters). Scale Up to a Multi-In, Multi-Out Installation to Take You Beyond 656 FeetYou can create an installation featuring multiple sources and displays by connecting a dedicated managed Ethernet network switch with Internet Group Management Protocol (IGMP), such as Tripp Lite's NSS-G16D2. By adding multiple managed switches, you can create a multi-in, multi-out installation with as many as 64 transmitters and 255 receivers. The IGMP-enabled switch will let you manage all connections for centralized control over which sources show on which displays. Note: Unmanaged switch installations are limited to two transmitter units. The number of receivers is limited to the number of ports remaining on the unmanaged switch. This transmitter/receiver extender kit is designed for use with a dedicated network switch. Connecting a switch used with other networking equipment will result in degraded or non-functional performance. Transmits Crystal-Clear 1080p Video with Stereo AudioThe B160-103-HDSI supports video resolutions up to 1920 x 1080 (1080p) at 60 Hz with 24-bit True Color in a managed switch installation. It extends IR signals that control a DVI or HDMI source to the remote display, as well as RS-232 signals at serial baud rates up to 57600 bps. This allows you to operate the source devices' remote controls (play, rewind, pause, etc.), while standing near the receiver located up to 656 feet away. Adapter cables are included for converting DVI signals to HDMI and vice versa. Plug-and-Play Operation for Quick Setup and Immediate UseThe included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Cat6 patch cable (such as Tripp Lite's N202-Series) can be used to connect the transmitters to a receiver or network switch. Connect an additional display to a transmitter's local output with HDMI cable (such as Tripp Lite's P568- or P569-Series) to monitor the image being transmitted to a remote display. TAA-Compliant for GSA Schedule PurchasesThe B160-103-HDSI is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. Typical Applications Keep your video sources in a secure location, with displays located elsewhere for viewing by the intended audience Create an easily updatable video board communicating dynamic information, such as a restaurant menu or a theater schedule Display arrivals, departures and up-to-the-minute information in an airport or train station Duplicate audio/video content across multiple displays, show different content on multiple screens or create an impressive video wall made up of many monitors (multiple transmitters and receivers required) System Requirements Source devices with DVI or HDMI output (media server, Blu-ray player) Switch kit includes 3 B160-001-HDSI transmitters and one B160-100-HDSI receiverDelivers HD picture quality at resolutions up to 1920 x 1080 (1080p) @ 60 HzTransmitters' local HDMI ports let you monitor images being shown on remote displayPlug-and-play operation with no software required for easy, immediate installationCompliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases1-year limited warranty
