Overview

Operating within the 4.9 to 5.9 GHz frequency, the AF-5G30-S45 30 dBi Antenna for airFiber 5X carrier backhaul radio produces a reliable point-to-point signal complete with a 30 dBi gain. In addition to the strength of the signal, users also benefit from a 5.8 degree beamwidth and a wind survivability rating of up to 125 mph.

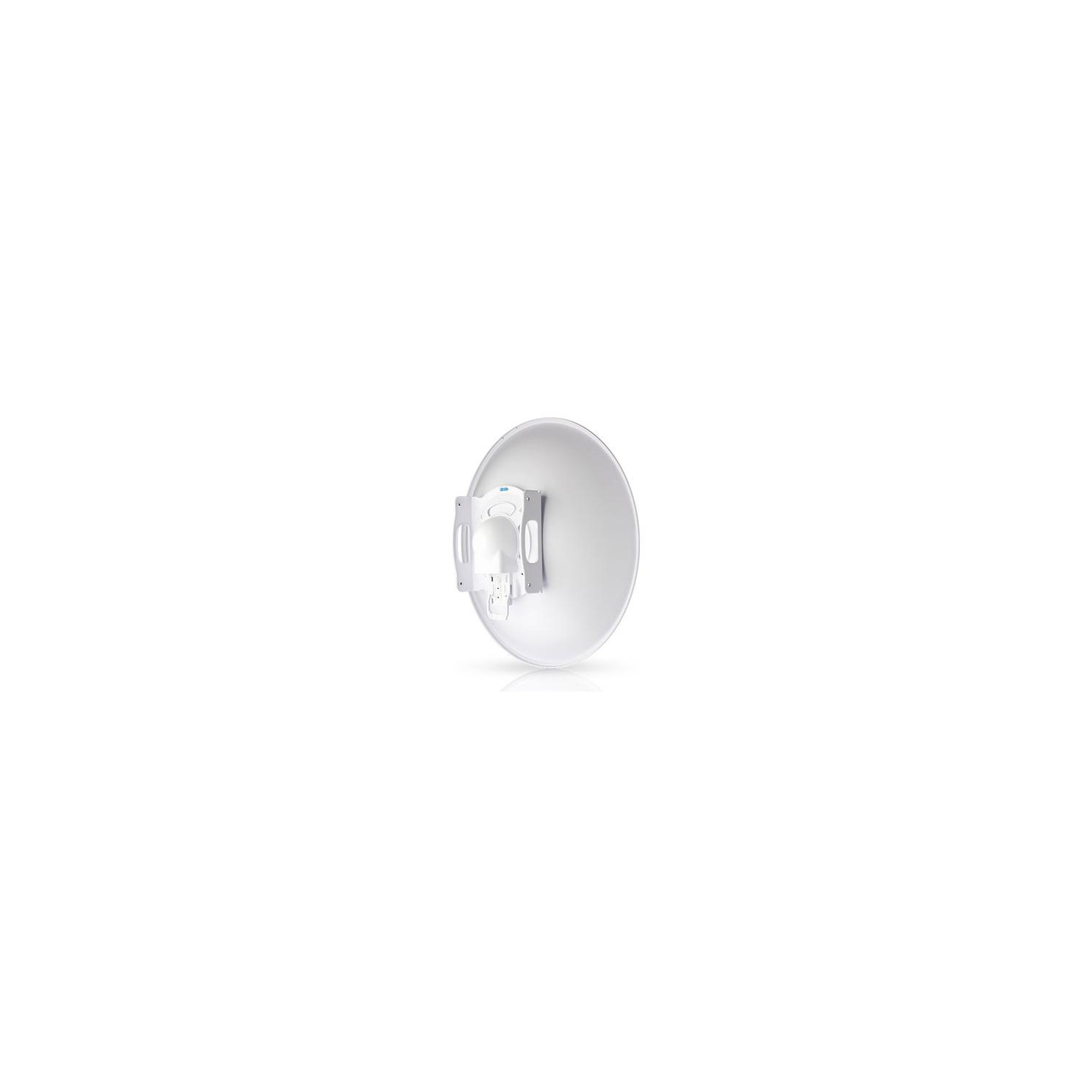

Ubiquiti 30-Dbi 5-Ghz 45-Degree Slant Parabolic Dish Antenna For Airfiber 5X - 650-Mm (25-In)

Model: AF-5G30-S45
Web Code: 10733801
Sold and shipped by | 4.5 seller rating (148 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Read return policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

What's included:

  • Universal Pole Mount
  • airFiber X Radio Bracket
  • Weatherproof RF Connectors

Benefits

• The airFiber X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point (PtP) bridging.

• The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.

• The airFiber X Antennas are designed to integrate seamlessly with the airFiber X radios.

• The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high capacity, multipoint networks.

• The 5 GHz RocketDish to airFiber Antenna Conversion Kit, model AF-5G-OMT-S45, converts the RocketDish RD-5G30 or RD-5G34 antenna for use with the airFiber AF-5X radio.

Technical Specifications

• Frequency Range: 5.1 - 5.9 GHz

• Gain: 30 dBi

• +45 Deg Beamwidth: 5.8 Deg (3 dB)

• - 45 Deg Beamwidth: 5.8 Deg (3 dB)

• F/B Ratio: 30 dB

• Max. VSWR: 1.6:1

• Wind Loading: 790 N @ 200 km/h (178 lbf @ 125 mph)

• Wind Survivability: 200 km/h (125 mph)

• Polarization: Dual-Linear

• Cross-pol Isolation: 35 dB Min.

• ETSI Specification: EN 302 326 DN2

• Mounting: Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Connectors Included

Product Condition
Brand New
TV Antenna Type - Outdoor
Yes
Gain (dB)
30 dB

Supported Reception

Colour
White
Width
65 cm
Height
38.6 cm
Depth
65 cm
Weight
9.8 kg
