Overview

The EP-S16 EdgePoint 16-Port Gigabit PoE-Compliant WISP Switch from Ubiquiti is designed to simplify your hardware by replacing the network cabinet. It is encased in a die-cast aluminum alloy and polycarbonate shell with UV resistance, and features a combination of robust routing performance, fiber backhaul capability, and the convenience of passive PoE support.

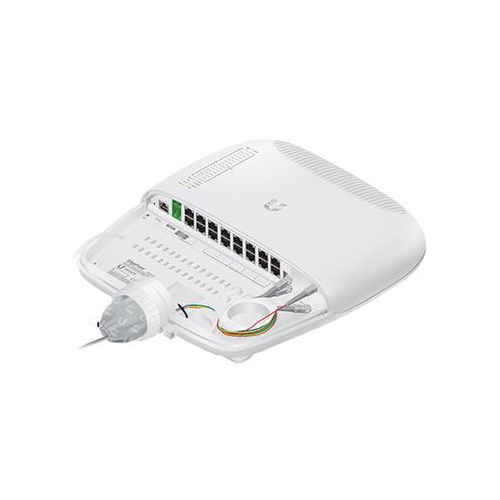

Ubiquiti EdgePoint 16-port Intelligent WISP Control Point Layer-2 Gigabit Switch with Fiber Protect

Model: EP-S16
Web Code: 10732649
Sold and shipped by | 4.4 seller rating (145 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

What's included:

  • EP-S16 EdgePoint Switch
  • Wall-Mount Bracket
  • (2) Metal Straps
  • Cable Sleeve
  • Gigabit PoE (54V, 1.5A) with Mounting Bracket
  • Power Cord
  • Quick Start Guide

Benefits

• Breakthrough in Tower Deployment: EdgePoint features FiberProtect to significantly reduce ESD failures and EMI

• All-in-One Design: A single, compact controller efficiently eliminates clutter

• Robust Construction: The ruggedized case withstands outdoor conditions, including wind, rain, and snow

• Advanced Applications: Layer-2 link aggregation provides similar redundancy and increased performance benefits

• Versatile Power Options: Powered by 54VDC or by PoE, the EP-S16 can support 54 or 24V passive PoE to power all Ubiquiti products, including airFiber and airMAX

Technical Specifications

• Enclosure Characteristics: Diecast Aluminum Alloy and Polycarbonate with UV Resistance

• Max. Power Consumption: 40W (Excludes PoE Output)

• Power Input: (1) DC Terminal Block or (2) RJ45 (Ports 1 and 2)

• Power Supply: Min. 54V / 0.8A (Excludes PoE Output Power)

• VDC Input: 54VDC, 6A

• Passive PoE Input: (2) 54V/1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 and 2

• Passive PoE Output: (4) 54V/1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 to 4 ; (12) 802.3af/at or 24V/0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, Ports 5 to 16

• Power Monitoring: (1) DC Terminal Block, Input Power ; (2) RJ45, Ports 1 and 2, PoE Input or Output Power ; (14) RJ45, Ports 3 to 16, PoE Output Power

• Supported Voltage Range: 56 to 42VDC

• Button: Reset

• Processor: ARM Cortex-A9 400 MHz

• System Memory: 256 MB DDR3 RAM

Product Condition
Brand New
Type
Ethernet Switch
Total Number of Ports
45
Ethernet Speed
10/100/1000

Physical Features

Width
32.66 cm
Height
8.89 cm
Depth
38.28 cm
Width (Inches)
12.86 in
Height (Inches)
3.5 in
Depth (Inches)
15.07 in
Weight
5.35 g
