Overview

The Access Point WiFi 6 In-wall (U6-IW-US) is a dual-band, wall-mounted access point with (4) GbE RJ45 ports that brings plug-and-play WiFi 6 to your home or office. One of the U6 IW's ports also supports 802.3 af PoE output so you can connect and power an Ethernet device. With its 2.4 and 5 GHz WiFi 6 bands, the U6 IW offers an aggregate, over-the-air throughput rate of 5.3 Gbps, which can support over 300 clients.

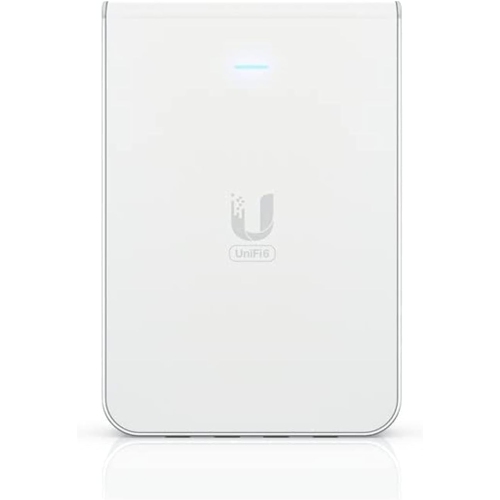

Ubiquiti U6-IW | US/CA Model | UniFi 6 in-Wall Access Point (U6-IW-US)

Model: U6-IW-US
Web Code: 17540015
Sold and shipped by | 3.0 seller rating (2 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

The Access Point WiFi 6 In-wall (U6-IW-US) is a dual-band, wall-mounted access point with (4) GbE RJ45 ports that brings plug-and-play WiFi 6 to your home or office. One of the U6 IW's ports also supports 802.3 af PoE output so you can connect and power an Ethernet device.

With its 2.4 and 5 GHz WiFi 6 bands, the U6 IW offers an aggregate, over-the-air throughput rate of 5.3 Gbps, which can support over 300 clients. The U6 IW is also Bluetooth-compatible so it can be set up in minutes and managed from anywhere via the UniFi Network Application or UniFi Network Mobile App.

TECHNICAL SPECIFICATIONS

Dimensions: 139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28")

Weight: 460 g (1.01 lb)

Enclosure materials: Plastic, aluminum

Mount material: Aluminum

Management interfaces: Ethernet, Bluetooth

Networking interfaces:

(1) Data-in: 1GbE RJ45 port,

(4) Data-out: 1GbE RJ45 ports PoE interfaces: (1) PoE in (PoE output not used), (1) PoE out (requires a PoE+ switch)

Button: Factory reset

LED: White/blue

Power method: PoE

Power supply: UniFi PoE switch, 48V, 0.5A PoE adapter (optional)

Max. power consumption: Excluding PoE output: 13.5W Max PoE wattage per port by PSE: 15.4W* (*Requires a PoE+ switch) Voltage range PoE mode: 44—57V DC Max. TX power: 2.4 GHz – 22 dBm; 5 GHz – 26 dBm MIMO: 2.4 GHz – 2 x 2 (UL MU-MIMO); 5 GHz – 4 x 4 (DL/UL MU-MIMO) Throughput rate: 2.4 GHz – 573.5 Mbps; 5 GHz – 4.8 Gbps Antenna gain: 2.4 GHz – 5 dBi; 5 GHz – 5.9 dBi

Operating temperature: -30 to 60° C (-22 to 140° F)

Operating humidity: 5 to 95% noncondensing

Certifications: CE, FCC, IC WiFi standards: 802.11a/b/g, WiFi 4/WiFi 5/WiFi 6

Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

BSSID: 8 per radio VLAN: 802.1Q Advanced QoS: Per-user rate limiting

Guest traffic isolation:

Supported Concurrent clients: 300+ Zero-wait

DFS: Yes

Supported Data Rates: 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n (WiFi 4): 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
