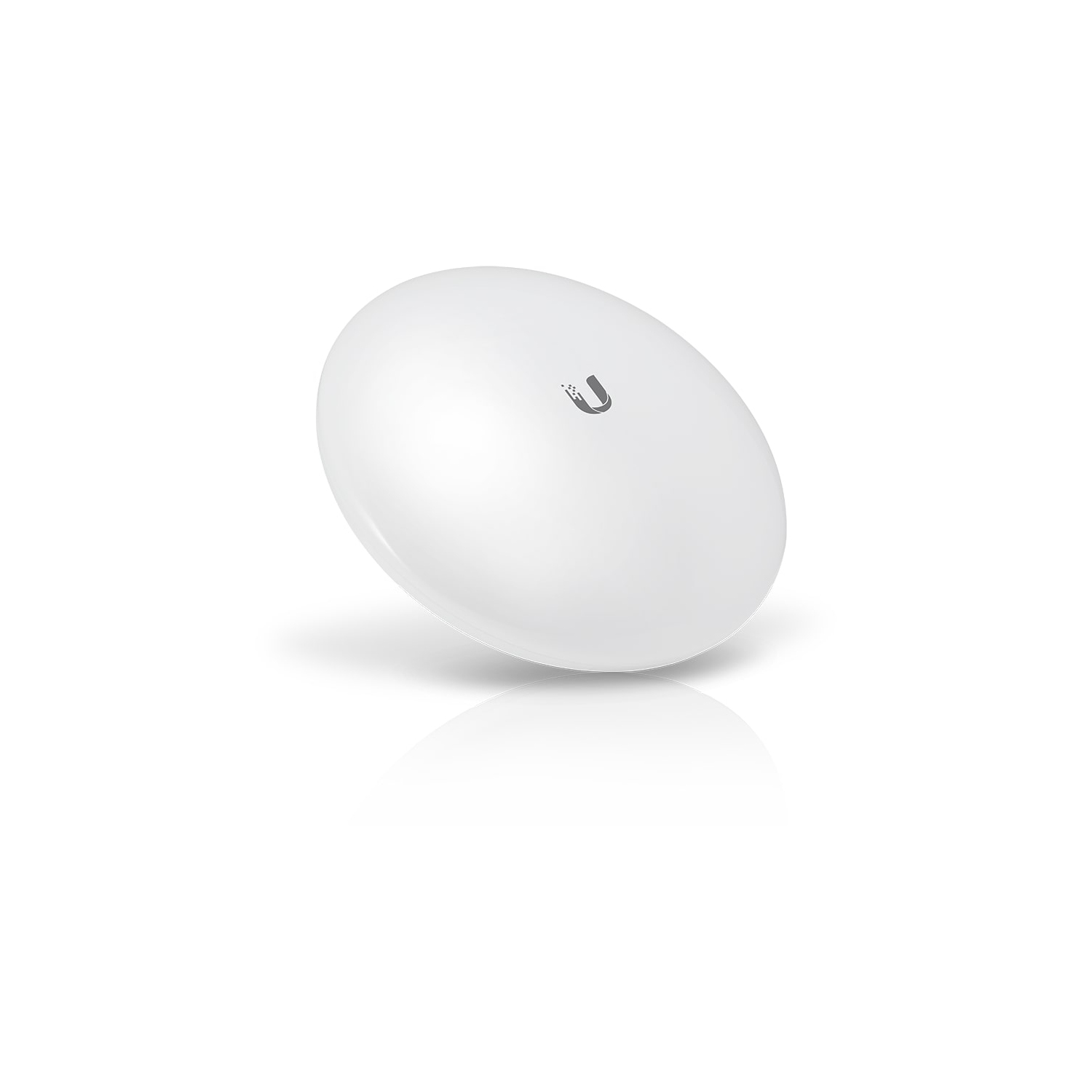

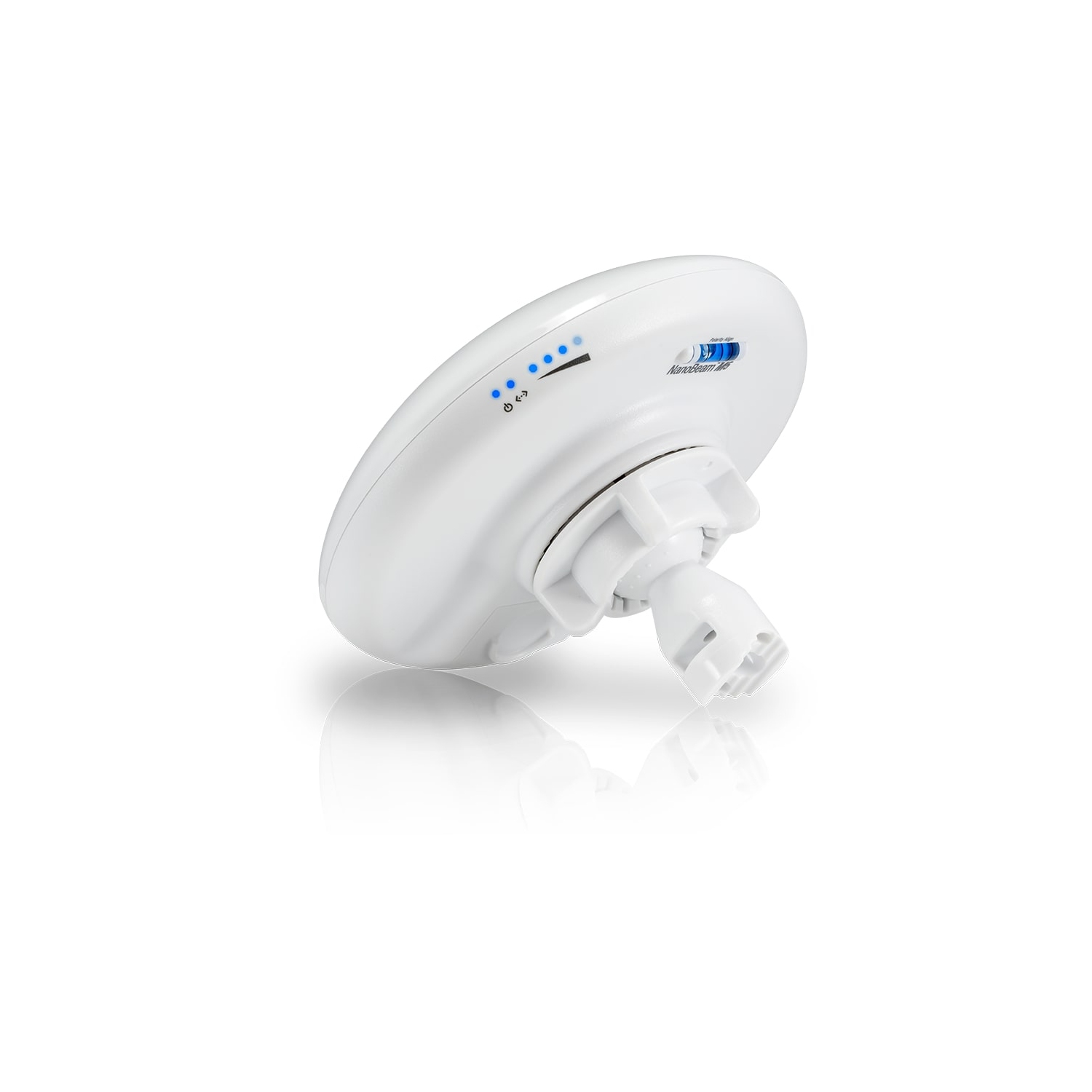

Ubiquiti UISP airMAX NanoBeam M5 5-GHz 16-dBi High Performance Bridge - White

Ubiquiti UISP airMAX NanoBeam M5 5-GHz 16-dBi High Performance Bridge - White

Model Number: NBE-M5-16
Web Code: 11533752
Sold and shipped by | 4.1 seller rating (238 reviews)

Sale ends: *

Available online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.


The NBE-M5-16 5 GHz 16dBi NanoBeam airMAX Bridge from Ubiquiti directs RF energy in a tighter beamwidth. NanoBeam maximizes noise immunity by its uniform bandwidth. With focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is important in an area crowded with other RF signals of the same or similar frequency.


No information available.

Seller Return Policy

Read return policy

What's included:

  • 1 x airMax NanoBeam M5 5GHz 16bBi CPE, 1 x 24V PoE Injector, Mounting Hardware

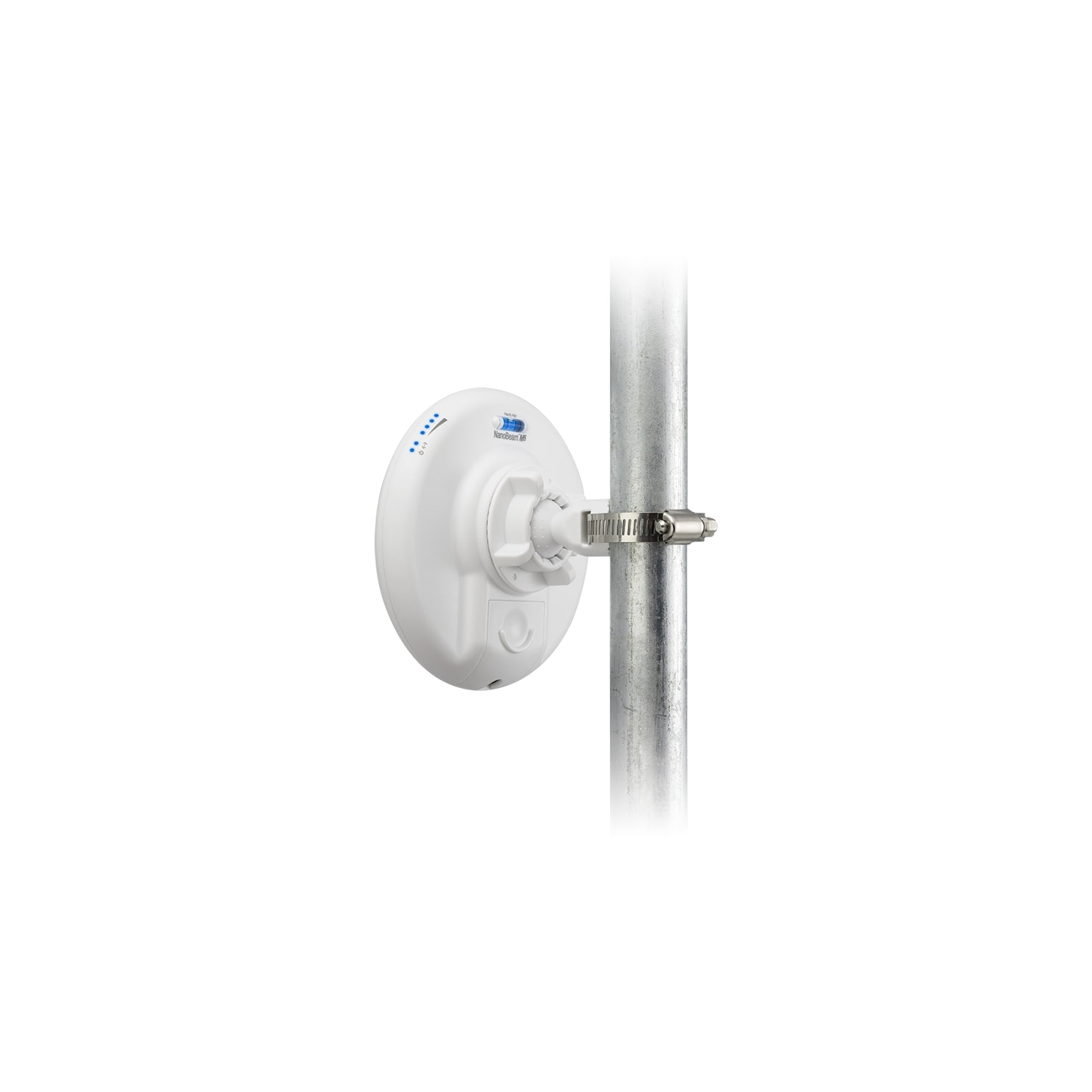

The NBE-M5-16 combines the radio and antenna in an efficient and compact unit that gets maximum gain out of the smallest footprint. It features an innovative mechanical design and high speed processor for optimal performance at low cost. The NanoBeam M5 can be easily mounted in a variety of ways thanks to the innovative mechanical design.


• Uniform beamwidth improves noise immunity

• More efficient footprint

• Faster processor increases performance

• Easy assembly and installation

Technical Specifications:

• Processor: Atheros MIPS 74KC, 560 MHz

• Memory: 64 MB DDR2, 8 MB Flash

• (1) 10/100 Ethernet Port

• Wireless Approvals: FCC, IC, CE

• RoHS Compliance: Yes

• Power Supply: 24V, 0.5A PoE

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Max. Power Consumption: 6W

• Operating Frequency: 5.47-5.825GHz

• Gain: 16dBi

• Max. VSWR: 1.5:1

• Output Power: 26 dBm

Product Condition
Brand New
Network Bridge
Outdoor UV Stabilized Plastic


13.9954 cm
2.13 cm
13.9954 cm
Width (Inches)
5.51 in
Height (Inches)
5.4102 in
Depth (Inches)
5.51 in
322.056 g
