𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻

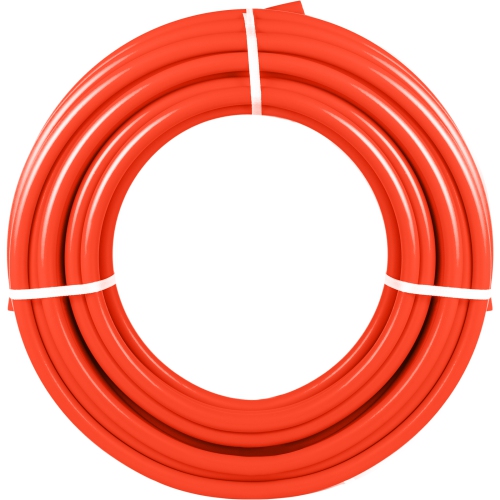

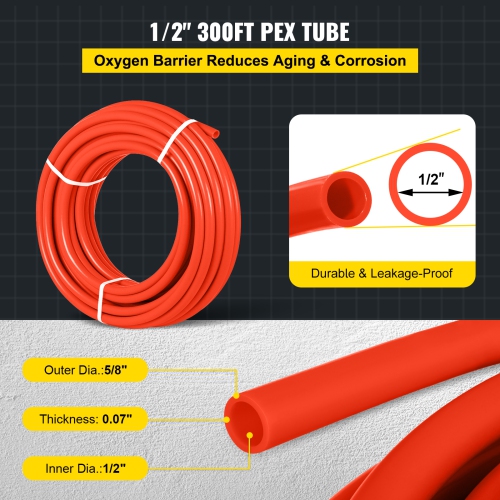

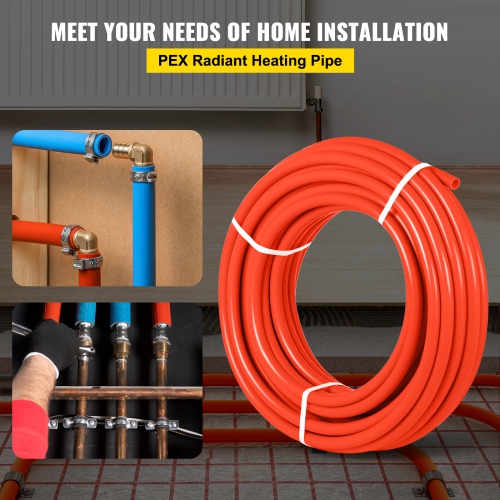

· 1/2" 300ft PEX-B Tube
This PEX piping with 1/2" inner dia., 5/8" outer dia., 300ft tube length, and 0.07" thickness. It is made of industrial-grade cross-linked polyethylene, which has high strength and is durable for long-term use.
· 5" Bending Radius
Expanding and shrinking with temperature and pressure changes, our PEX water line is bendable and flexible with a mini. 5" bending radius to suit various installations. Pressure rate: 80 psi @ 200℉, 100 psi @ 180℉, 160 psi @ 73F.
· Reliable Performance
Crafted with a layer of EVOH for O2 barrier, prevent oxygen and external elements from penetrating or corrode the metal components. Also, prevent the existence of germ in water. Its smooth inner wall ensures max water flow.

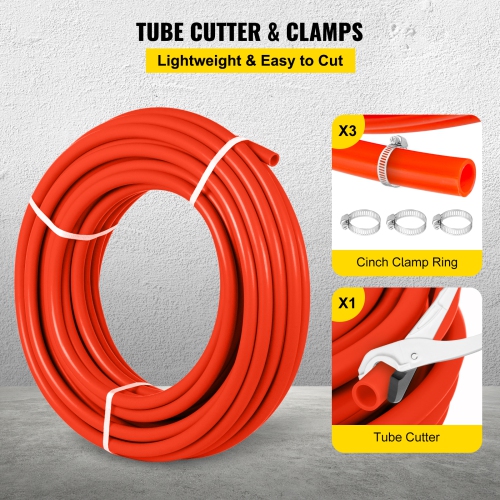

· Tube Cutter & Clamps
Our PEX tool kit includes the pipe and also 3 clamp rings, and 1 cutter. The clamps help link fittings, hoses, crimps in the piping system, and the cutter is used to convenient your tube cutting and DIY projects.
· Multiple Connections
You can easily install it in structural concrete slabs, or non-structural slabs, by connecting methods like; crimp connection system(crimp tool + rings + fittings); cinch (clamp) connection system; press system(by Viega); compression PEX fittings, etc.
· Home & Commercial Use
Our flexible PEX line is suitable for hot & cold water projects such as indoor or outdoor hydronic radiant heating, water supply, washing machines, snow melting driveways, H20 connections, solar heating, air conditioner piping systems, etc.
𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Type: PEX-B Tube(Oxygen Barrier)
Color: Red

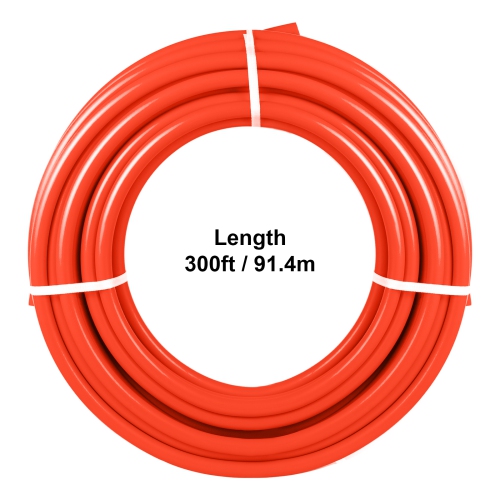

Total Length: 300 ft/ 91.4 m
Nominal Diameter: 1/2"/1.2 cm
Inside Diameter: 1/2"/1.2 cm
Outside Diameter: 5/8" / 1.6 cm
Tube Thickness: 0.07" / 1.8 mm
Pressure Ratings: 80psi @ 200F, 100psi @ 180F, 160psi @ 73F
Min.Bending Radius: 5"/12.7 cm
ANSI/NSF 14, ANSI/NSF61, NSF-Pw (certified for radiant heating applications).
UPC listed by IAPMO
SDR-9 Dimensional Standards

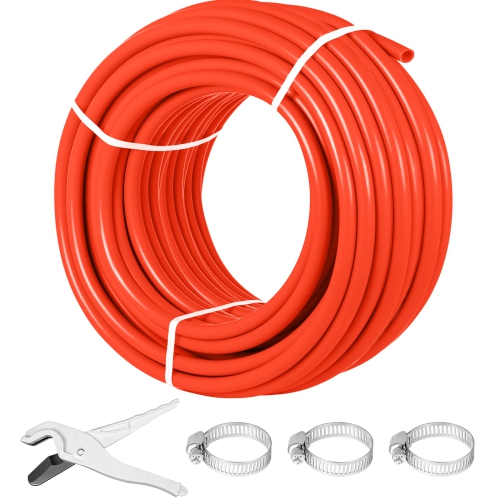

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
1 x Oxygen Barrier PEX Tube
1 x Tube Cutter
3 x Cinch Clamp Ring
· 【RELIABLE PEX MATERIAL】- Color: Red; Nominal Diameter: 1/2"; Total Length: 300 ft. Outside Diameter: 5/8"; Inner Diameter: 1/2"; Keep quick & smooth hot/cold water flows. Made of PEX material, non-toxic, crack-proof, leak-proof. Perfect for potable water or radiant floor water use.
· 【ROBUST O2 RESISTANCE】- Unique EVOH layer, stop O2 into the tube, protect metal components from corrosion. This non-broken 1/2" PEX tube can tackle different weather circumstances, no matter the high or low temperature, to ensure the integrity and safer use for longer life expectancy.
· 【PREMIUM FLEXIBILITY】- Min.5" bending radius, easy to bend for different ground situation. Compatible water temperature: -40℃ to 95℃/-40℉ to 203℉. Big pressure capacity: 80psi @ 200℉, 100psi @ 180℉, 160psi @ 73℉. Thus, to ensure its good temperature resistance, crack- & leakage-proof.
· 【EFFORTLESS INSTALLATION】- Compatible with different connection system & floor type, such as: Crimp connection system (crimp tool + crimp rings + crimp fittings); Cinch (clamp) connection system (cinch tool + St. steel clamps + crimp fittings); Press system (by Viega); Compression PEX Fittings.
· 【DIVERSE USE SCENARIO】- Suit for home & commercial use, like radiant floor heat system, solar water heater system, central air-conditioning piping system etc. Structural concrete slabs, Non-structural slabs, Staple-up (between joists) radiant floor heating with and without heat transfer plates, "Sandwich" type radiant heating (between subfloor and finished floor), Snow & ice melting systems etc.
