𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻

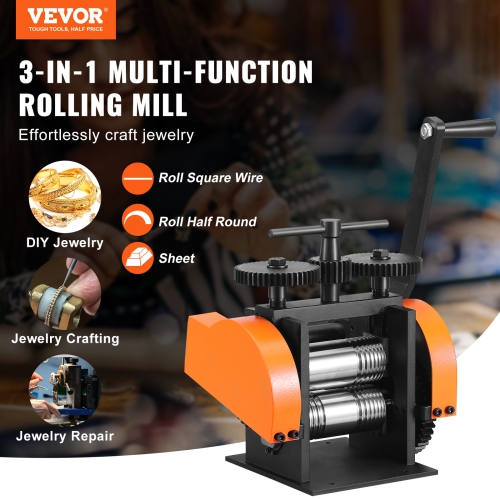

· 3-in-1 Multi-Function Rolling Mill
Designed specifically for cold-rolling metals, this rolling mill thins or refines sheet metal or wires uniformly and can even imprint textures. Crafted with precision through CNC machining, it allows for more accurate adjustments of roller spacing.
· Transform Malleable Metals
Easily shape gold, silver, and other highly ductile metals into thin sheets, square wires, and half rounds. Various size options help you process materials into the exact thickness you desire.
· Fine-Tune with Ease

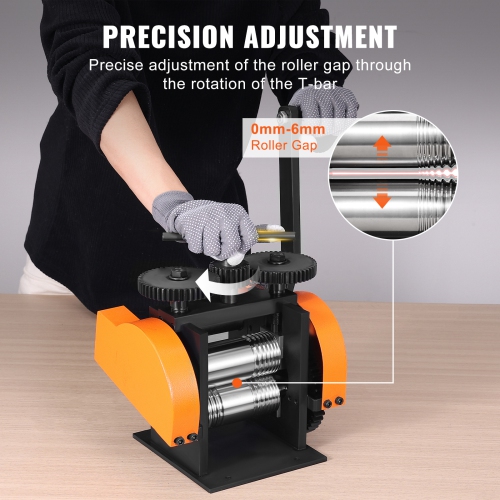

Adjust roller spacing with precision from 0 to 6mm by rotating the T-bar. With a 1:2.4 gear ratio, the handle turns the rollers efficiently, making our rolling mills effortless to operate and reducing the effort required.
· Durable Construction
The frame and gears are resilient and won't deform. The jewelry rolling mill machine body undergoes a heat treatment process, resulting in a uniformly smooth paint finish. It's also coated with rust-resistant oil for added protection. The rollers are made of tough and wear-resistant 45# steel.
· Versatile Application

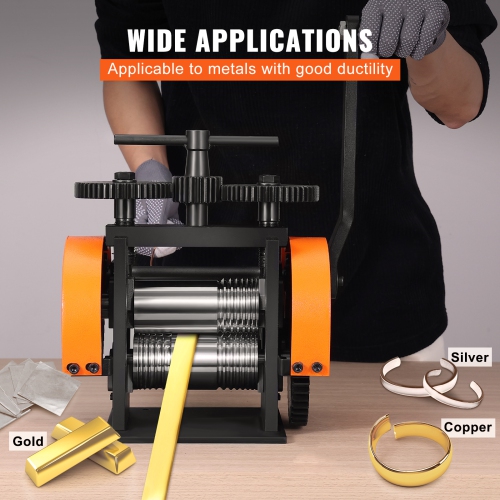

The rolling mill machine is suitable for gold, K gold, pure silver, 925 silver, copper, aluminum, and other highly ductile metals. Primarily used for crafting jewelry such as bracelets, rings, and bangles, it caters to the needs of most jewelry shops, jewelry repair services, and DIY creators.
· Comfortable Crank Handle
With a 1:2.4 gear ratio, the handle turns the rollers twice as efficiently. The deep-threaded screw design ensures a secure grip, preventing the handle from slipping during operation.
𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀

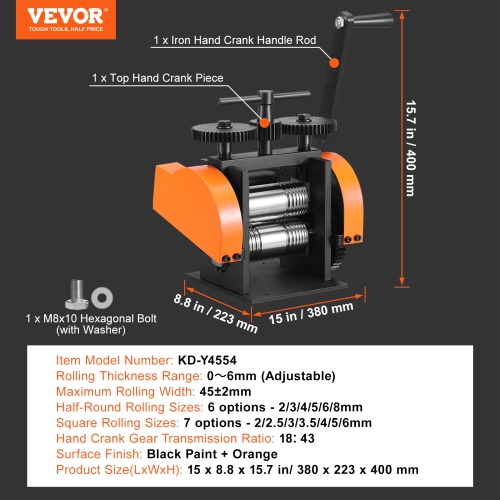

Item Model Number: KD-Y4554
Application: Press gold/platinum/K gold/brass/aluminum
Rolling Thickness Range: 0～6mm (Adjustable)

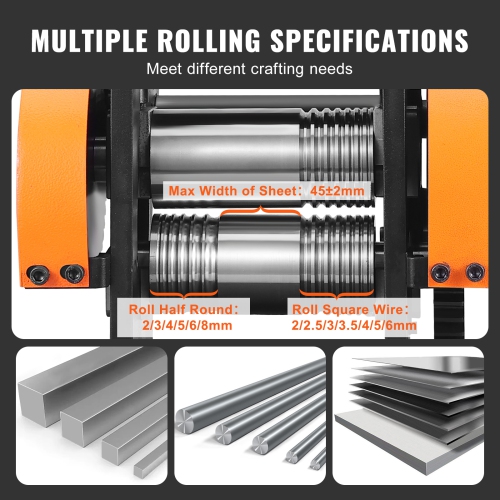

Maximum Rolling Width: 45±2mm

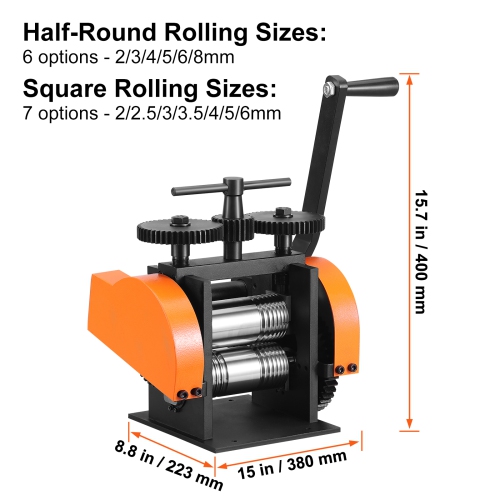

Half-Round Rolling Sizes: 6 options - 2/3/4/5/6/8mm
Square Rolling Sizes: 7 options - 2/2.5/3/3.5/4/5/6mm
Hand Crank Gear Transmission Ratio: 18:43
Top Adjustment Gear Transmission Ratio: 23:47
Surface Finish: Black Paint + Orange
Main Material: Steel
Product Size(LxWxH): 15 x 8.8 x 15.7 in/ 380 x 223 x 400 mm
Product Weight: 41 lbs / 18.6kg±3%

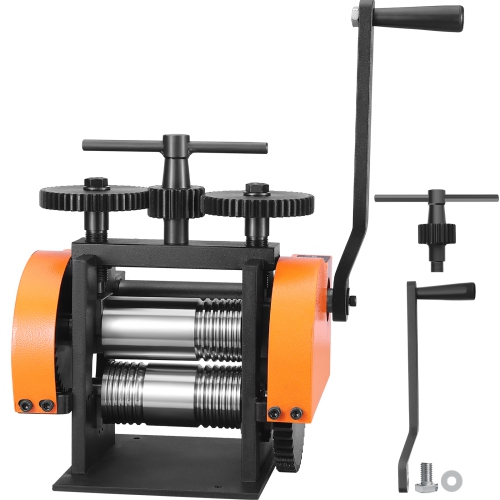

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
1 x Rolling Mill
1 x Iron Hand Crank Handle Rod (with Attached Plastic Handle)
1 x Top Hand Crank Piece
1 x M8x10 Hexagonal Bolt (with Washer)
1 x Small Bar
1 x Instruction Manual
· 3-in-1 Multi-Function Rolling Mill: Our rolling mill can easily transform malleable metals like gold and silver into thin sheets, square wires, and half-round shapes. Various size options help you process materials into the exact thickness you desire.
· Adjustable Precision Thickness: The wire roller mill features CNC-machined gears, ensuring high accuracy. The T-bar can finely adjust the roller spacing from 0 to 6mm.

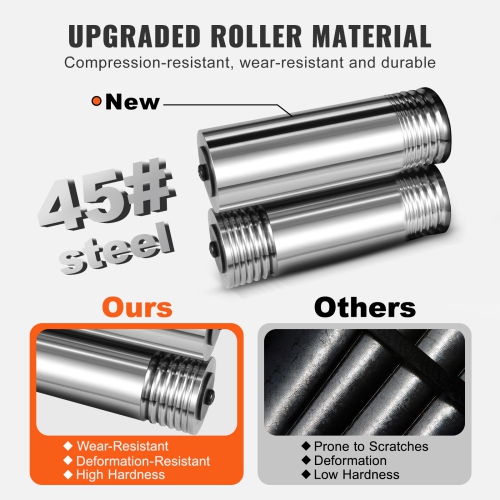

· High-Quality 45# Steel: The rollers of our rolling mills are made from 45# steel, providing exceptional wear resistance and high hardness, ensuring durability and preventing scratches, resulting in a smooth mirror-like finish on your metalwork.
· Rust and Corrosion Protection: The surface of the rolling mill machine body undergoes heat treatment and is coated with rust-resistant oil. The machine is constructed using iron plates and 45# steel, providing excellent wear resistance and corrosion resistance.
· Wide Range of Applications: Our jewelry rolling mill machine is suitable for gold, K gold, pure silver, 925 silver, copper, aluminum, and other highly malleable metals. It is ideal for crafting bracelets, rings, bangles, and other jewelry, catering to the needs of both jewelry professionals and DIY enthusiasts.
