𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻
· Complete Specifications

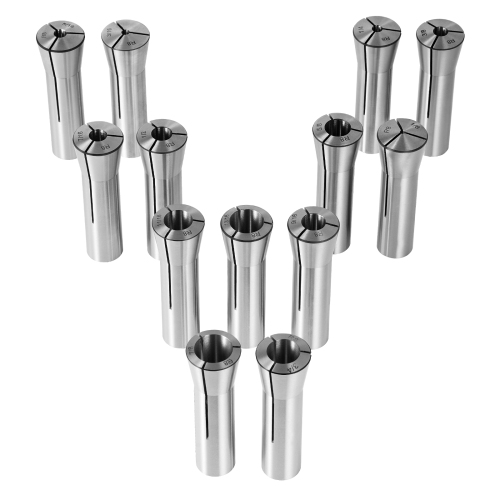

Get ready to tackle a wide range of machining tasks with confidence. Our 13-piece R8 collet chuck set offers a comprehensive selection, with a clamping capacity from 1/8" to 7/8". Crafted from robust 45#, we provide unwavering stability for your machining projects.
· Outstanding Performance
When it comes to high-speed milling of precision parts, the stability of your collet is paramount. Our R8 collet chucks are hardened and precision-ground to ensure a rock-solid grip on your workpieces. No more worries about deformation.
· Corrosion-Resistant Excellence
Our collet chucks feature a polished finish that not only enhances precision but also boosts corrosion resistance. It ensures stable performance even in humid environments, providing an extended lifespan.

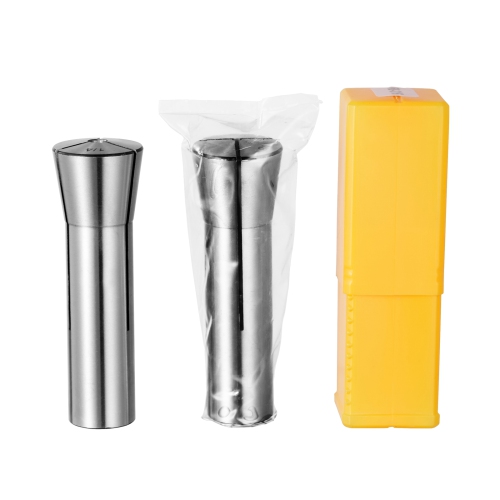

· Labeled Storage Box
With individually labeled storage boxes for each collet chuck, you can easily pick and place them, keeping your workspace tidy and your workflow efficient. Say goodbye to scattered tools and embrace the convenience of organized precision.
· Wide Application
Our R8 collet chucks are versatile and suitable for milling machines, drill presses, boring machines, machining centers, and other equipment. They cater to the diverse machining needs of different machinery, enhancing work efficiency and production versatility.
· Anti-Rust Oil Immersion
To preserve the quality and performance of our collet chucks, we soak them in rust-proof oil before shipping to resist corrosion and oxidation. Upon receiving the collet chucks, a quick cleaning is all that's needed for you to experience top-notch performance and durability.

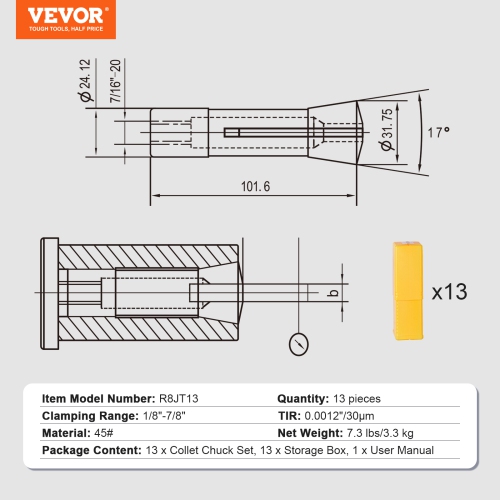

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Item Model Number: R8JT13
Quantity: 13 pieces
Clamping Range: 1/8"-7/8"
TIR: 0.0012"/30 μm
Material: 45#
Net Weight: 7.3 lbs/3.3 kg
Product Dimensions: φ1.3 x 4.1 in/φ32 x 103 mm
𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
13 x Collet Chuck Set
13 x Storage Box
1 x User Manual

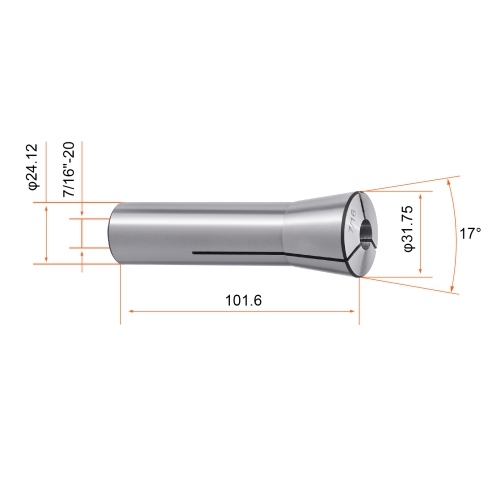

· Standard Size: Our R8 collet chucks are designed to clamp diameters ranging from 1/8" to 7/8". The drawbar thread is 7/16"-20 UNF, and the precision is an impressive 0.0012 in/30 μm, ensuring top-notch accuracy for your machining needs.

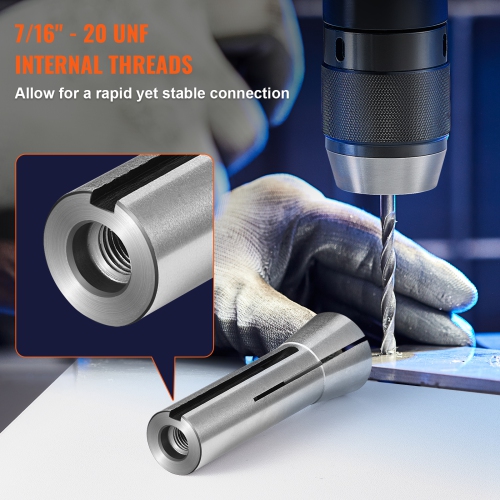

· Internal Thread Design: Our R8 collet chucks feature an internal thread design that makes it easy to tighten end mills. Whether you're cutting keyways, securing double-ended end mills, or tackling any other machining task, our collet chucks handle it with ease. Say goodbye to clamping challenges, boost your work efficiency, and make your machining tasks run smoothly.
· High-Quality Materials: Our R8 collet chucks are crafted from sturdy 45#, hardened and precision-ground, making them suitable for high-speed milling of precision parts, high-strength grinding, and various machining scenarios. It also ensures the durability of the collet chucks and effectively addresses deformation issues during machining.

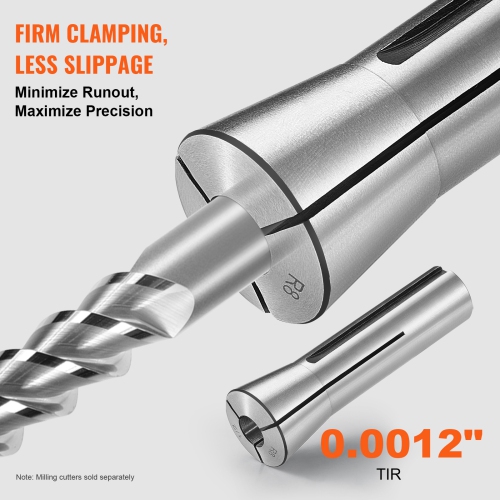

· High Precision: With 0.0012 in TIR, our R8 collet chuck set finds applications across various industries, including aerospace, automotive manufacturing, medical equipment, electronics, and more. It ensures precise machining to meet the high manufacturing standards of these industries.

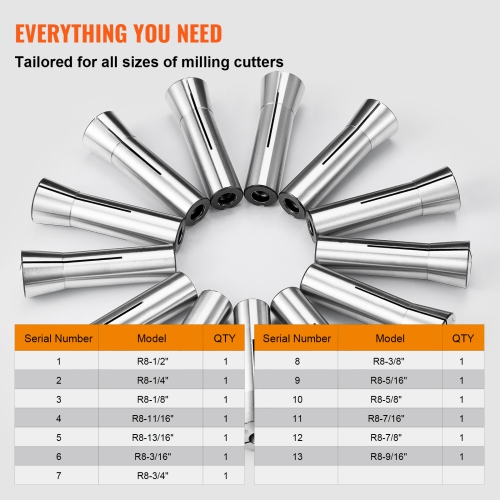

· Collet Chuck Specifications: Our R8 collet chuck set includes 13 different collet chuck sizes to accommodate various needs: 1/2 inch, 1/4 inch, 1/8 inch, 11/16 inch, 13/16 inch, 3/16 inch, 3/4 inch, 3/8 inch, 5/16 inch, 5/8 inch, 7/16 inch, 7/8 inch, and 9/16 inch.
