𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻

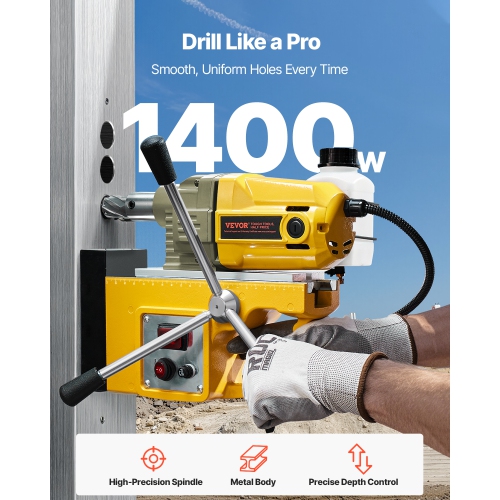

· Powerful Performance

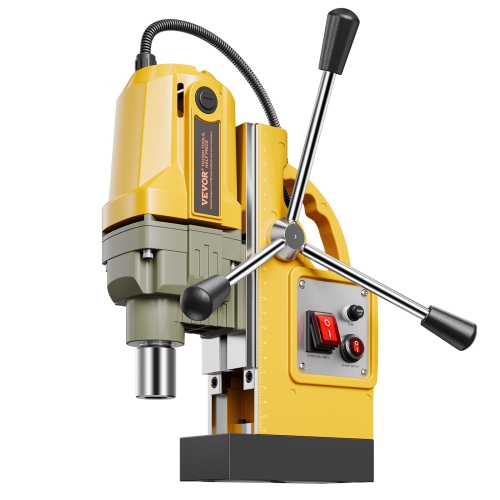

Our mag drill boasts a robust 1400W motor with a speed of 800 RPM, significantly enhancing drilling efficiency—ideal for projects that require extensive drilling. Its stable operation ensures smoother handling, greater precision, and a more comfortable user experience.

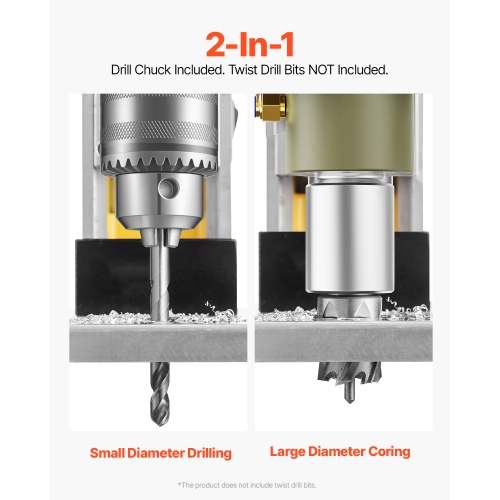

· Versatile Drilling Capabilities
Equipped with an 11-piece annular cutter set and a professional twist drill chuck, our magnetic drill press meets all your drilling needs in one purchase. From small DIY tasks to large-scale industrial projects, this magnetic drill has you covered.
· Precision Depth Control
The built-in depth gauge allows you to directly observe and precisely control the drilling depth during operation. This ensures the drilled holes meet exact specifications, making the mag press ideal for machining, construction installation, and applications requiring strict depth accuracy.
· Durable Dovetail Guide Rails
The dovetail guide rail structure offers exceptional rigidity, capable of withstanding heavy cutting forces and torque. Even when tackling hard materials or demanding drilling tasks, the magnetic drill maintains the magnetic drill's overall stability and performance.

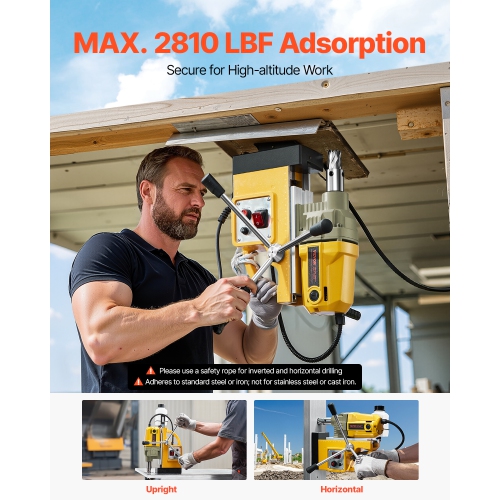

· Strong Magnetic Adhesion
With an impressive magnetic adhesion of 2810 lbf (12500N) and an included security strap, the mag base drill provides unwavering stability during inverted, vertical, or side drilling tasks. This minimizes vibration and ensures both precision and reliability in your operations.
· Stable Base
The low center of gravity is expertly designed to ensure stability and prevent wobbling, giving you confidence to handle even the complex or time-consuming tasks with ease.

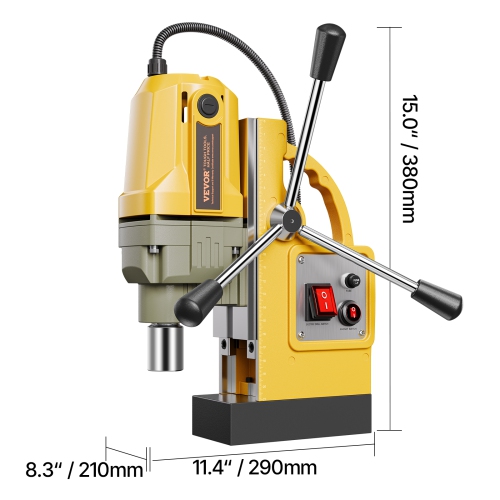

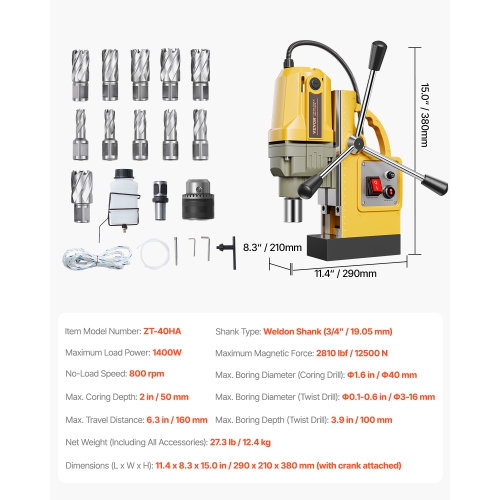

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Item Model Number: ZT-40HA
Shank Type: Weldon Shank (3/4" / 19.05 mm)
Maximum Load Power: 1400W
Maximum Magnetic Force: 2810 lbf / 12500 N
No-Load Speed: 800 rpm
Max. Boring Diameter (Coring Drill): Φ1.6 in / Φ40 mm
Max. Coring Depth: 2 in / 50 mm
Max. Boring Diameter (Twist Drill): Φ0.1-0.6 in / Φ3-16 mm
Max. Boring Depth (Twist Drill): 3.9 in / 100 mm
Max. Travel Distance: 6.3 in / 160 mm
Net Weight (Including All Accessories): 27.3 lb / 12.4 kg

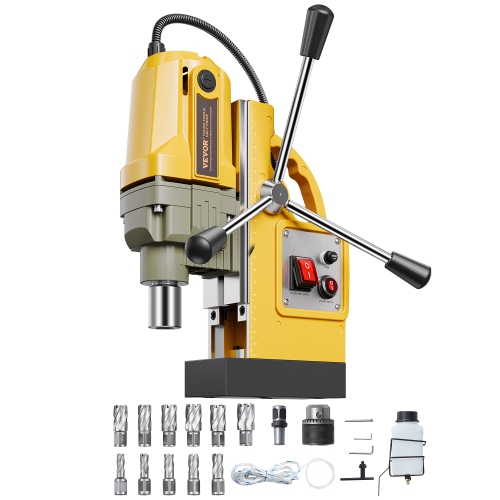

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
1 x Drill Chuck Key
1 x Drill Chuck
1 x Coolant Tank + Stand
1 x Coolant Tube
1 x Rope
1 x Thimble
2 x Hex Keys
1 x Conversion Joint

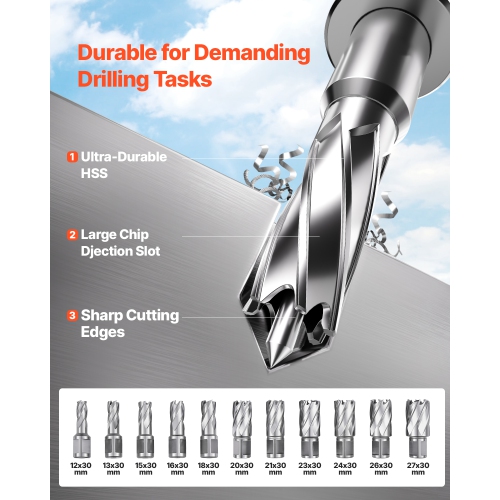

11 x Weldon Shank Coring Bits
3 x Hand Cranks
1 x User Manual
· Top-level Magnet: Get ready for unstoppable power! Our electric mag drill generates exceptionally powerful driving force with its 1400W copper motor. It is capable of drilling into the toughest material at 800 RPM. Max. Boring Diameter (Coring Drill): Φ1.6 in / Φ40 mm; Max. Coring Depth: 2 in / 50 mm
· Understand the Power: 2810 lbf / 12500N of robust force is created by the electromagnetic thickened base, featuring pure iron anchors the mag drill press solidly works at any angle stably during the drilling process. It comes with 11 pcs coring bits for your different drilling needs

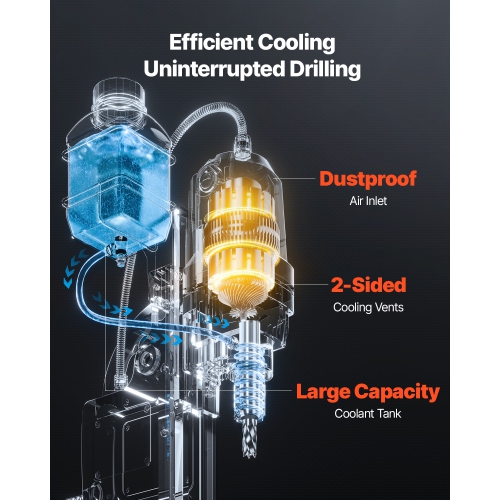

· Security and Durability: Your security comes first! That is why the combined overload protection features are in place. The cooling system features fast heat dissipation to protect operators from being hurt by instantaneous overpowering and high temperatures during drilling Besides, the premium alloy guide rail has anti-corrosion and wear resistance characteristics, significantly improving the device's service life
· User-friendly design: A scale has been added to the machine's frame to help users pinpoint the distance between the drill bit and the drilled material in millimeters. Even a novice can bore accurate and neat holes. In addition, the ergonomically designed handle and 3 extended cranks provide a comfortable grip during handling and moving, saving great effort
· Wide Applications: This versatile magnetic drill plays a vitally important role in home improvement, equipment installation, industrial and steel fabrication, ship and bridge building, railway manufacture, windmill & power-plant construction, and many other fields. Note: Ensure optimal use by adhering to a steel plate thickness of ≥ 0.39 in / 10 mm. Not suitable for stainless steel or cast iron. Please use a safety rope for inverted and horizontal drilling
