𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻
· Multiple Installation Methods
We offer standard installation, frame installation, and parallel installation methods. The specific installation steps may vary slightly. Please choose the installation method that suits your needs.
· Precautions
Before installation, ensure that the door frame and door are on the same plane, and select and purchase models of different sizes and load-bearing capacities according to the size of the installed door.
· Suitable for Various Doors
Whether it's a security door, wooden door, fire door, or aluminum alloy door, our hydraulic door closer can perfectly adapt to provide you with a safe and reliable door control solution.
· Versatile Use
Not limited by scenes, the hydraulic door closer can be widely used in home doorways, office buildings, mall entrances, and hospital fire doors, meeting the personalized needs of different users for door control.
· Everything You Need in One Box
The complete set of accessories we provide ensures that you can easily complete the installation without the need to purchase additional accessories, making your installation process more convenient and smooth.
· Silent Design
The door closer reduces friction and noise during the closing process, providing a quiet condition for you and your family when installed on bedroom doors.

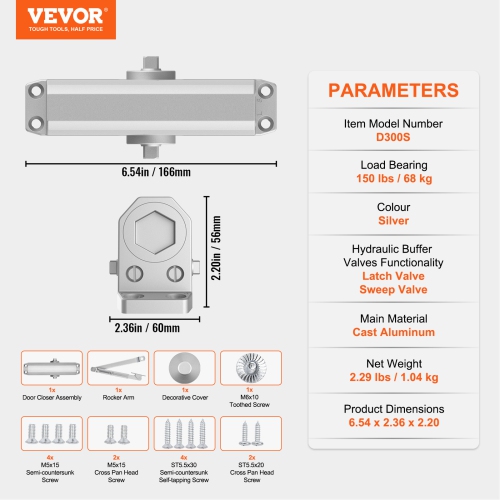

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Model:D300S
Load Bearing: 150 lbs / 68 kg
Colour: Silver
Door Opening Angle: ≥115°

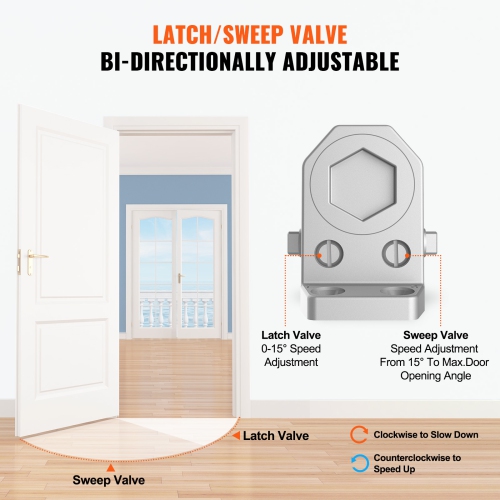

Hydraulic Buffer Valves Functionality: Latch Valve, Sweep Valve
Main Material: Cast Aluminum
Net Weight: 2.29 lbs / 1.04 kg

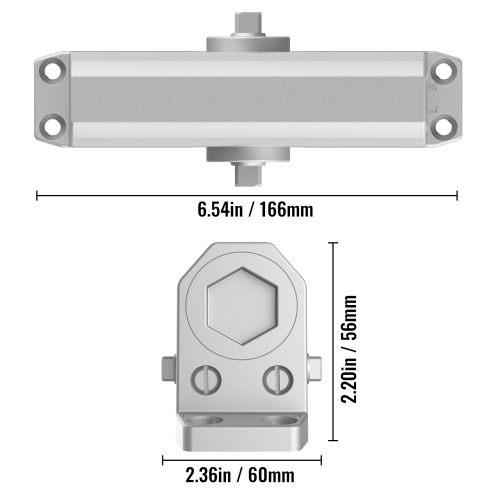

Product Dimensions: 6.54 x 2.36 x 2.20 inch / 166 x 60 x 56 mm
𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
Door Closer x 1
M5x15 Semi-countersunk Screw (Silver Gray) x4
M5x15 Cross Pan Head Screw (Silver Gray) x2
STx5.5x30 Semi-countersunk Self-tapping Screw (Silver Gray) x4
STx5.5x20 Cross Pan Head Screw (Silver Gray) x2
M6x10 Toothed Screw (Silver Gray) x1
Decorative Cover x1
Rocker Arm x1
Door Closer Assembly x1
User Manual x1

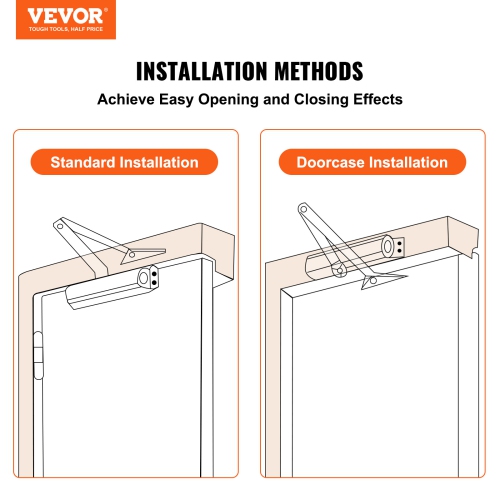

· Three Installation Methods: Each suitable for different door types and décor needs: Standard installation fits most door types, simple and sturdy; Frame installation maintains the original appearance of the door without modification; Parallel installation is suitable for occasions where multiple doors need to close simultaneously, improving efficiency.

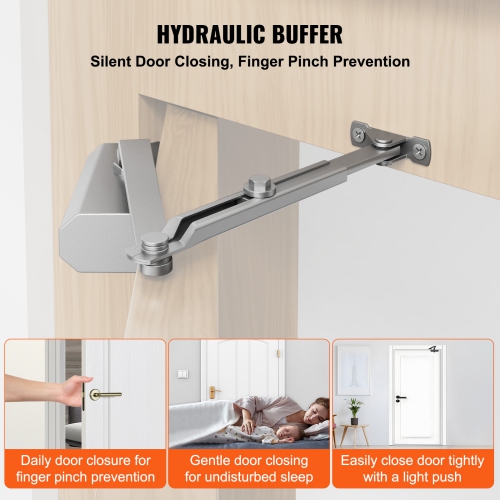

· Secure & Seamless: Utilizing BC valve recoil buffering technology effectively prevents accidents such as finger pinching, while allowing for easy and tight door closure, ensuring safety without disturbing sleep. Our auto door closer ensures smooth door closure while preventing slamming.
· Fully Adjustable: You can flexibly adjust the locking and closing speed of the door according to actual needs. Simultaneously, precise control of the door's buffering effect can be achieved by adjusting the cushioning force, providing a more personalized door closing experience.

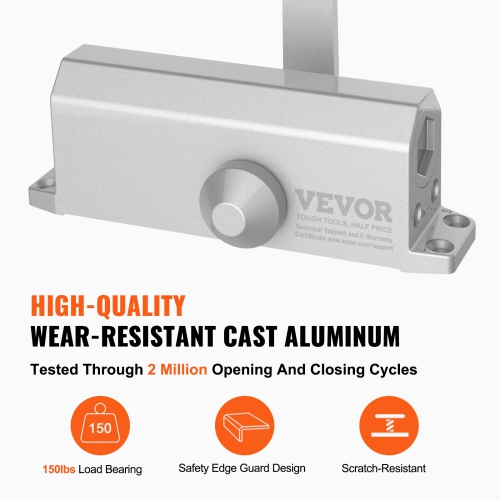

· High-quality Cast Aluminum: Wear-resistant, corrosion-resistant, and passed 2 million opening and closing tests, ensuring product durability and stability. Additionally, the 150 lbs / 68 kg load-bearing capacity and anti-edge design, along with wear and scratch resistance, further enhance the product's practicality and safety.

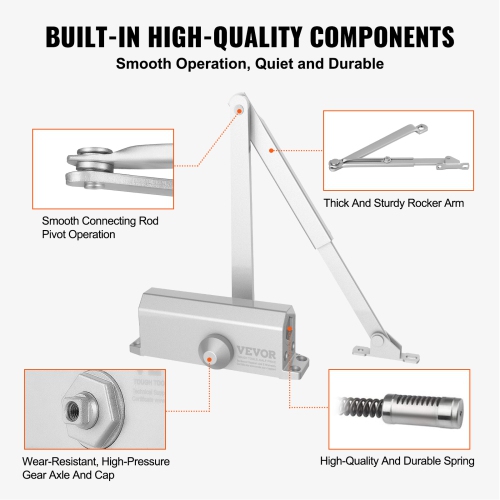

· High-quality Components: Ensure smooth and unobstructed opening and closing of the connecting rod pivot, wear-resistant and high-pressure gear shafts and caps, thick and sturdy rocking arms, and high-quality durable springs provide you with a stable, durable, and quiet user experience.
