VEVOR 18"x20" Heat Exchanger Water to Air, with 3-Row 3/8" Copper Ports, 242 Aluminum Fins Heat Exchanger for Wood Furnaces, Residential Heating and Cooling, and Forced Air Heating

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻

· Thickened Interface

Our heat exchanger features a thickened interface with smooth threads for easy and convenient connection.

· High Efficiency and Energy Saving

This heat exchanger heats liquids with irregular plates, requiring no electricity or wood burning, providing hot water at low cost, making it cost-effective and practical.

· Dual Use

The heat exchanger has 2 interfaces, suitable for operating temperatures of -40-356℉/-40-180°C, with the outlet positioned above the inlet.

· Multiple Sizes Available

Our heat exchanger comes in 3 different sizes to meet your needs.

· High Compatibility

This compact, lightweight water-to-air heat exchanger offers high efficiency and durability, suitable for outdoor wood stoves, residential and commercial heating and cooling, hybrid systems, and air conditioning.

· Secure to Use

For safety, the entire unit is designed with smooth edges, ensuring no hand injuries during use.

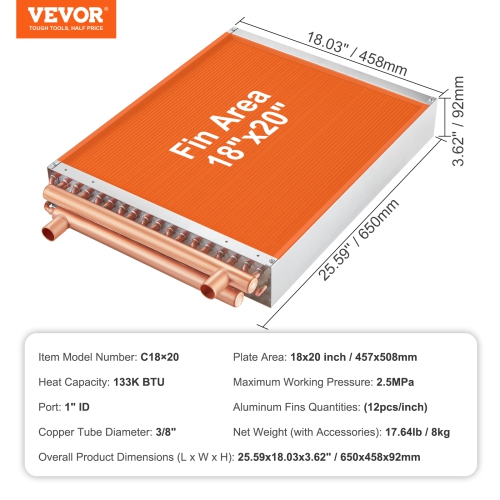

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀

Model: C18×20

Heat Capacity: ≥133K BTU

Plate Area: 18 x 20 in / 45.72 x 50.8 cm

Number of Copper Tubes: 3-Row 3/8"

Number of Aluminum Fins: 242 Pcs

Maximum Working Pressure: 2.5MPa

Operating Temperature: -40°C-180°C / -40°F -356°F

Color: Gold

Main Materials: Copper

Net Weight (with Accessories): 17.64lb / 8kg

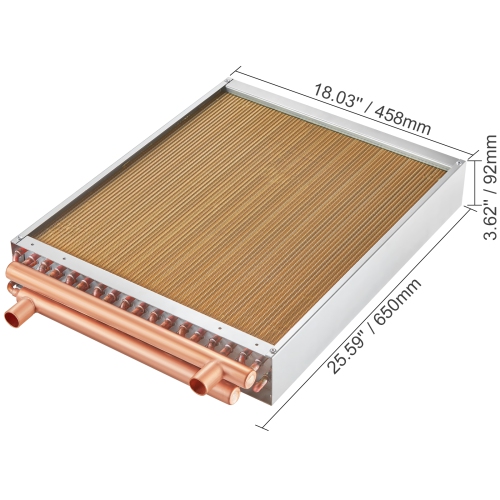

Product Dimensions (L x W x H): 25.59x18.03x3.62" / 650x458x92 mm

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁

Heat Exchanger x 1

· High-Quality Materials: The entire unit is copper brazed at edges and contact points, forming a durable and leak-resistant piece that withstands high pressure and temperature. CE certified for reliable quality.

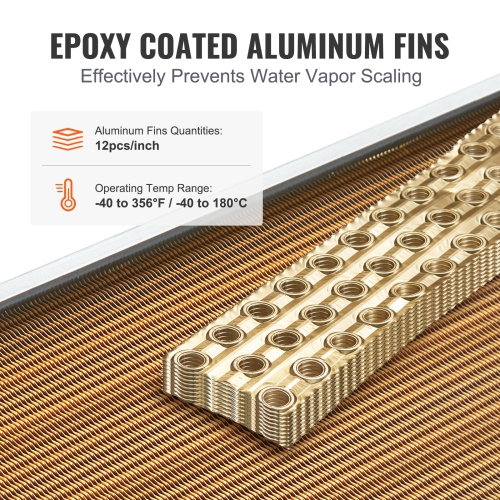

· Durable and Corrosion-Resistant: Features epoxy-coated fins, providing high hardness, wear resistance, and corrosion protection. This reduces internal water vapor scaling, promoting maximum heat exchange between air and fins. Suitable for operating temperatures of -40-356℉ / -40-180°C.

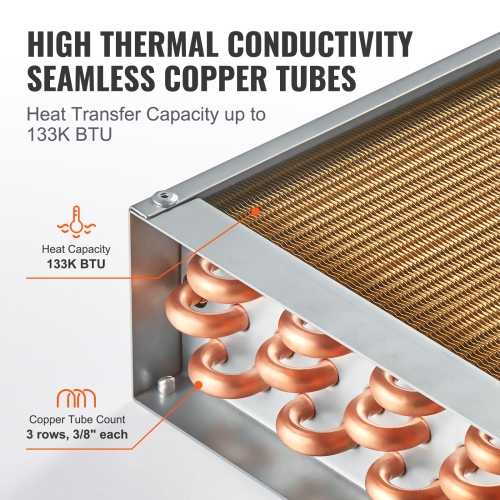

· Efficient Heat Transfer: The heat exchanger generates up to 160kBtu per hour, with 12 aluminum fins per inch and 3 rows of 3/8" seamless copper tubes. The threaded copper tubes increase the contact area and capacity of the fluid medium, significantly enhancing the heat exchanger's performance.

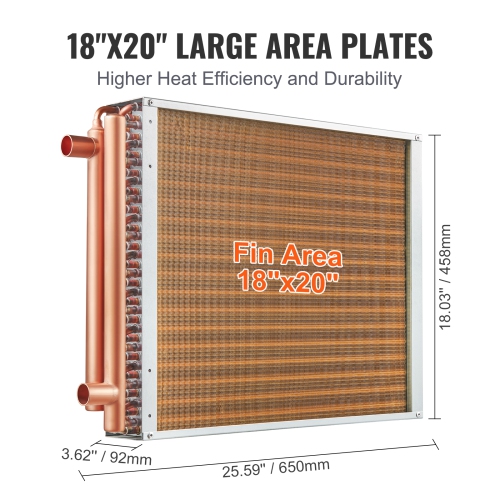

· Large Heat Exchange Area: With an effective heat exchange area of 18”x20” and 242 fins, this heat exchanger provides excellent heat transfer performance to meet various needs.

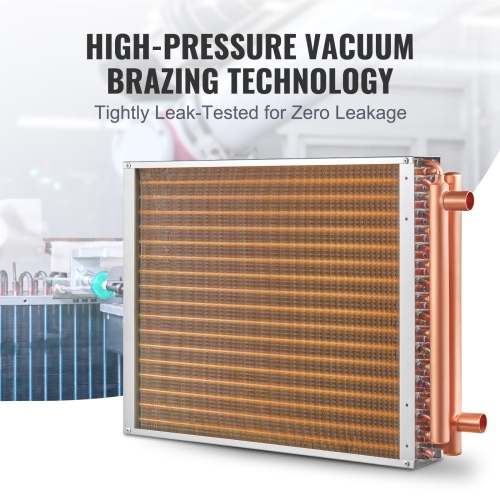

· Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes rigorous leak testing, ensuring long life and high reliability.
