ยท Heatwave Floor Heating Mat
The floor heating mat is designed to elevate the temperature from the bottom up. It eliminates the stuffiness and dryness often experienced in rooms heated by forced ventilation, providing a luxurious experience.
ยท Premium Grid Design
The special grid design makes indoor installation easier and adaptable to corners, angles, and fixed obstacles, especially in bathrooms. The grid can be cut arbitrarily, DO NOT CUT THE WIRES.
ยท Easy Install and Use
Built-in GFCI is convenient for ground fault detection. It also includes a floor sensor that precisely controls the temperature, ensuring maximum comfort and energy efficiency.
ยท Installation Monitor
If heating elements are cut or damaged, the monitor warns to prompt any necessary repairs. By detecting issues promptly, repetitive work can be avoided.

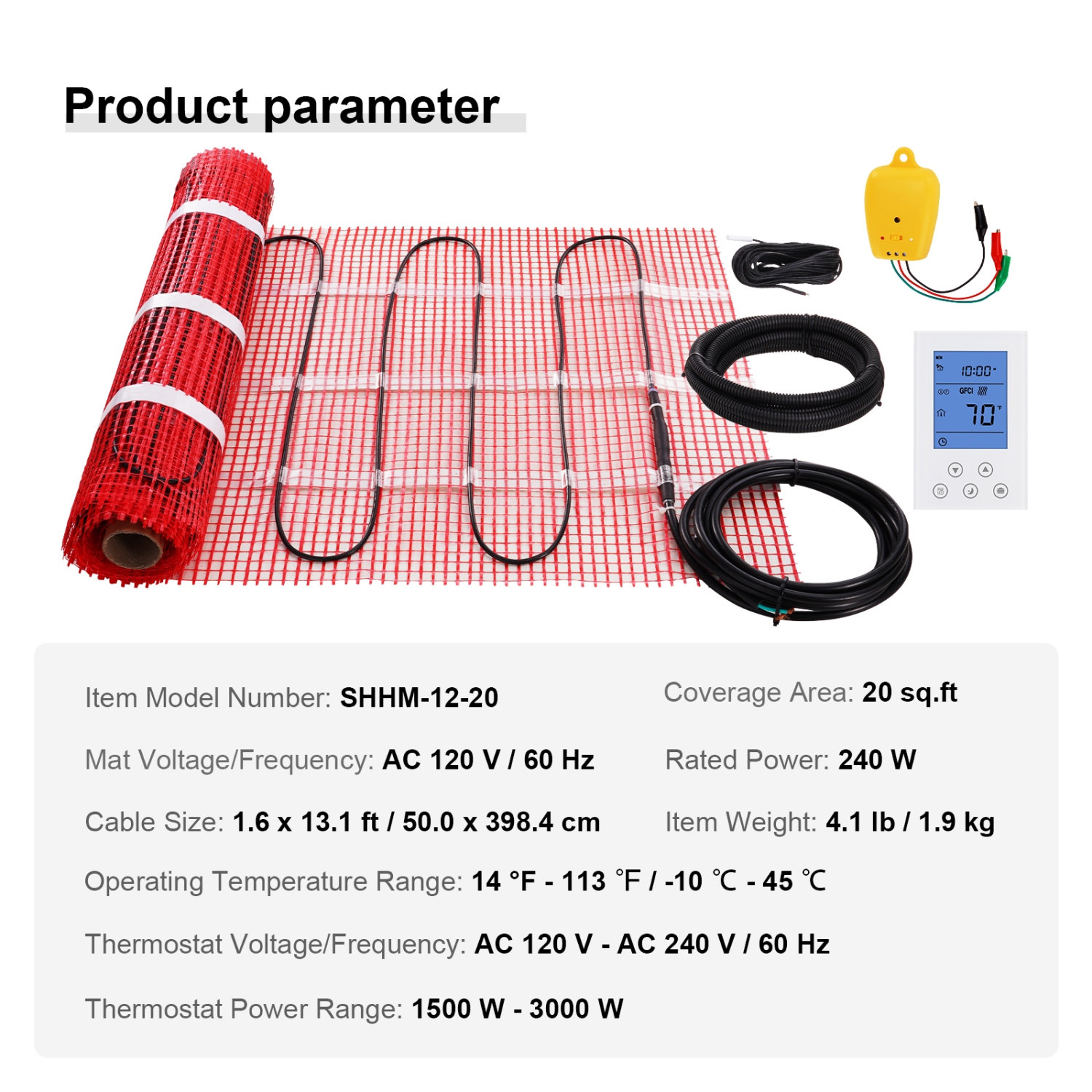

๐ฆ๐ฝ๐ฒ๐ฐ๐ถ๐ณ๐ถ๐ฐ๐ฎ๐๐ถ๐ผ๐ป๐
Item Model Number: SHHM-12-20
Voltage/Frequency: AC 120 V / 60 Hz
Rated Power: 240 W
Operating Temperature Range: 14 ยฐF - 113 โ / -10 โ - 45 โ
Cable Size: 1.6 x 13.1 ft / 50.0 x 398.4 cm
Coverage Area: 20 sq. ft
Thermostat Voltage/Frequency: AC 110 V - AC 240 V / 60 Hz
Thermostat Power Range: 1500 W - 3000 W
Item Weight: 4.1 lb / 1.9 kg

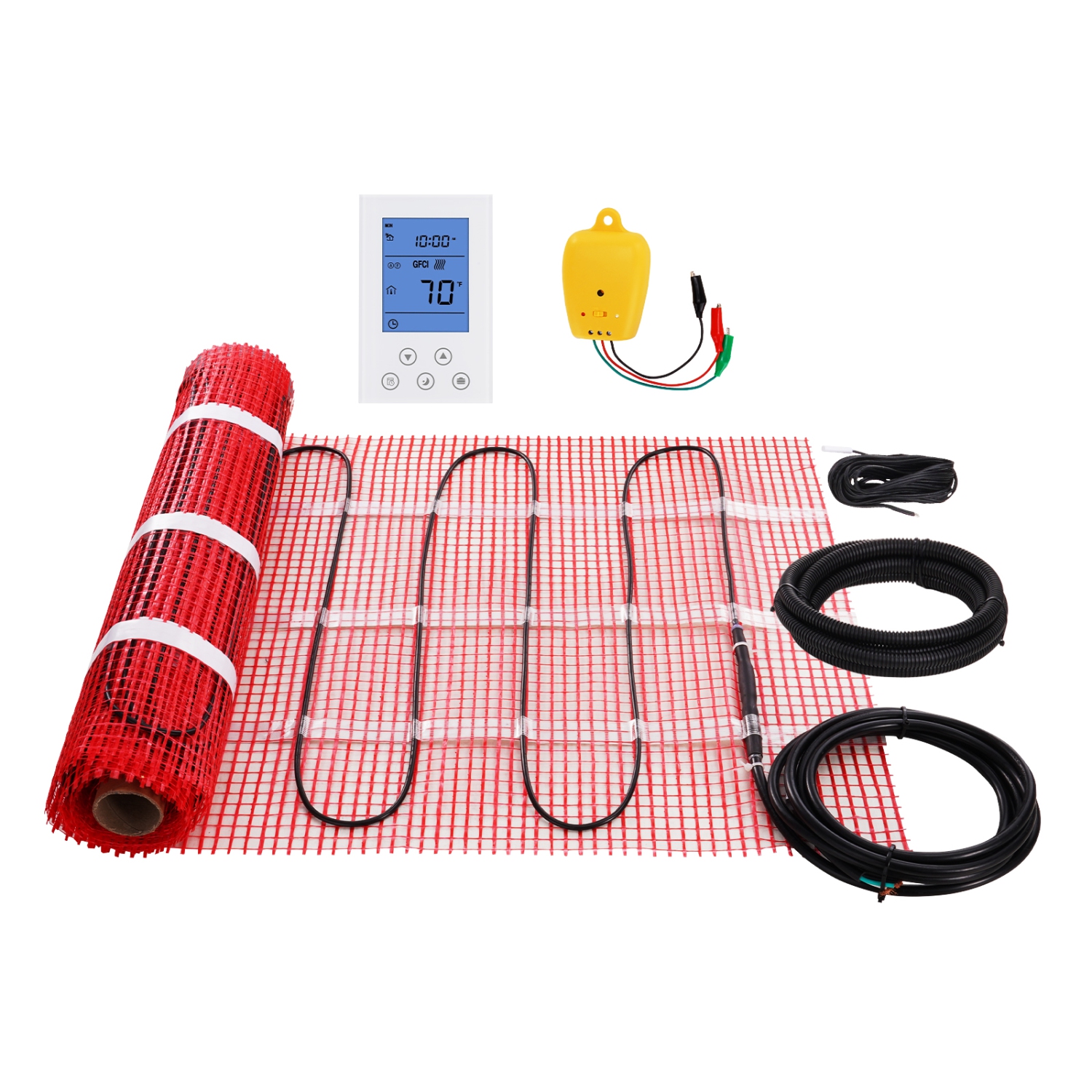

๐ฃ๐ฎ๐ฐ๐ธ๐ฎ๐ด๐ฒ ๐๐ผ๐ป๐๐ฒ๐ป๐
1 x Thermostat
1 x Alarm
1 x Floor Temperature Sensor
1 x User Manual

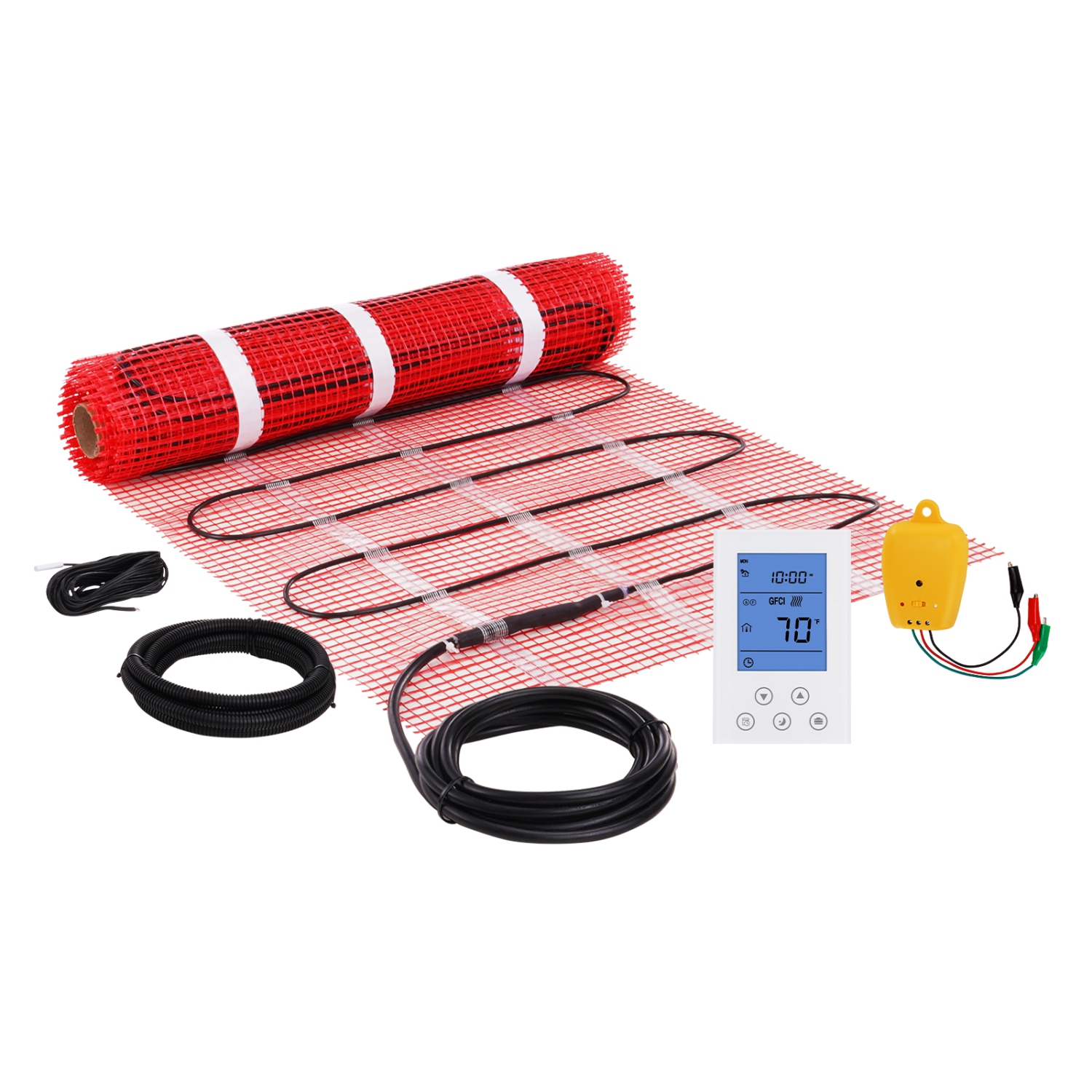

ยท Comfortable and Uniform Heating: The 20 Square Feet floor heating cable kit includes the heating mat, thermostat, alarm, and floor temperature sensor. The heating mat elevates the temperature from the bottom up, bidding farewell to the stuffiness and dryness of ordinary heaters. Cable Size: 1.6 x 13.1 ft / 50.0 x 398.4 cm

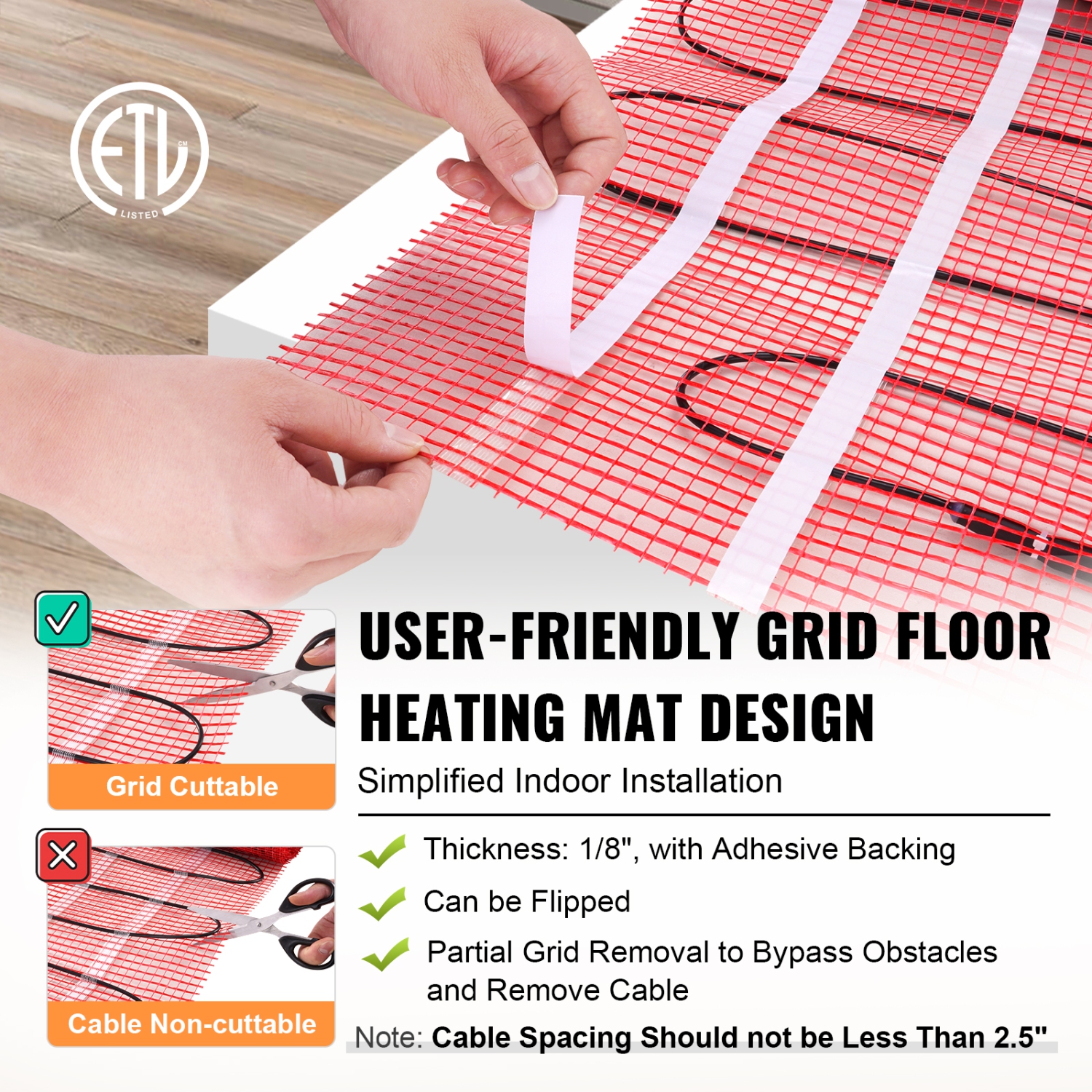

ยท Easy to Install: The 2" spacing allows for cutting, rotating, and flipping. The heating mat is 1/8 inch thick with double-sided adhesive, adhering to the subfloor and remaining flat even when converted. DO NOT CUT THE CABLE. The heating wires must be embedded in a self-leveling underlayment, thin-set mortar, or cement.

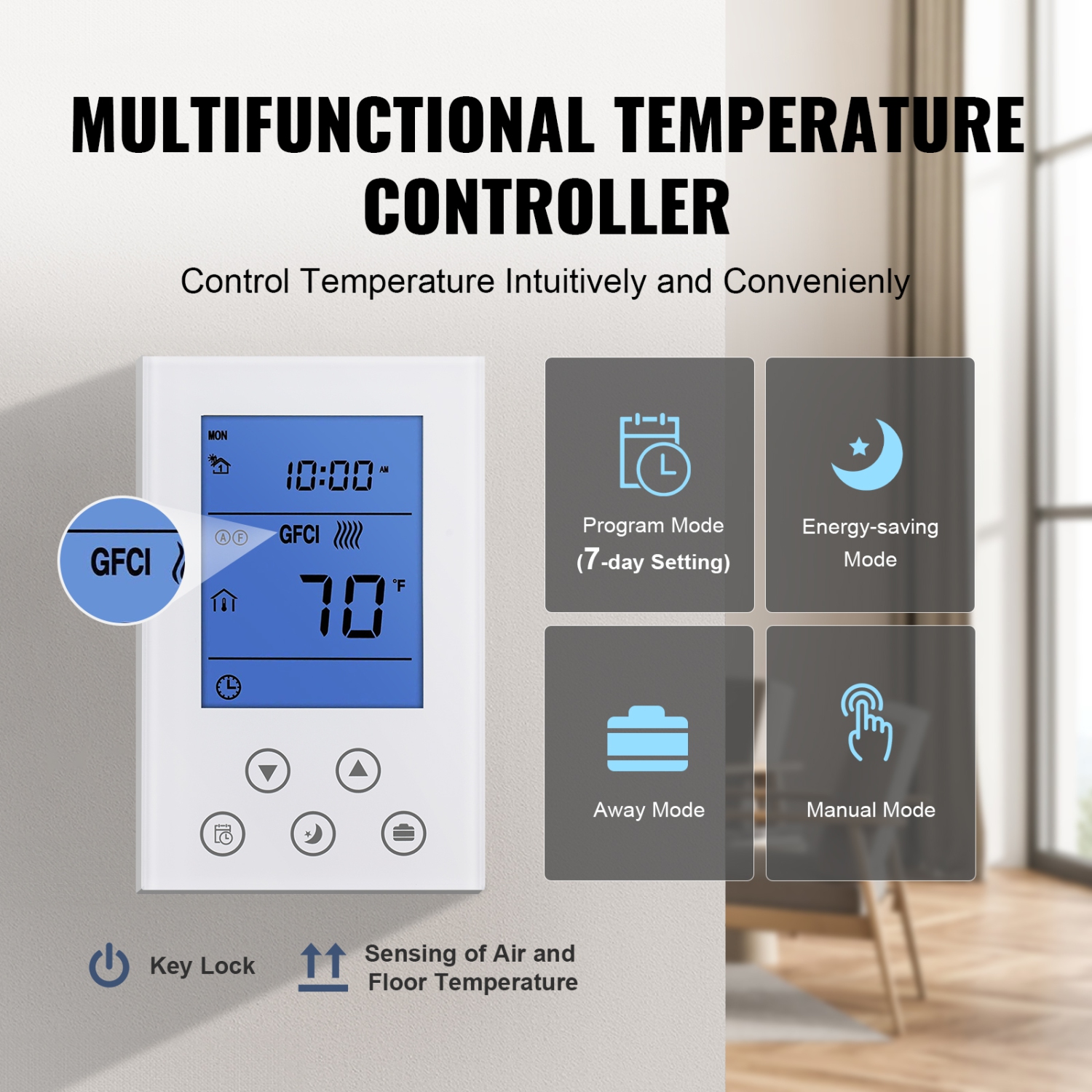

ยท Programmable Thermostat: The touchscreen thermostat is easy to use. The thermostat has a built-in GFCI (Ground Fault Circuit Interrupter) for protection. Features include dual sensing (air/floor), power logging, and child lock. It offers four temperature control modes, including a 7-day scheduling feature that eliminates repetition.

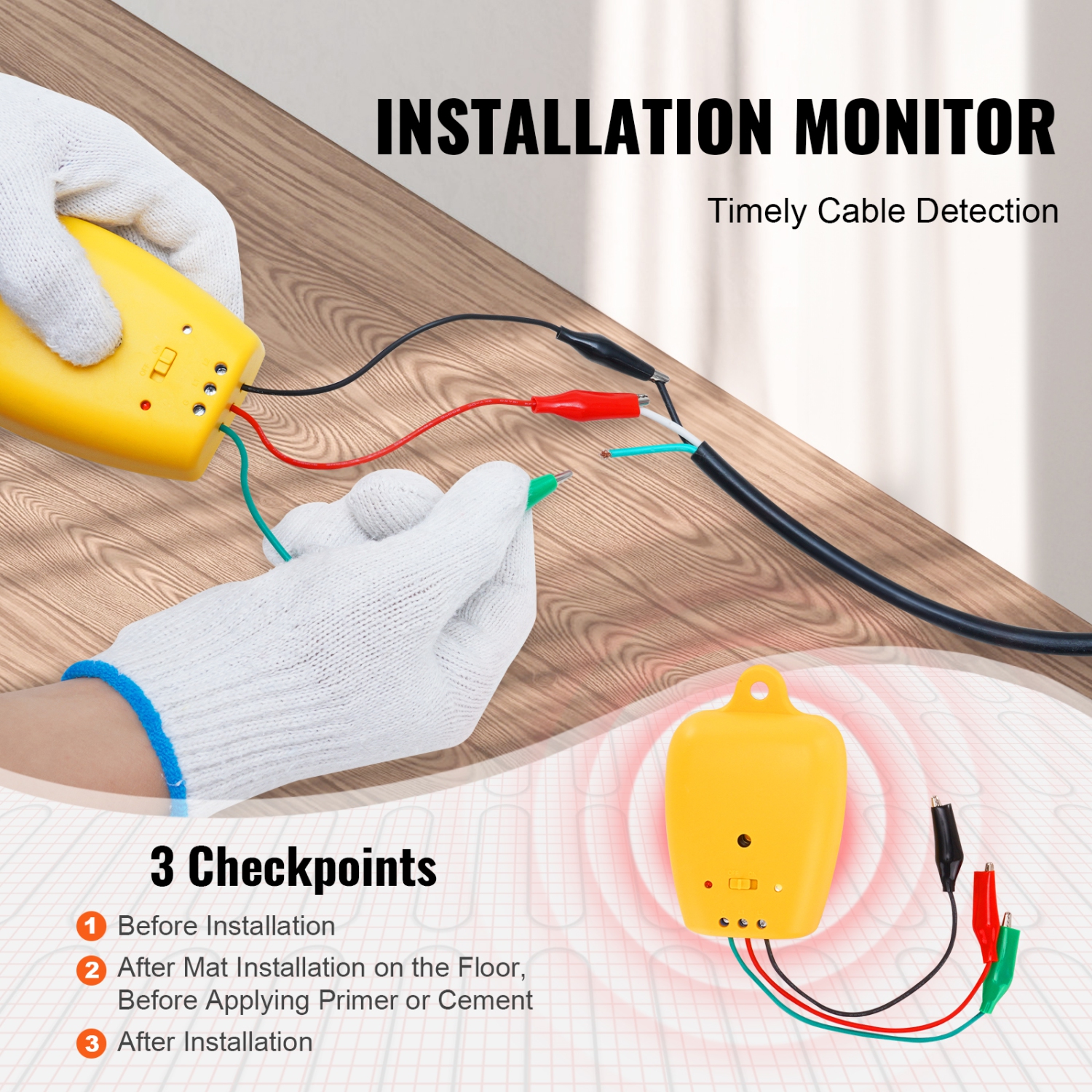

ยท Timely Cable Inspection: The installation monitor in the kit eliminates the need for additional purchases. Ensuring the proper functioning of the underfloor heating cable, avoiding the need to move and re-pour concrete under the floor. When selecting the size, round up your floor space. For example, a floor of 2.6 square meters requires a 2 square meter mat to avoid excess coverage.

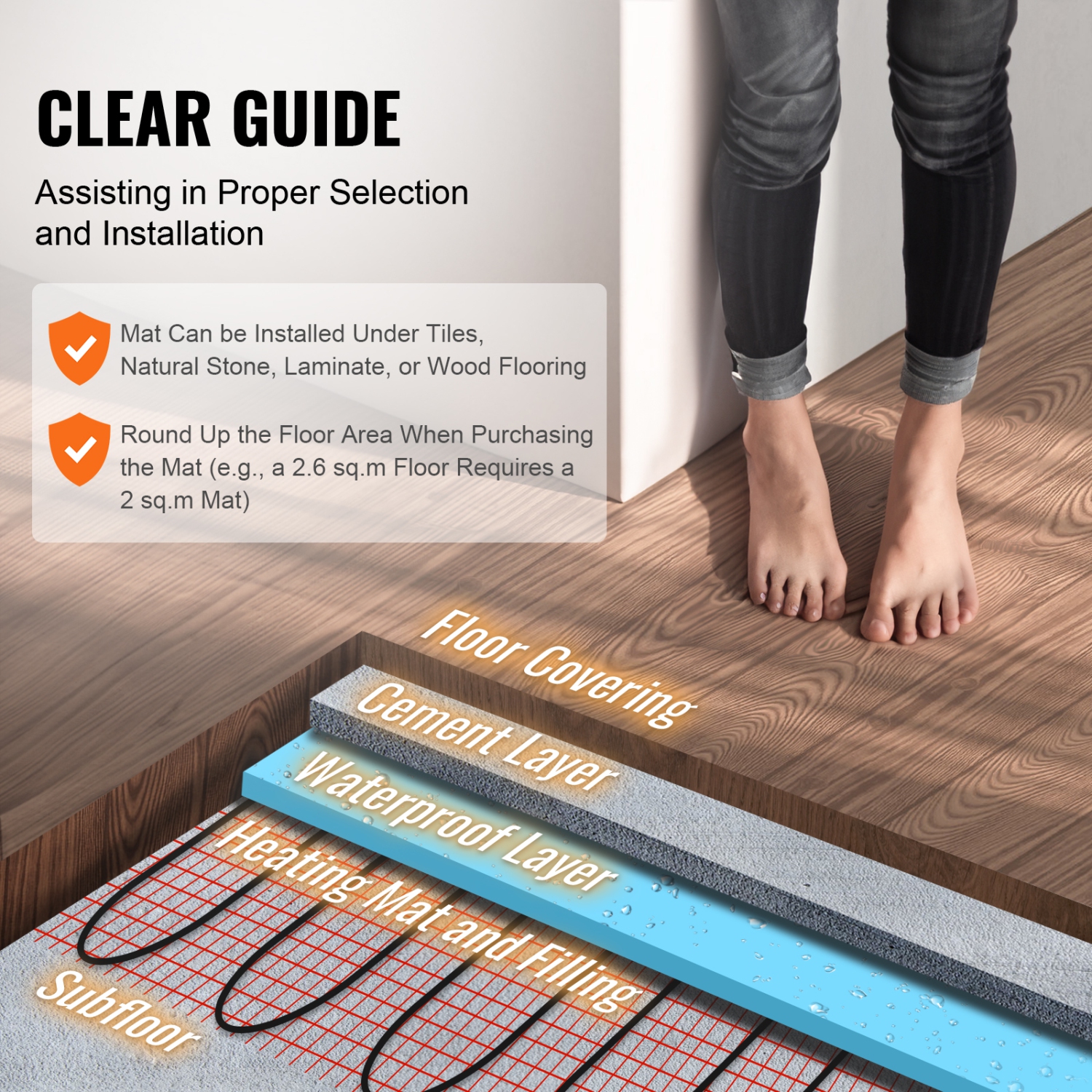

ยท Comprehensive Installation Guide: The radiant floor heating system provides a detailed installation and usage guide in the instruction manual. It helps you choose the correct size and provides guidance for installation and usage. The heating mat can be installed beneath ceramic tiles, natural stone, laminate, or wooden flooring.
