饾棧饾椏饾椉饾棻饾槀饾棸饾榿 饾棗饾棽饾榾饾棸饾椏饾椂饾椊饾榿饾椂饾椉饾椈

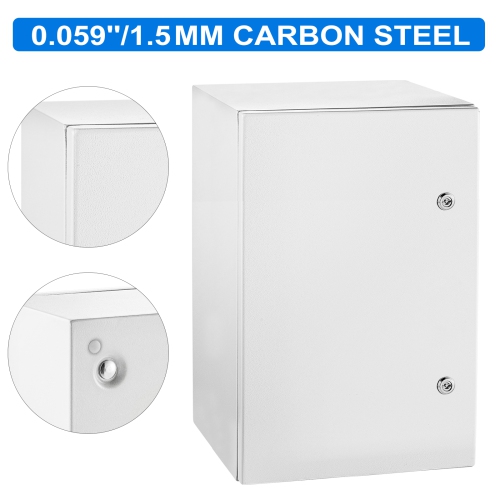

路 Premium Carbon Steel
The electrical box is made of 0.059''/1.5 mm cold-rolled steel, features high toughness, pressure resistance, and rust resistance. The shell is made of epoxy polyester powder coating, which has good mechanical and leveling properties.

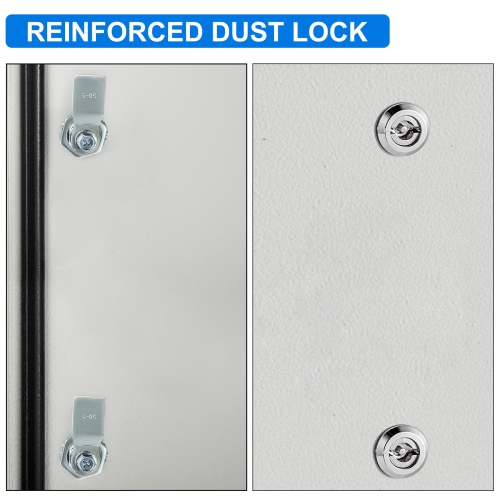

路 Thickened Dust Lock
The inner lock core uses metal to prevent damage caused by excessive force. The durable and reliable cabinet door lock is applied for a convenient opening with longer service life.

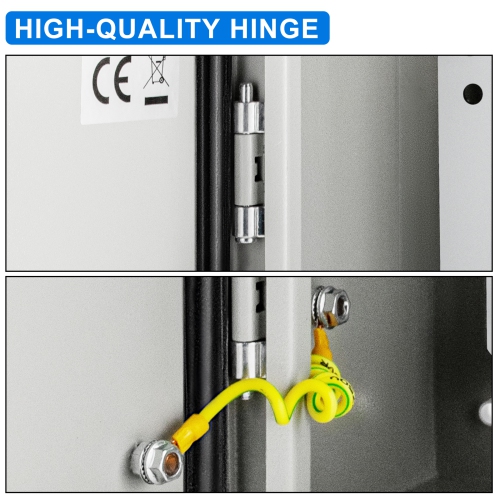

路 High Strength Hinge
The electrical box adopts reinforced hinges, which will not be damaged if it is repeatedly opened and closed. The copper core spring can relieve the pressure when opening and closing the box door.

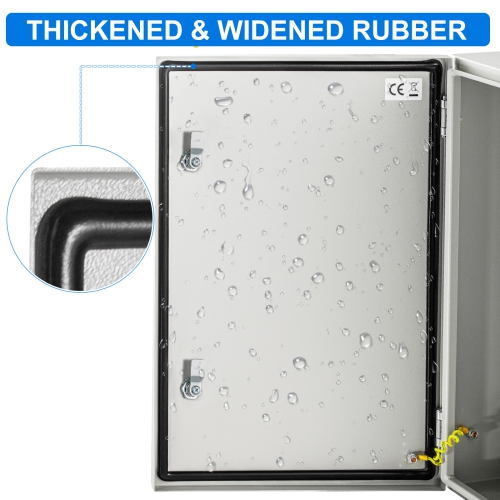

路 Rubber Sealing Strip
The sealing rubber strip is close to the box door with strong sealing performance to avoid dust and raindrops from dripping into the box and causing electricity leakage.

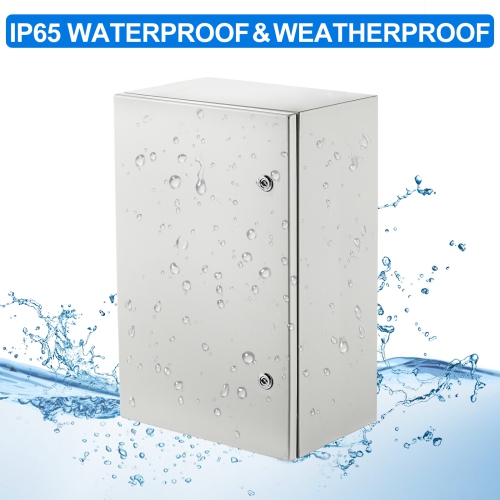

路 IP 65 & Protective
The IP65 waterproof design can effectively block splashing water, rain, dust, snow, oil into the electrical enclosure and causing damage. It can keep your equipment well-protected in harsh environments.
路 Effortless to Install

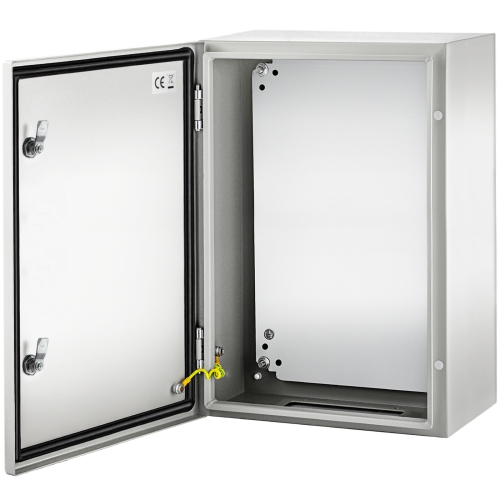

2MM detachable galvanized back plate can be removed and installed simply with high hardness and oxidation resistance. Four mounting holes on the back are convenient for wall-mounting.
饾棪饾椊饾棽饾棸饾椂饾棾饾椂饾棸饾棶饾榿饾椂饾椉饾椈饾榾
Model: SPT
Color: Gray White(RAL7035)
Material: 0.059''/1.5 mm Carbon Steel
Coating: Epoxy Polyester Powder Coating
Mounting Plate: 0.079''/2 mm Detachable Galvanized Back Plate
IP Rating: IP66
Connection Type: Hinged
Feature: Lockable, Waterproof

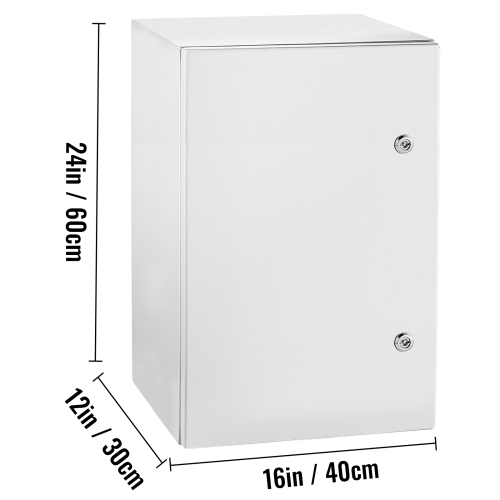

Dimensions (H x W x D): 24 x 16 x 12''/600 x 400 x 300 mm
Net Weight: 39.68 lbs/18 kg
Certification: CE Certification

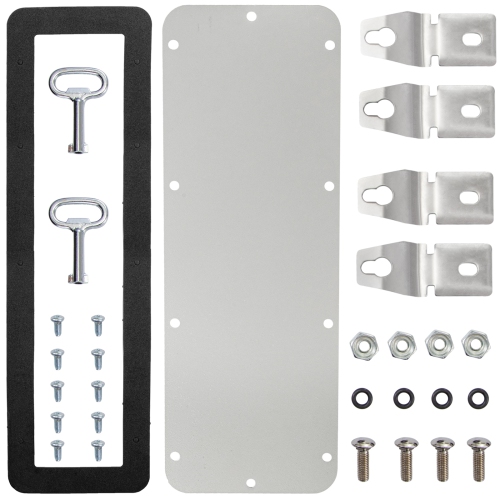

饾棧饾棶饾棸饾椄饾棶饾棿饾棽 饾棖饾椉饾椈饾榿饾棽饾椈饾榿
1 x Electrical Box
2 x Keys
1 x Mounting Plate(The mounting plate has been assembled in the box)
1 x Set of Wall Mounting Pendants
1 x Bottom Sealing Plate
路 Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
路 IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
路 Reinforced Lock & Hinge: The high-strength hinged lid is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase security and lockability.
路 Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
路 Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.
