𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻
· Premium Steel Material
The electrical junction box metal features cold-rolled carbon steel for high toughness and rust resistance. Finish: Powder Coating (Surface Pickling & Passivization), has superb mechanical properties.
· IP65 Protection Level
The IP65 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures greater security on construction sites.
· Hinge and Lock Security
The inner lock core is made of metal to avoid damage caused by excessive force or unauthorized opening. The reinforced hinge ensures that repeated opening and closing will not cause damage.
· Effortless Installation

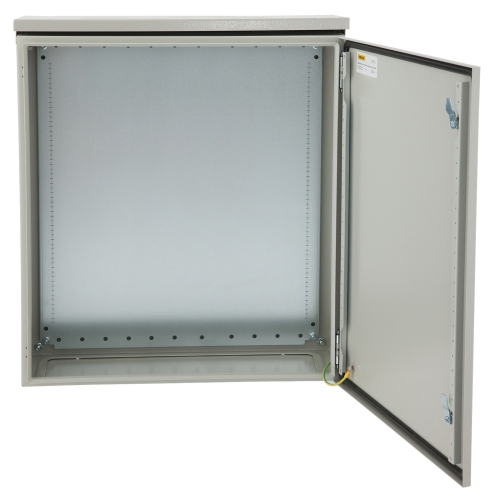

The detachable galvanized backplate is easy to install on PCB boards, terminals, or any other electrical components that need a fixed position. There are also four mounting holes on the back for easy wall mounting.
· Thoughtful Design
The detachable outlet hole at the bottom is convenient for cable entry and exit; the ground wire in the box has been installed in advance, and the rounded corners are designed to avoid damage to the cables.
· Extensive Application

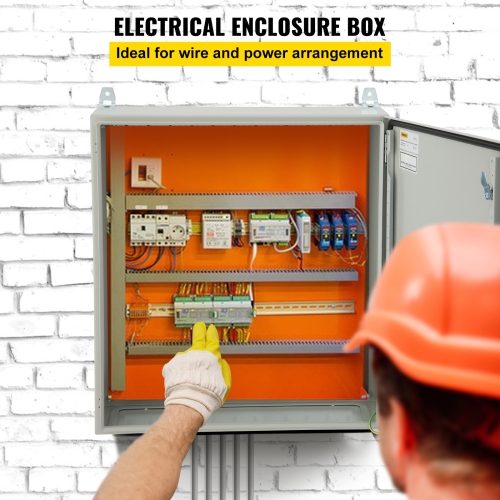

A hinged electrical enclosure is suitable for indoor and outdoor applications, which require the protection of circuits and other electrical components. Applicable to factories, construction sites, shopping malls, squares, etc.
𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Model: ST6620
Color: RAL 7035 (White Gray)
Body Material: 0.06 in / 0.15 cm Cold-Rolled Carbon Steel
Inner Plate: 0.06 in / 0.15 cm Galvanized Plate
Finish: Powder Coating(Surface Pickling and Passivization)
Certification: TUV, CE, 508A (CSA C22.2 No. 14-13.)
Ratings: NEMA Type 4
Protection Grade: IP65, IK10
Construction: Continuously Welded
Ambient Temperature: -40 to 122℉ / -40 to 55°C
Gasket Material: Seamless Foam/ Nylon(washer or plug)

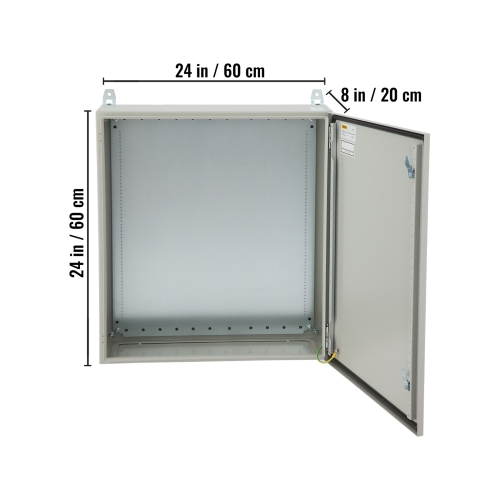

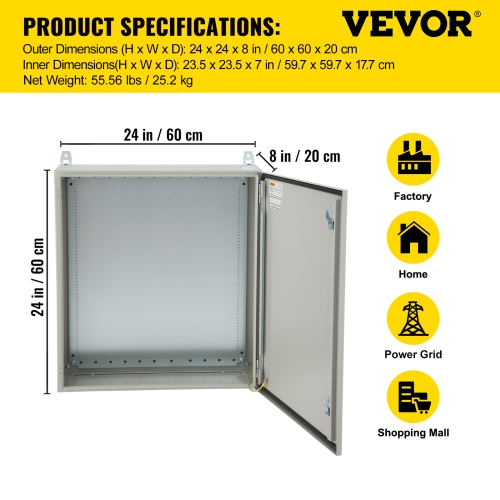

Outer Dimensions(H x W x D): 24 x 24 x 8 in / 60 x 60 x 20 cm
Inner Dimensions(H x W x D): 23.5 x 23.5 x 7 in / 59.7 x 59.7 x 17.7 cm
Galvanized Backplate Dimensions(H x W): 22.2 x 22 in / 56.5 x 55 cm
Mounting Hole Diameter(± 0.2 cm): 0.35 in / 0.9 cm
Net Weight: 55.56 lbs / 25.2 kg

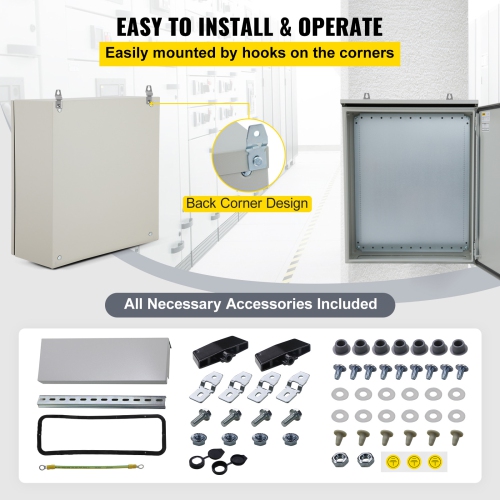

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
1 x Guide Rail
1 x Rain Hood
4 x Hanging Lug
1 x Gasket (For Enclosing Plate)
1 x Earth Wire
3 x Earth Label
2 x Key
8 x Plug
1 x Set of Accessories Package
1 x Set of Fasteners(Quantity Various on Type)
· Sturdy Steel Construction: The electrical enclosure is meticulously crafted from cold-rolled carbon steel made by precise cutting and welding. It has stronger wear resistance and keeps your equipment well protected in harsh environments.

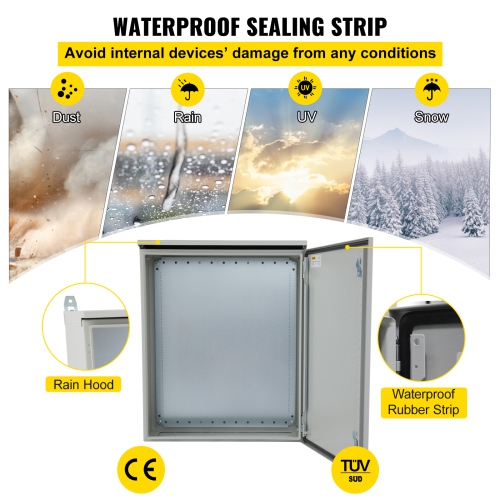

· IP65 Waterproof Grade: The sealing strip of foam / Nylon has excellent sealing performance, and the NEMA outdoor enclosure provides an optimal protection level of IP65. A rain hood can be mounted on top of the electrical box, which avoids dirt and water from entering the box when the lid is opened.

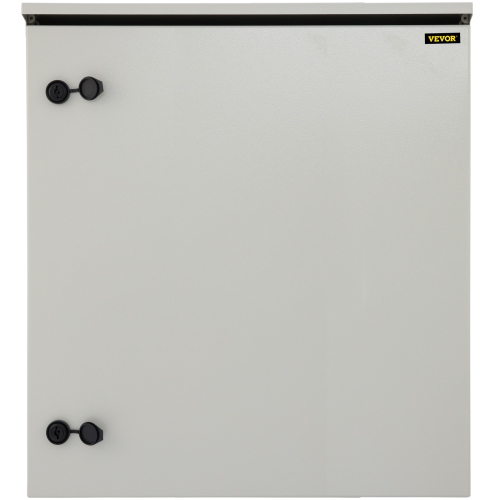

· Reinforced Lock & Hinge: The electrical outdoor enclosure features a high-quality lock core to increase security and lockability, making it less likely to fall off. The high-strength hinged lid is designed to ensure that the door is not easily damaged or broken due to squeezing.
· Convenient Operation: The metal electrical enclosure box is equipped with a detachable galvanized mounting backplate for the effortless installation of electrical components. Complete accessories and four mounting holes on the back can quickly fix the NEMA enclosure on the wall.
· Exquisitely Designed Details: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables. Ideal for various applications ranging from industrial equipment to home devices.
