๐ฃ๐ฟ๐ผ๐ฑ๐๐ฐ๐ ๐๐ฒ๐๐ฐ๐ฟ๐ถ๐ฝ๐๐ถ๐ผ๐ป
ยท Feel the Speed
Feel the exhilaration of fast rides that make every journey unforgettable. (This top speed is based on no-load conditions with a 16-inch wheel โ actual speed may vary depending on load, road conditions, and rider weight)
ยท Enhance Your Ride
Take your DIY projects with our powerful DC motor, designed to elevate the performance of your electric bikes and scooters. Whether you're looking to boost speed, increase torque, or improve overall efficiency, it provides the perfect solution for customizing your ride.

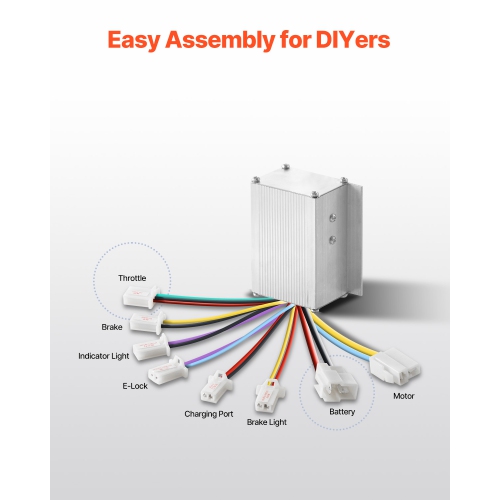

ยท New-Generation Controller
Upgrade to our new-generation controller and ride safely. Featuring a 6.3 connector, it enhances power connection stability for reliable performance. The 3-position insulated terminal block reduces the risk of short circuits, adding an extra layer of safety to your journey.

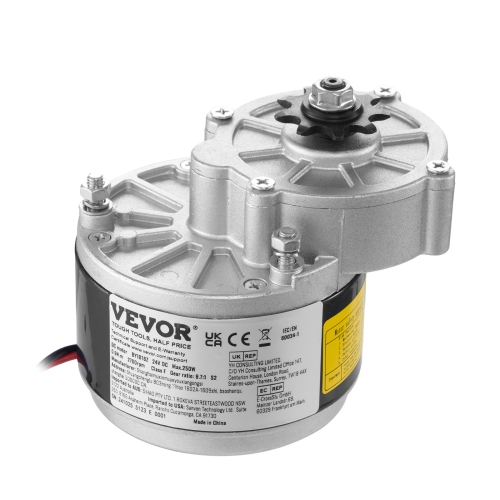

ยท 100% Pure Copper Core Motor
The 100% pure copper core motor offers exceptional resistance to deformation and rust, with high conductivity for optimal efficiency. Designed to withstand extreme weather conditions, it ensures a smooth and safe ride.
ยท Durable & Reliable
The powerful DC motor has high efficiency, power conservation, low noise, long lifespan, and stable operation.
ยท Efficient Performance
Its powerful performance ensures stability and safety, providing you with an unmatched smooth riding experience.

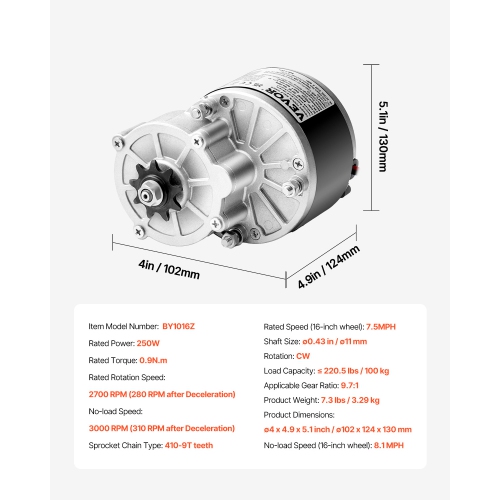

๐ฆ๐ฝ๐ฒ๐ฐ๐ถ๐ณ๐ถ๐ฐ๐ฎ๐๐ถ๐ผ๐ป๐
Item Model Number: BY1016Z
Rated Power: 250W
Rated Torque: 0.9Nยทm
Rated Rotation Speed: 2700 RPM (280 RPM after Deceleration)
No-load Rotation Speed: 3000 RPM (310 RPM after Deceleration)
Rotation: CW
Load Capacity: โค 220.5 lbs / 100 kg
Noise: 70 dB
Applicable Gear Ratio: 9.7:1
Product Weight: 7.3 lbs / 3.29 kg

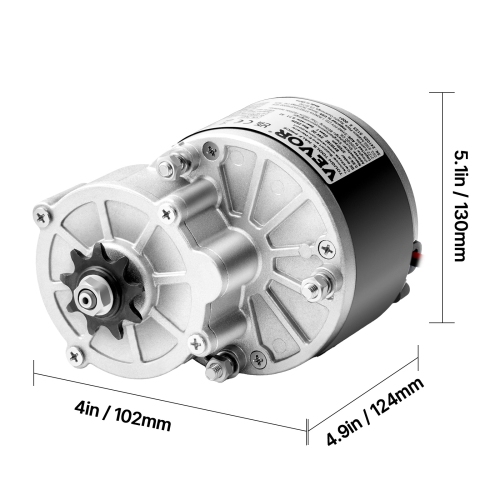

Product Dimensions: 4.02 x 4.88 x 5.12 in / 102 x 124 x 130 mm

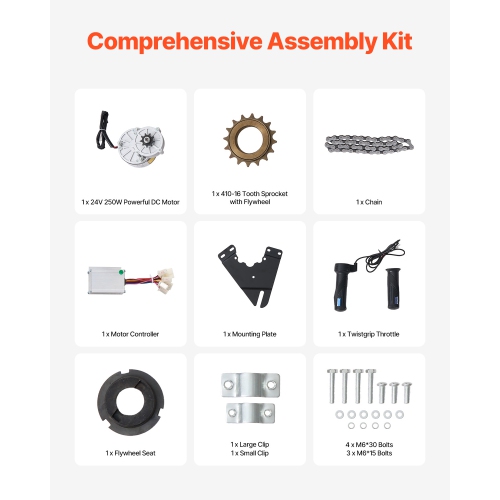

๐ฃ๐ฎ๐ฐ๐ธ๐ฎ๐ด๐ฒ ๐๐ผ๐ป๐๐ฒ๐ป๐
1 x 24V 250W Powerful DC Motor
1 x 410-16 Tooth Sprocket with Flywheel
1 x Chain
1 x Motor Controller
1 x Mounting Plate
1 x Twistgrip Throttle
1 x Flywheel Seat
1 x Large Clip
1 x Small Clip
1 x Twist Throttle Grip
4 x M6*30 Bolts
3 x M6*15 Bolts
ยท High-Power, Efficient Performance: Our powerful brushed DC motor delivers 250W of output power and operates efficiently with โฅ78% conversion efficiency, ensuring reliable speed even on challenging terrains and less energy consumption. Perfect for electric bikes, scooters, and other DIY electric vehicle projects that require high performance.
ยท Impressive Torque and Speed: Achieve up to 7.5 MPH at rated speed, and a no-load speed of 8.1 MPH with a 16-inch wheel, ensuring a fast and smooth ride for commuting or recreational use. The rated torque of 0.9N.m ensures reliable performance even on steep inclines and rough terrains.

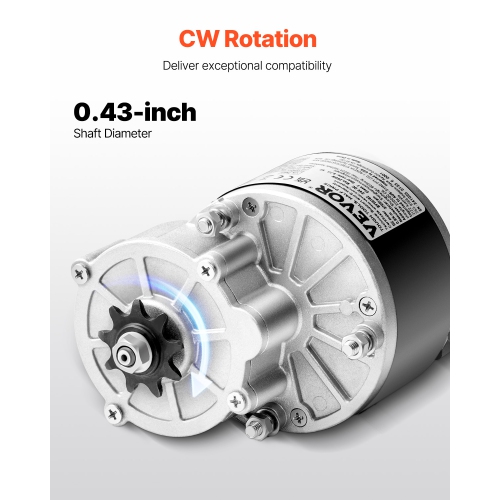

ยท Quiet, Reliable, and Versatile Operation: 100% Copper Core Motor for excellent heat and cold resistance, ensuring stable performance in extreme weather conditions. With a low noise level of 70 dB, this motor offers quiet operation. Designed with CW rotation, it ensures smooth and efficient compatibility with a wide range of electric vehicles.
ยท Advanced Safety and Control Features: The upgraded controller integrates multiple safety protections including overload, undervoltage, short circuit. It also offers essential user functions such as speed control and braking for smooth and reliable performance. The controller ensures optimal performance while maintaining safety and flexibility in various conditions.

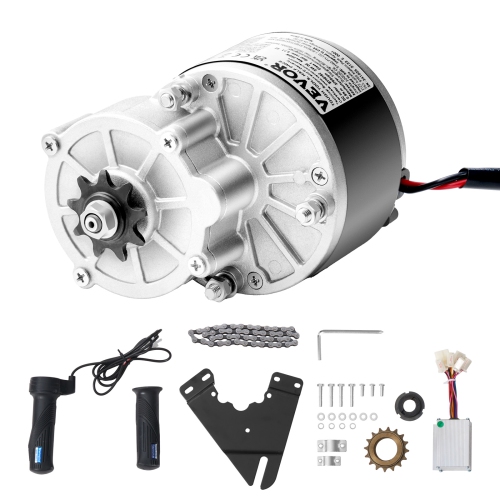

ยท Easy DIY Installation: Package includes: 1 x 24V 250W Powerful Brushed DC Motor, 1 x Motor Controller, 1 x Twistgrip Throttle, 1 x 410-16 Tooth Sprocket with Flywheel, and 1 x Set of Assembly Hardware. This motor kit comes with detailed wiring diagram instruction, ideal for DIY enthusiasts and hobbyists looking to upgrade or build custom electric vehicles.
