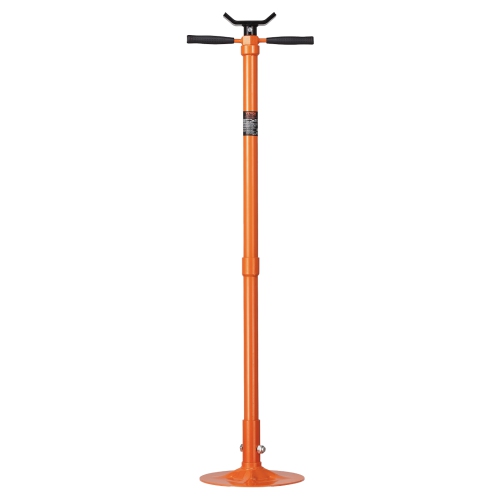

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻
· Excellent 3/4-Ton Support Capacity
The robust 3/4-ton (1653.5 pounds) load-bearing capacity provides the strength and reliability needed for automotive lifting. Constructed using Q235B steel, this hoist stand is durable and resistant to deformation and bending. It's the ideal and dependable tool for lifting vehicles.
· Smooth Height Adjustment
The rotation handle of this jack stand is equipped with thrust bearings, allowing for effortless and quick height adjustments even under extreme pressure from heavy loads. Achieve simple and efficient lifting and lowering. Height adjustment range: 52.8" - 76.0".
· Top-Down Stability
This under hoist stand uses a U-shaped tray with rubber padding to lift and support car contact points. The lifting is slip-resistant and less prone to shifting, minimizing the risk of scratching the chassis. The 0.2" thick base ensures a larger contact area, providing enhanced stability.
· Self-Locking Feature
Grasp the rubber handle with both hands and rotate the screw rod to securely lock the height. This hoist jack is designed to provide safety and convenience for those using support stands under the vehicle without the need for assistance from others or additional tools.
· Widely Used in Automotive Maintenance
The car stand jack provides partial support for positioning vehicle components during the installation and removal processes. It serves as a valuable tool for inspecting the underside of automobiles and conducting specialized exhaust repairs, often used with floor jacks and automotive lifts.
· Easy Installation and Use
After receiving the package, a simple installation is required. Just connect the base, the first section, the second section, and the third section in sequence, and finally, attach the bearing, height adjustment handle, and top support to the screws.
𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Item Model Number: US075
Weight Capacity: 1653.5 lbs / 0.75 t
Maximum Height: 76.0" / 1930 mm
Minimum Height: 52.8" / 1340 mm
Main Material: Q235B
Lead Screw Length: 27.6" / 705 mm
Handle Length: 14.6" / 370 mm
Top Head Thickness: 0.4" / 10 mm
Product Weight: 25.6 lbs / 11.7 kg
Product Dimensions: 11.8" x 11.8" x 52.8" / 300 x 300 x 1340 mm
𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
1 x Underhoist Support Stand
1 x 51106 Bearing
1 x M14×65 Bolt
1 x M14 Nut
1 x M8×16 Bolt
1 x User Manual
· 1653.5 lbs Impressive Load Capacity: This underhoist support stand can support a weight of 1653.5 lbs / 0.75 tons. The sturdy tubular steel frame helps prevent deformation or twisting. At least 2 stands are required for use and can support most small cars and similar vehicles.
· Bearing Mounted Spin Handle: The spin handle of the jack stand incorporates a thrust bearing, making it easy to raise and lower, even under the extreme pressures of a heavy load. The height adjustment range is 52.8" - 76.0" / 1340 - 1930 mm, catering to the bottom clearance requirements during most maintenance tasks.
· Safety and Stability: A 0.2" / 5 mm thick circular base enhances load stability, while the U-shaped tray with rubber padding provides secure, non-slip support without causing damage. This design of our hoist stand ensures a firm and stable hold, preventing the vehicle from wobbling.
· Self-Locking Feature for Easy Operation: The threaded screw rod provides a self-locking function to prevent the stand from lowering without assistance. Adjusting the under hoist jack stand under the vehicle is also very secure. The rubber handle provides a comfortable grip.
· Versatile Applications: The screw jack provides partial support for positioning vehicle components during installation and removal processes. It provides technicians with added height assistance when working on components such as transmissions, CV joints, radiators, drive shafts, exhaust systems, and catalytic converters, among others.
