𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻

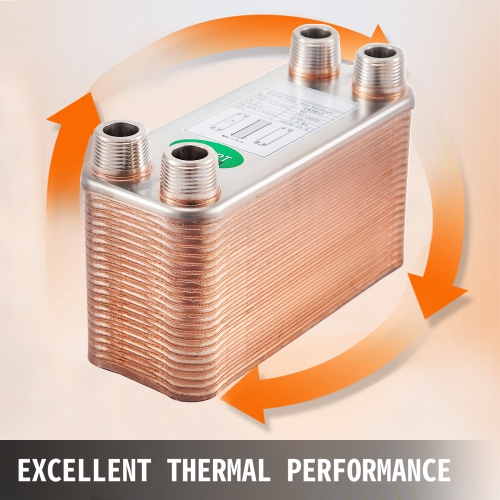

· Excellent Thermal Performance
Extremely efficient herringbone construction for maximum heat transfer.

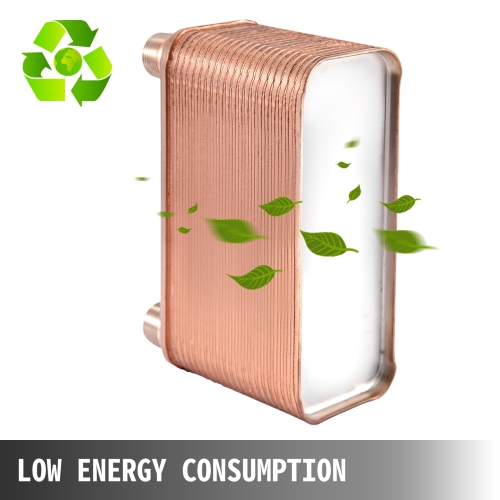

· Low Energy Consumption
Low energy consumption due to the very low-pressure drop over the heat exchanger.

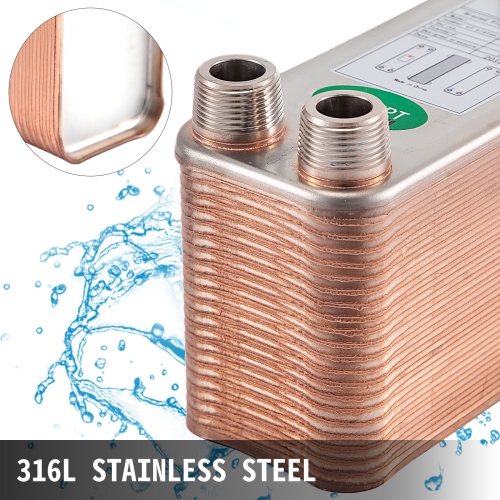

· 316L Stainless Steel
The heat exchanger comprises 316L stainless steel with high toughness to resist pressure, corrosion, and rust.

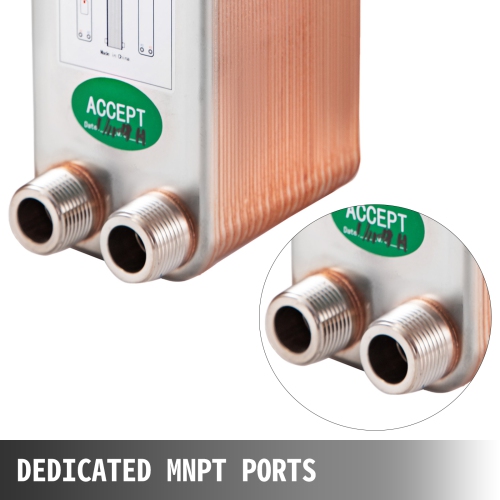

· Dedicated MNPT Ports
Four Thickened 3/4" MNPT ports for your easier installation.

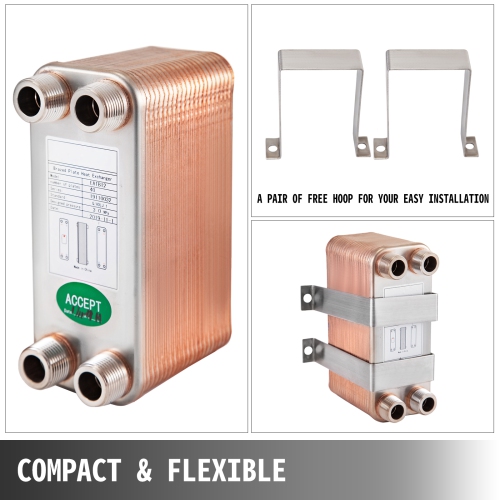

· Compact & Flexible
The footprint can be as little as one-tenth that of a shell & tube heat exchanger, and its compact size means it also offers greater system design freedom.
· Wide Application
The heat exchanger plate is ideal for outdoor wood furnaces/boilers, radiant floor heating projects, plumbing systems, snowmelt systems, swimming pools, domestic water applications, HVAC and refrigeration systems, solar heating, and other liquid to liquid heat transfer applications.
𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Model: EATB12
Material: 316L +99.9% Copper
Ports: 3/4" MNPT
Plate Quantity: 40
Design Pressure(Max):3.0 Mpa
Test Pressure:(Min):4.5 Mpa
Design Temp.(℃): Max +225
Design Temp.(℃): Min -196
Dimension: 7.6" x 2.7" x 4.6" /19.4 cm x 7.1 cm x 11.8 cm
𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁

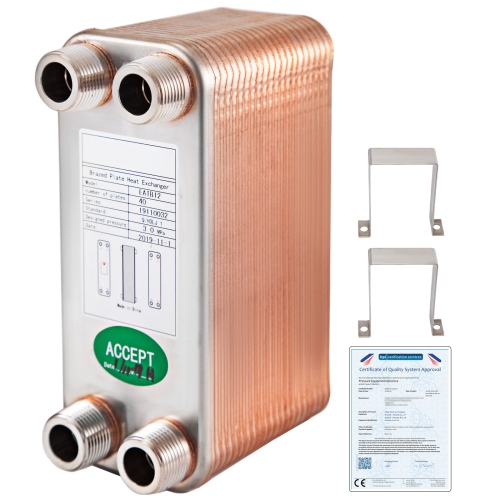

1 x Heat Exchanger

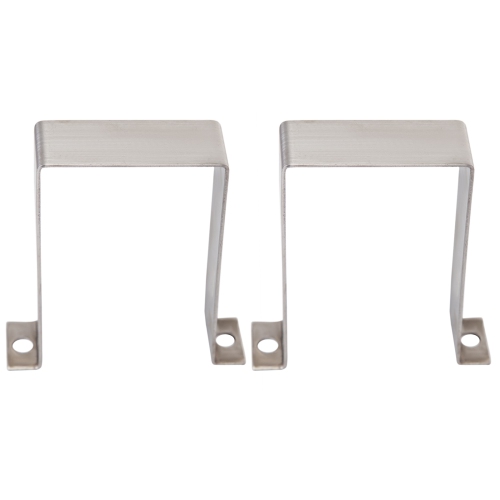

1 x A Pair of Hoops
· 【HIGH THERMAL EFFICIENCY】- Turbulent-flow design moves the two media in opposite directions and creates strong turbulence for superior heat transfer rates and efficiency. Our heat exchanger series have been certificated by CE. Dimension: 7.6" x 2.7" x 4.6" /19.4 cm x 7.1 cm x 11.8 cm.
· 【ENERGY OPTIMIZED】 - This heat exchanger stainless can heat water to the preset temperature, which is super energy-saving with no electricity consumption and no oxygen consumption.
· 【ROBUST CONSTRUCTION】- This 40 plate heat exchanger features 316L stainless steel sheets, which are brazed together at the edges and the matrix of contact points for a reliable and rugged part to form a durable, integral piece that can withstand high pressure and temperature. Four thickened MNPT ports for your easier installation.
· 【COMPACT DESIGN】- Corrugated plate design of this plate chiller wort allows for substantially smaller build and footprint at an equivalent or better performance compared to other heat transfer devices – resulting in significant space savings.
· 【HIGHLY VERSATILE】- This heat exchanger beer offers the highest level of thermal efficiency and durability in a compact & lightweight unit, ideal for industrial oil cooling, refrigerant evaporators, and condensers, residential and light commercial HVAC hydronic systems.
Friendly Note for Installation
Vertical installation is recommended to minimize sediment build-up and reduce maintenance.
For any type of project, installing a Y-strainer at the heat exchanger inlet is recommended to reduce fouling and extend the unit's lifespan.
Connect the pipes in a manner where liquids move in a counter-flow direction, which will maximize the heat transfer.
