𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻
· Powerful Performance
The hydraulic steering cylinder working pressure of up to 10.3Mpa/1500psi. Its made for boats rated to handle a maximum of 300 HP

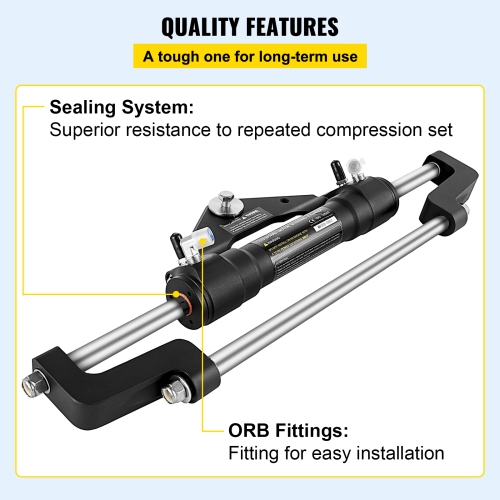

· Advanced Crush Resistance
The state of the sealing system provides superior resistance to repeated compression set and is designed to better withstand the harsh environment.

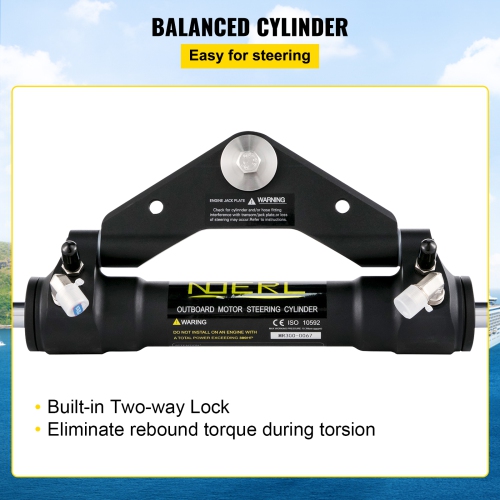

· Built-In Two-Way Lock
The cylinder is equipped with a built-in two-way locking valve which eliminates rebound torque during torsion.
· Positionable O-Ring (ORB)
Our steering cylinder includes Positionable Stainless Steel O-Ring (ORB) Fittings for easy hose routing.

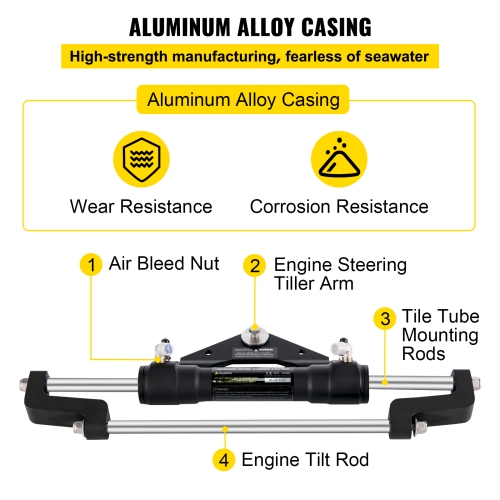

· Aluminum Alloy Casing
High-strength aluminum alloy casing and surface treatment process to ensure wear resistance and corrosion resistance.
· Wide Application

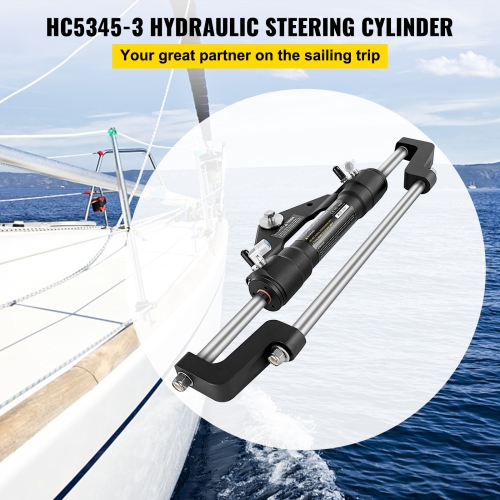

The HC5345-3 steering cylinder is ideal for cruisers, runabouts, center console boats, offshore fishing boats, and many more.

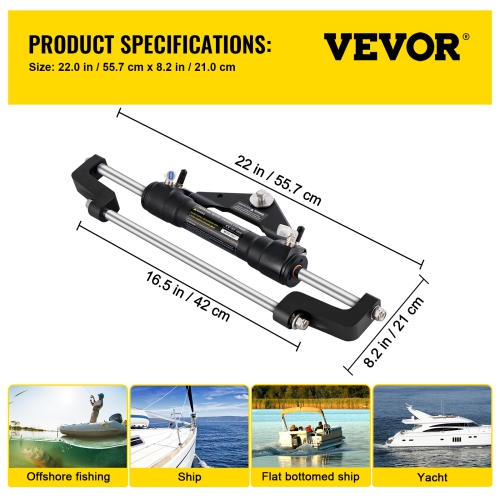

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Model: HC5345-3 Cylinder
Replaces: Teleflex Marine HC5345-3
Applicable: Up to 300HP
Max Working Pressure: 10.3Mpa/1500PSI
𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁

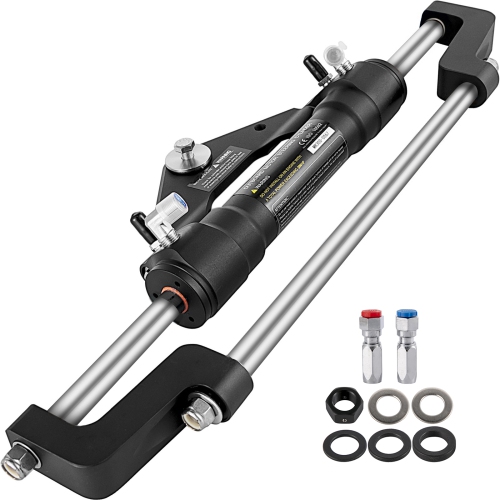

1 x Hydraulic Outboard Steering Cylinder
· HC5345-3 Front Mount Cylinder: HC5345-3 steering cylinder is ideal for outboard powered boats like center console, offshore fishing, bass boats, flats boats and many more. For use with Yamaha applications where it is necessary to mount the steering cylinder underneath the steering arm.
· Advanced Crush Resistance: Our hydraulic outboard steering cylinder provides excellent resistance to repeated compression set and is designed to better withstand the harsh marine environment.
· Built-In Two-Way Lock: The hydraulic steering cylinder is equipped with a built-in two-way locking valve which eliminates rebound torque during torsion. It also features independent engine tilt for twin/triple engine installations and varying lock-to-lock turn ration dependent on helm selection.
· ORB Fitting: The new end gland sealing system has been redesigned with an 8-hole design for improved serviceability and updated with Positionable Stainless Steel O-Ring (ORB) Fittings for easy hose routing.
· Sturdy Aluminum Alloy: The hydraulic steering cylinder is made from a high-strength aluminum alloy material, which is corrosion-resistant, and high-density to effectively prevent seawater erosion. Enjoy the steering helm for years to come.
· Will Fit the Following Motors
MFG YEAR MODEL NOTES FORCE 1985 – 1999 90 – 150 HP
HONDA 1996 – DATE 75 – 90 HP
1998 – DATE 30 – 50 HP Requires Spacer Kit #HO5090
2003 – DATE BF135 HP
2010 – DATE 115 HP
JOHNSON/EVINRUDE 1991 – DATE 40 – 300 HP Inc. ETech
1996 – 2003 75 – 250 HP FICHT
2002 – DATE 200 – 225 HP 4-STROKE
2007 – DATE 3.3L/3.4L 200 – 250 HP Inc. H.O. Models MERCURY 1984 – 1994 2.4/2.5 HP EFI May require extensive cowling modifications.
1989 – DATE 75 – 300 HP
1998 – DATE 30 – 60 HP
2004 – DATE 150 – 200 HP VERADO
NISSAN 1990 – DATE 90 – 140 HP
SUZUKI 1986 – DATE 100 HP
1986 – 2002 115 – 140 HP NOT 1996
1986 – DATE 150 – 300 HP 2&4 STROKE
YAMAHA 1990 – 2003 40 – 90 HP 2-STROKE Requires Spacer Kit #HO5090
1986 – DATE 100 – 300 HP 2-STROKE
1997 – DATE 80 – 250 HP 4-STROKE
2000 – DATE 150 – 300 HPDI
2007 – DATE 200 – 300 HP 4.2L V6 4-STROKE
2007 – DATE F300 – F350 HP 5.3V8
2014 – DATE F115B
