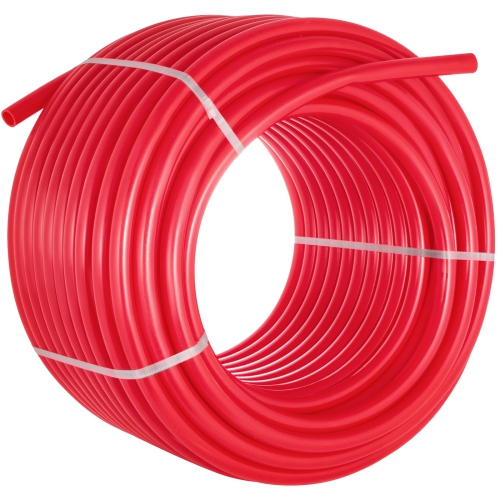

VEVOR 5/8 Inch x 500Ft PEX Tubing Oxygen Barrier O2 EVOH Pex-B Red Radiant Floor Heat Durable Plumbing Flexible for Residential Commercial Radiant Floor Heating Pex Pipe

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻

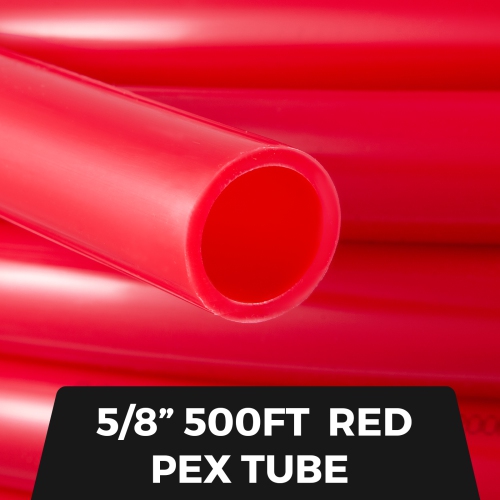

· 5/8” 500ft PEX Tube

Industrial-grade pex tubing, crack-resistant, leakage-proof and anti-aging after long year's use. Nominal Diameter: 5/8"; Tube Length: 500ft, longer than normal products. This tube is marked with words every 5 ft length.

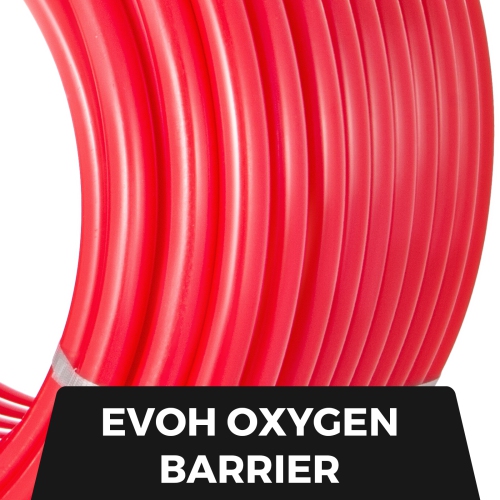

· EVOH Oxygen Barrier

Crafted with a layer of EVOH for O2 barrier, keep oxygen and external elements from penetrating or corrode the metal components. Also, prevent the existence of germ in water.

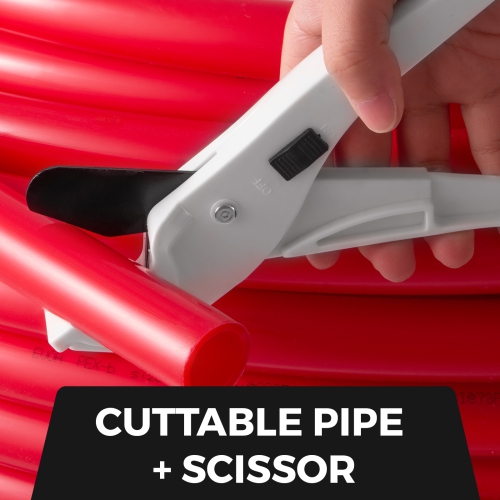

· Cuttable Pipe + Scissor

Professional PEX tubing cutter, an integral tool in the easy-to-install pipe connection system. For clean, straight cuts PEX tube size: 1000ft into various length.

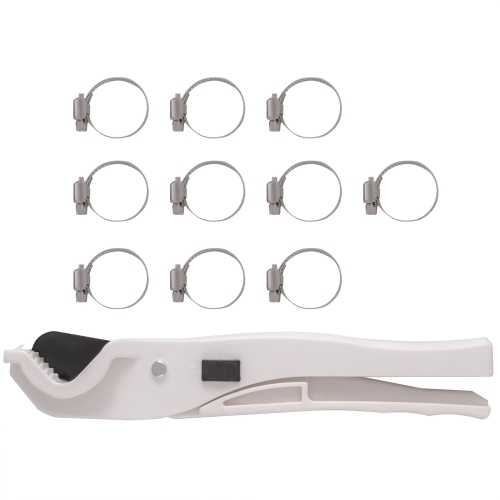

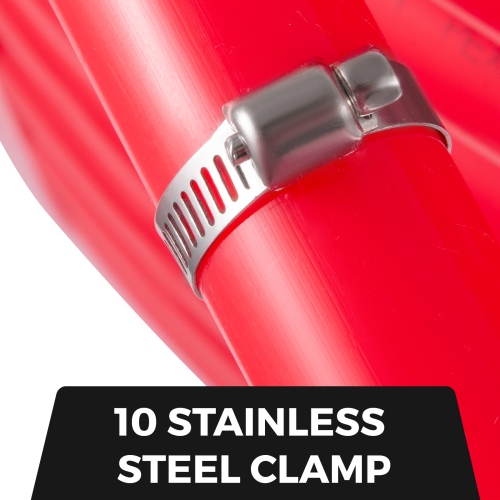

· 10 Stainless Steel Clamp

Come with 10pcs stainless steel clamp, anti-rust & crack-resistant. Cooperate with screwdriver to help fix tubes and adjust tube tightness freely.

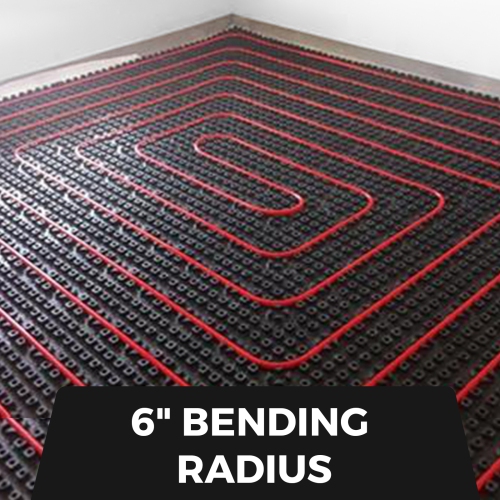

· 6" Bending Radius

Expands and shrinks with temperature changes and support freeze resistant, this tube is with min.6" bending radius and excellent flexibility.

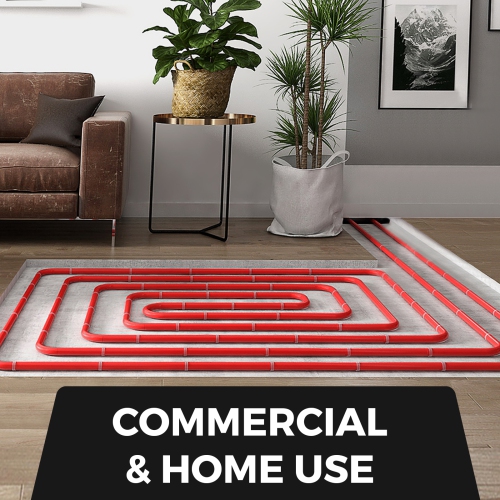

· Commercial & Home Use

Multi-use water pipe, applied for plumbing, radiant & hydronic systems, and potable water transmission. Keep quick hot & cold water flows. Red color just for identification.

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀

Type: PEX Tube(Oxygen Barrier)

Color: Red

Total Length: 500FT

Nominal Diameter: 5/8"

Inside Diameter: 0.574"

Outside Diameter: 0.750"

Temperature Range: -45 to 110℃/ -47℉ to 230℉

Pressure Rate: 188-217psi at 20℃; 101-108psi at 95℃

Min. Bending Radius: 6"(Industry Standard for 5/8" PEX)

ANSI/NSF 14, ANSI/NSF61, NSF-Pw (certified for radiant heating applications).

UPC listed by IAPMO.

SDR-9 dimensional standards.

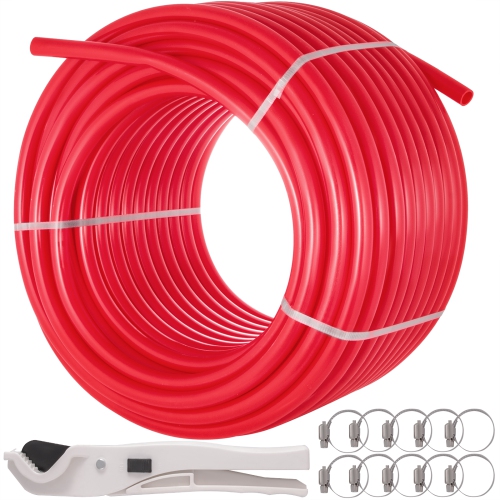

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁

1 x 500FT 5/8" Oxygen Barrier PEX Tube

1 x PEX Pipe Cutter

10 x Clamp

· 【RELIABLE QUALITY】- Color: Red; Nominal Diameter: 5/8"; Total Length: 500ft. Keep quick & smooth hot/cold water flows. Made of PEX material, non-toxic, crack-resistant, leak-proof. Perfect for potable water or radiant floor water use.

· 【ROBUST O2 RESISTANT】- External EVOH layer, stop O2 into the tube, protect metal components from corrosion. The heating system's service time can be greatly increased with this kind of tube. Meanwhile, bacteria on water will not easy to breed.

· 【EFFORTLESS INSTALLATION】- Send with a pipe cutter & 10 clamps, easily cut pipes to different length and fix them with clamps. Assemble method: Clamp Connection Systems(Cinch Tool + St. Steel Clamps + Crimp Fittings). This tube is marked with words every 5 ft length.

· 【PREMIUM FLEXIBILITY】- Min. 6" bending radius, easy to bend for different ground situation. Big pressure capacity: 188-217psi at 20℃ and 101-108psi at 95℃. Compatible water temperature: -47℉ to 230℉. Thus, to ensure its good temperature resistant, crack- & leakage-proof.

· 【DIVERSE USE SCENARIO】- Suit for radiant floor heat system, solar water heater system, central air-conditioning piping system etc. Structural concrete slabs, Non-structural slabs, Staple-up (between joists) radiant floor heating with and without heat transfer plates, "Sandwich" type radiant heating (between sub floor and finished floor), Snow & ice melting systems etc.
