Overview

Our heat exchanger is compact and lightweight, offering excellent thermal performance. Made with 316L stainless steel and 99% copper brazing for durability, it is perfect for solar heating, oil heat recovery, engine cooling, and condensation.

VEVOR 5"x 12" Heat Exchanger, 50 Plates Brazed Plate Heat Exchanger, Copper/316L Stainless Steel Water To Water Heat Exchanger For Floor Heating, Water Heating, Snow Melting

Model: EATB28-50
Web Code: 19287340
Sold and shipped by | 3.9 seller rating (90 reviews)

Sale ends: *

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

๐—ฃ๐—ฟ๐—ผ๐—ฑ๐˜‚๐—ฐ๐˜ ๐——๐—ฒ๐˜€๐—ฐ๐—ฟ๐—ถ๐—ฝ๐˜๐—ถ๐—ผ๐—ป

ยท Thickened Interface

Our heat exchanger features a 1 ยผโ€ MNPT interface with smooth threads for easy and convenient connection.

ยท High Efficiency and Energy Saving

This heat exchanger heats liquids with irregular plates, requiring no electricity or wood burning, providing hot water at low cost, making it cost-effective and practical.

ยท Dual Use

Equipped with 4 interfaces, the heat exchanger accommodates different media needs with correct piping and operates within -292โ„‰ to 392โ„‰ temperature range.

ยท Multiple Sizes Available

Our heat exchanger comes in 4 different sizes to meet your needs.

ยท High Compatibility

The heat exchanger plates are ideal for outdoor wood stoves/boilers, radiant floor heating projects, piping systems, snow melting systems, swimming pools, and other liquid-to-liquid heat transfer applications.

ยท Secure to Use

For safety, the entire unit is designed with smooth edges, ensuring no hand injuries during use.

๐—ฆ๐—ฝ๐—ฒ๐—ฐ๐—ถ๐—ณ๐—ถ๐—ฐ๐—ฎ๐˜๐—ถ๐—ผ๐—ป๐˜€

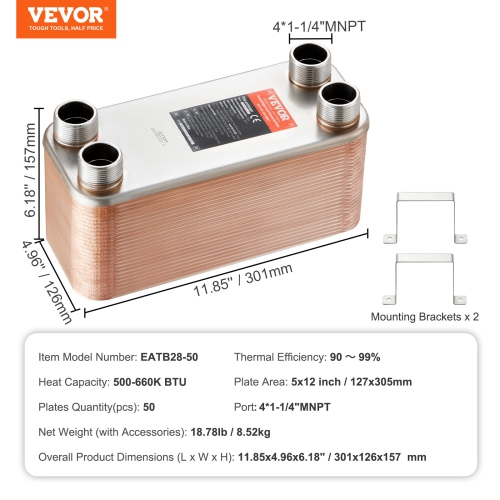

Model: EATB28-50

Thermal Efficiency: 90๏ฝž99%

Heat Capacity: 500-660K BTU

Plate Area: 5x12 inch/ 127x305mm

Plates Quantity(pcs): 50

Port: 4*1-1/4" MNPT External Thread

Color: Stainless Steel + Copper Color

Material: 304/316 Stainless Steel, Solder: 99.9% Copper Brazing

Net Weight (with Accessories): 18.78lb / 8.52kg

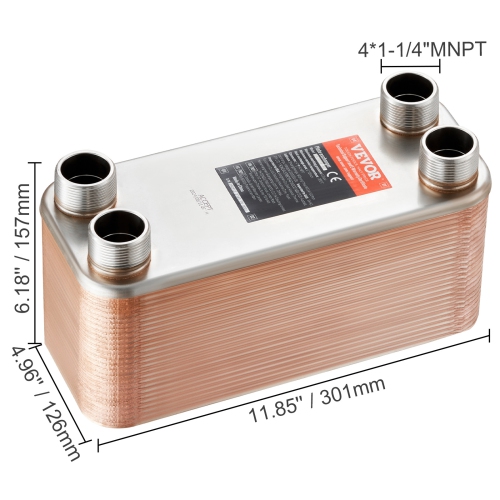

Product Dimensions (L x W x H): 11.85x4.96x6.18" / 301x126x157 mm

๐—ฃ๐—ฎ๐—ฐ๐—ธ๐—ฎ๐—ด๐—ฒ ๐—–๐—ผ๐—ป๐˜๐—ฒ๐—ป๐˜

Heat Exchanger x 1

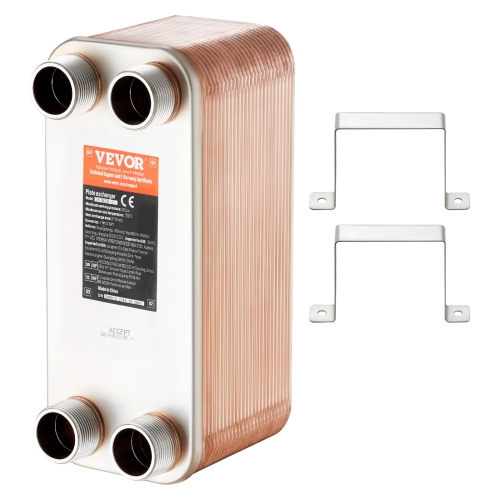

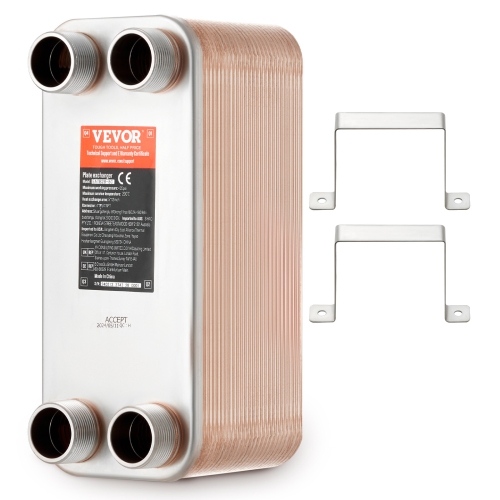

Mounting Brackets x 2

ยท High-Quality Materials: Made of 316L stainless steel with 99% copper brazing at edges and contact points, forming a robust and leak-resistant unit that withstands high pressure and temperature. CE certified for reliable quality.

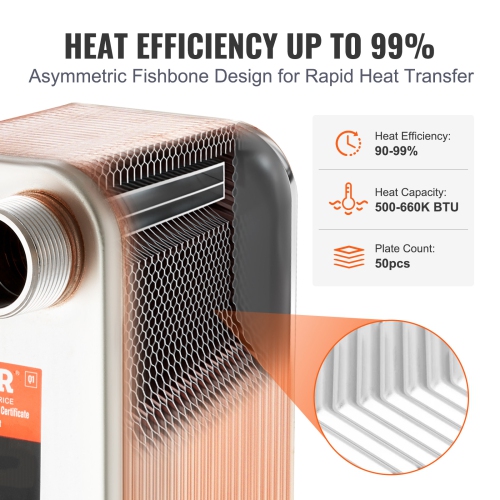

ยท Efficient Heat Transfer: The high-conductivity stainless steel plates feature an asymmetrical herringbone pattern, creating intense pressure turbulence for efficient heating/cooling. With up to 99% heat efficiency, it generates 500-660K BTU per hour, saving pump power and electricity, reducing overall application costs.

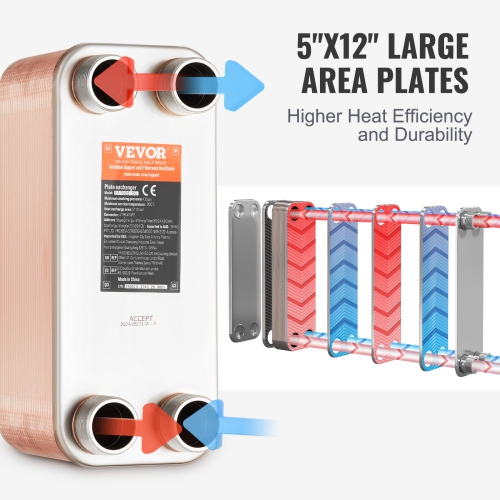

ยท Large Heat Exchange Area: The heat exchanger features 5โ€x12โ€ plates with up to 50 plates, providing excellent heat transfer performance for maximum efficiency. Suitable for operating temperatures from -292โ„‰ to 392โ„‰.

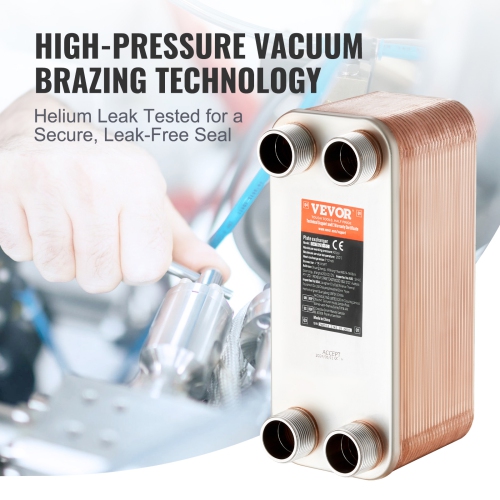

ยท Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes helium leak testing, ensuring long life and high reliability.

ยท Stable Installation: Includes two stainless steel brackets made of 304 stainless steel, offering excellent rust resistance and stability for easy and secure mounting of the heat exchanger.

Product Condition
Brand New
Colour
Silver,Yellow
Width
12.6 cm
Height
15.7 cm
Depth
30.1 cm
Height (Inches)
6.18 in
Width (Inches)
4.96 in
Depth (Inches)
11.85 in
Weight
8.52 kg
