𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻
· 50A MPPT Solar Charge Controller

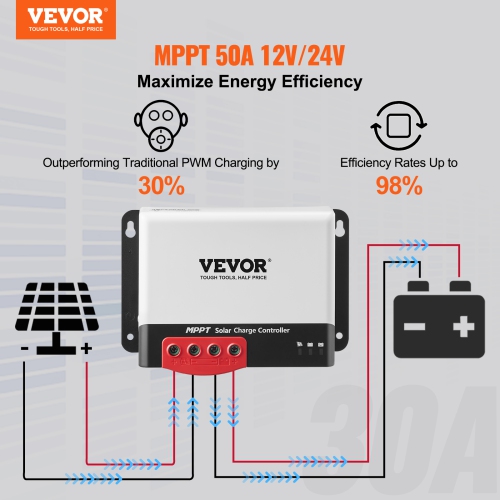

Outperforming traditional PWM charging techniques by 15-30%, achieving a conversion efficiency of up to 98%. Enhance energy utilization for prolonged device operation.
· Versatile Compatibility

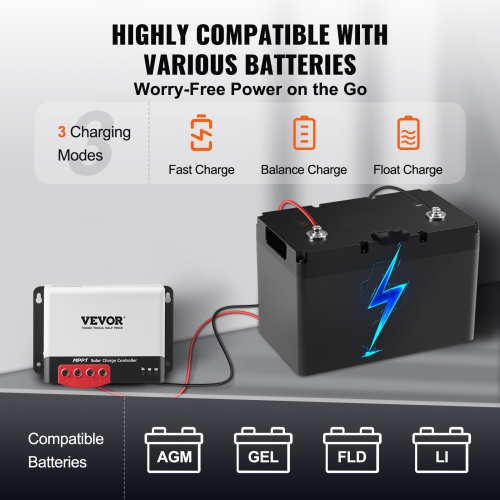

Suitable for various environments and devices, from home solar systems to mobile photovoltaic systems, and supports a maximum solar panel power of 12V 660W / 24V 1320W; compatible with various common deep-cycle sealed batteries such as AGM, gel, flooded, and lithium batteries.
· Easy to Use & Control

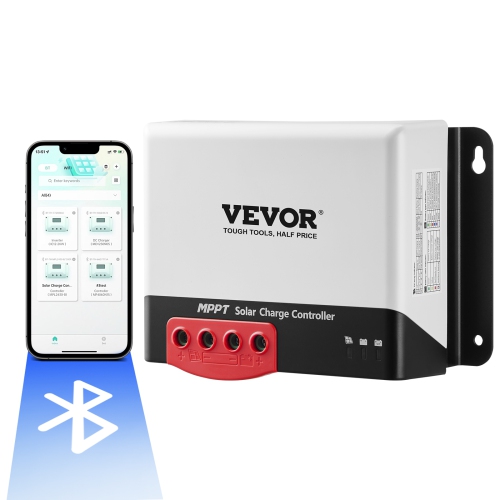

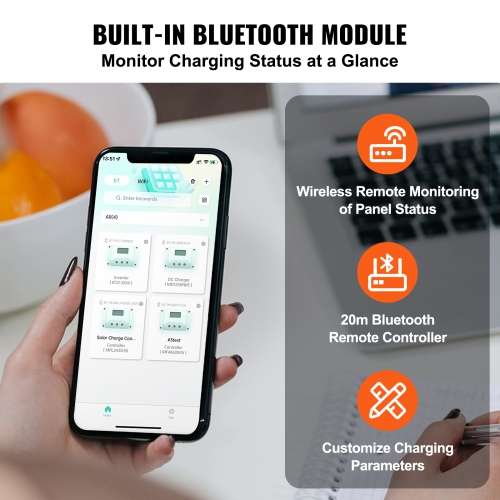

Equipped with a built-in Bluetooth module, allowing users to remotely view essential data within a 20-meter range, making the mppt solar controller more convenient for users to monitor and adjust the device's operational status.
· High Stability

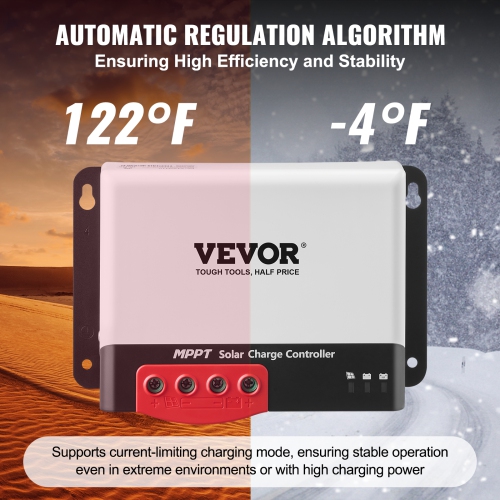

The automatic regulation algorithm supports current-limiting charging mode, ensuring stable operation even in extreme temperatures ranging from -20℃ to 50℃ (-4°F to 122°F) or when the charging power is excessively high.
· Comprehensive Protection Functions

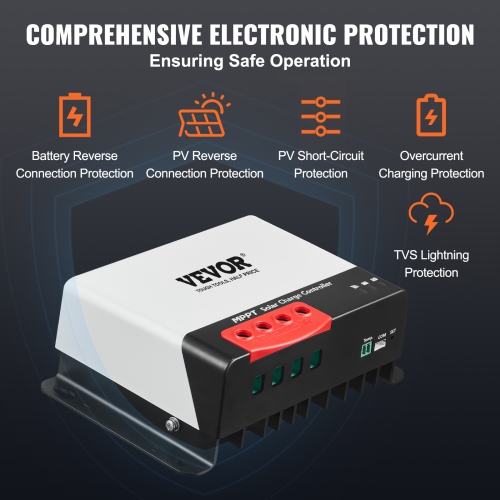

This charge controller 12V/24V features comprehensive protection functions, including battery reverse connection protection, PV reverse connection protection, PV short-circuit protection, overcurrent protection during charging, and TVS lightning protection, among others. These safeguards ensure the security and prolonged usage of the device.
· Convenient Remote Monitoring
Equipped with a TTL communication interface, supports Modbus communication protocol, making the mppt controller convenient for expanding functionality and meeting various communication needs.
𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Item Model Number: MC2450N10-B
Charging Current(DC): Max. 50A
Applicable Battery Voltage(DC): 12V/24V Auto
Solar Panel Open-Circuit Voltage: Max. 100V DC
Rated Input Power: 12V/660W; 24V/1320W
MPPT Control Efficiency: ≥98%
Charging Modes: Fast Charge, Balance, Float
External Communication: Built-in Bluetooth Module, Controlled via Neutral APP
External Temperature Sensor: Supported
Primary Material: ABS+PC
Operating Temperature Range: -20°C to 50°C/-4°F to 122°F
Product Net Weight: 1.33 kg/2.93 lbs

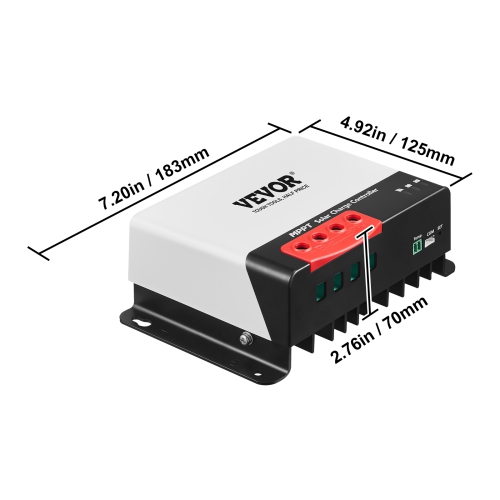

Product Dimensions: 183 x 125 x 70 mm/7.2 x 4.92 x 2.76 inches
Package Dimensions: 240 x 190 x 130 mm/9.45 x 7.48 x 5.1 inches
𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
1 x Solar Charge Controller
1 x Packaging Bag
1 x User Manual
· Efficient Charging: Utilizing advanced MPPT technology, surpassing traditional PWM charging technology by 15-30%, and achieving an ideal conversion efficiency of up to 98%. This means faster charging times, higher energy utilization, and longer-lasting operation for your devices.
· Versatile Compatibility: Suitable for various environments and devices, from home solar power systems to mobile photovoltaic systems. The solar charge controller can handle charging currents of up to 50A and supports a maximum solar panel power of 12V 660W / 24V 1320W. It's compatible with various common deep-cycle sealed batteries (AGM), gel batteries, flood batteries, and lithium batteries.
· Easy to Use & Control: Equipped with a built-in Bluetooth module, allowing remote monitoring of important data for user convenience. The mppt solar controller helps users easily monitor and adjust the device's operating status. Additionally, it comes with a TTL communication interface, supporting the Modbus communication protocol for versatile functionality expansion and meeting various communication needs.
· High Stability: Automatic adjustment algorithms and support for current-limiting charging mode ensure stable operation even in extreme conditions, such as high temperatures up to 50°C (122°F) or low temperatures down to -20°C (-4°F), as well as during high charging power situations.
· Enhanced Security: Offers all-around electronic protection features, including battery reverse protection, PV reverse protection, PV short-circuit protection, overcurrent protection during charging, and TVS lightning protection. These features ensure the security and long-term use of the device.
