𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻

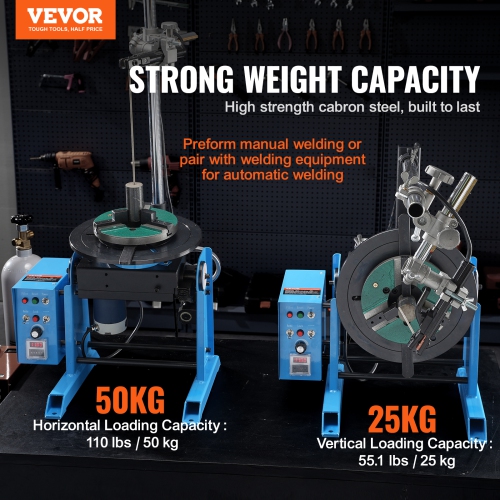

· Robust Load-Bearing Capacity
Constructed with high-strength carbon steel, our welding positioner turntable table boasts exceptional 55 lbs (vertical) or 110 lbs (horizontal) load-bearing capacities. Robust and durable structure can handle various welding tasks while offering corrosion resistance for long-term use.
· Precise and Stable Worktable
Our positioner features a worm gear turning structure with a self-locking function, ensuring precise and stable positioning of welding workpiece. The hand wheel can securely fix the worktable at desired angle, while the welding gun stand holder allows for precise positioning of the gun.
· Easy Operation

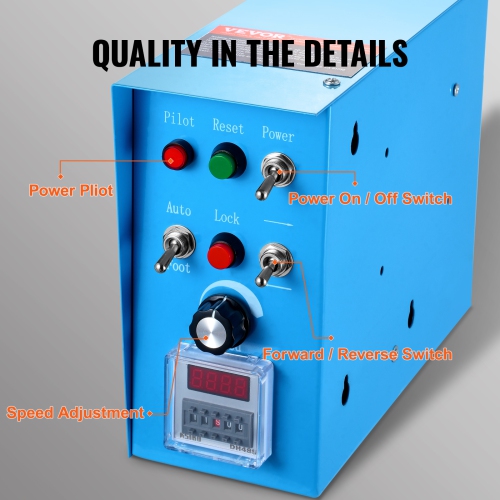

Control the worktable's 360° rotation effortlessly with the foot pedal switch, providing flexibility during welding. The user-friendly control box allows for stepless speed adjustment (0.5-6 rpm), catering to the requirements of different welding tasks and ensuring a smooth welding process.
· Wide Range of Applications
Our welding positioner is suitable for a variety of welding tasks, ensuring that you achieve precise and efficient welding results. Whether it's metal welding, large pipe welding, heavy machinery welding, or automated welding, our welding positioner is up to the task.
· Equipped with KD200 Chuck
Furnished with a KD200 chuck that has 10-210mm clamping range and 80-190m supporting range, it effectively secures the welding workpiece, preventing shifting or falling and greatly improving work precision.

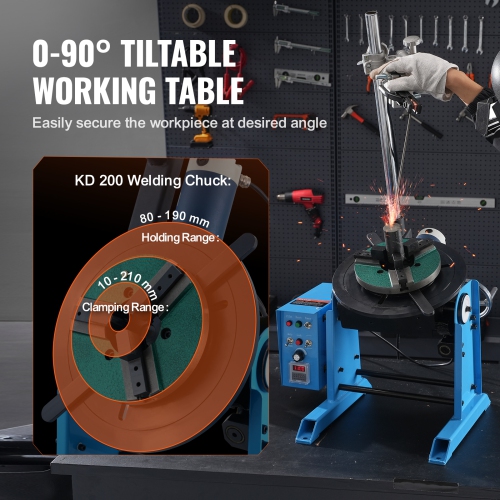

· 0-90° Tiltable Table
The turntable is capable of tilting from 0-90° and can be firmly locked at the desired angle using the hand wheel, allowing you to position it precisely at your desired angle.

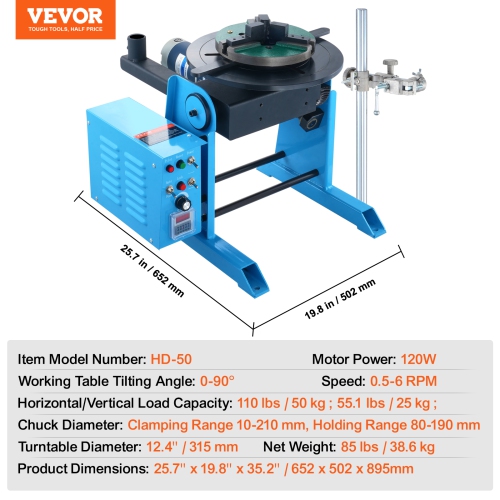

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Item Model Number: HD-50
Motor Power: 120W
Speed: 0.5-6 RPM
Horizontal/Vertical Load Capacity: 55lbs/25 kg ; 110lbs / 50kg
Working Table Tilting Angle: 0-90°
Chuck Diameter: Clamping Range 10-210 mm, Holding Range 80-190 mm
Turntable Diameter: 12.4'' / 315mm
Net Weight: 85.0 lbs / 38.6 kg

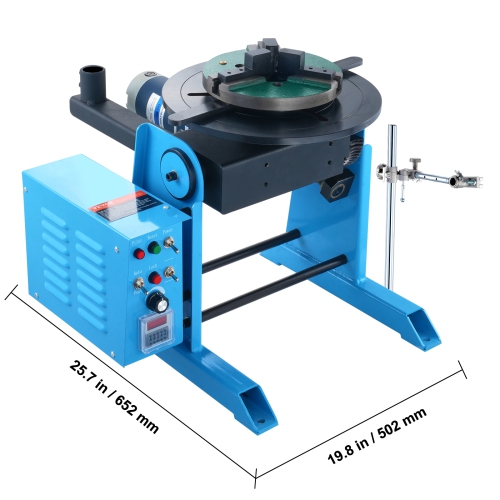

Product Dimensions: 25.7'' x 19.8'' x 35.2'' / 652 x 502 x 895 mm

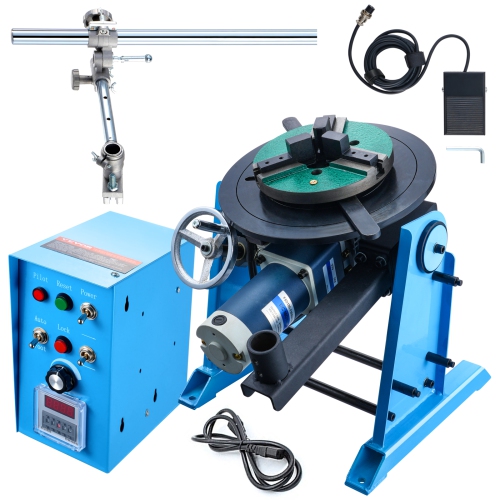

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁
1 x Power Cord
1 x Foot Pedal
1 x Set of Hand Wheel
1 x Control Box
1 x Welding Machine Connection Aviation Plug
1 x Set of Gun Holder (With Rod)
1 x Gun Stand Holder
1 x User Manual
1 x Set of Mounting Bolts (4 x Stud, 4 x Flat Washer, 4 x Spring Washer)
1 x M5 Hex Wrench
· Smooth Rotation: VEVOR rotary welding positioner boasts 120W high quality motor that runs at 0.5-6 rpm low speed for stable and smooth operation. With a load capacity of up to 55lbs/25Kg (vertical) or 110lbs/50Kg (horizontal), it offers excellent stability and supports efficient, precise welding.
· 0-90° Tiltable Worktable: The welding positioner turntable table can be tilted from 0-90° and securely fixed at desired angle with the hand wheel. Plus, the worm gear turning structure with self-locking function can accurately position and maintain the correct location of welding workpiece.
· Precise & Stable Positioning: Equipped with a 315mm KD200 three-jaw chuck, featuring 10-210mm clamping range and 80-190m supporting range, it effectively prevents the weldment pieces from moving and falling. Also includes a welding gun stand holder to secure the welding gun in place.
· Easy to Operate & Control: The welder positioning turntable table offers 0.5-6 rpm stepless speed adjustment. You can easily control the rotation speed with the user-friendly control box. The convenient foot pedal switch also allows for easy control of table's 360 degrees rotation.
· Wide Applications: Our positioning turntable is versatile for cutting, grinding, assembly, and testing. It can be fixed on the workbench or specific tooling for manual welding or paired with welding equipment for automatic welding. Elevate welding efficiency and precision with VEVOR!
