饾棧饾椏饾椉饾棻饾槀饾棸饾榿 饾棗饾棽饾榾饾棸饾椏饾椂饾椊饾榿饾椂饾椉饾椈

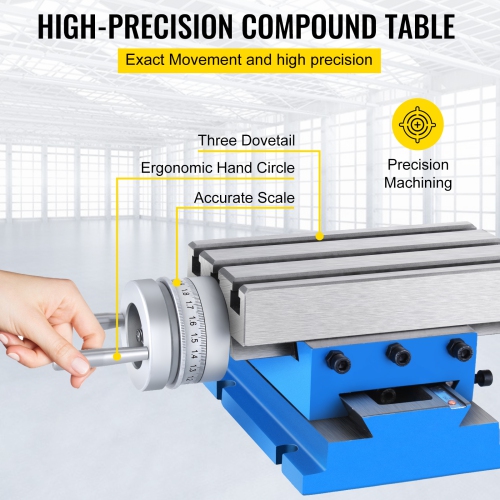

路 Easy-to-use Cranks
We adopted ergonomics in cranks design in the hope of best improving user experience. Meanwhile, the most precise scale was provided for the most accurate adjustment.
路 Widened Table-board
The table-board was widened to 100mm so as to better meet various forms of processing needs, exempting you from unnecessary misgivings about the compatibility.
路 T-Shaped Ggrooves
The item has three grooves that have a length of 10 mm (2/5 inch) and an interval width of 35 mm (1.3 inch), clamping processed objects tightly.

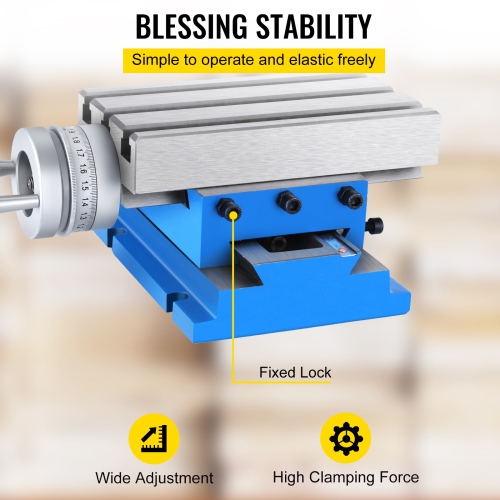

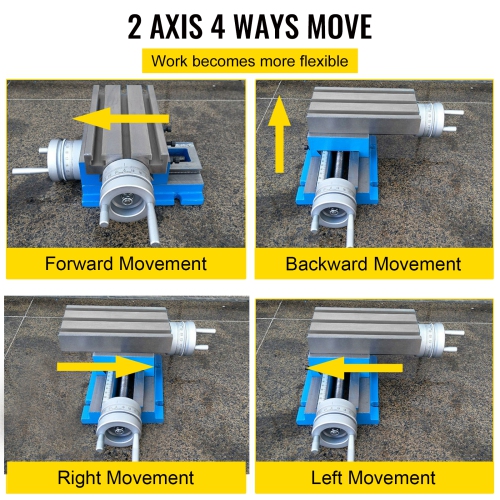

路 Movement of Sliding Table
The table could be moved in any direction by merely twisting three screws. There are total 6 screws, 3 for forward and backward movement, 3 for leftward and rightward.

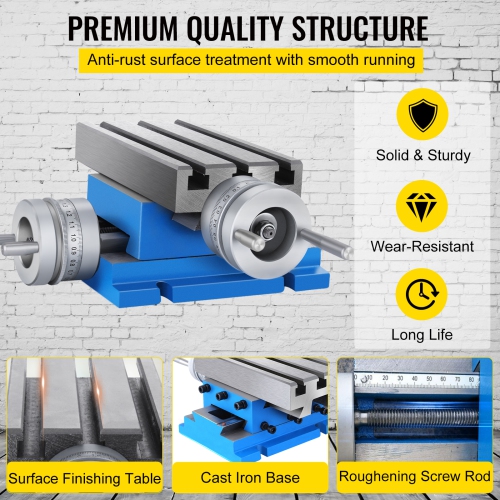

路 Stable Base
The base of cast iron was solid and robust enough to keep steady in work and make great contributions to boosting processing precision.

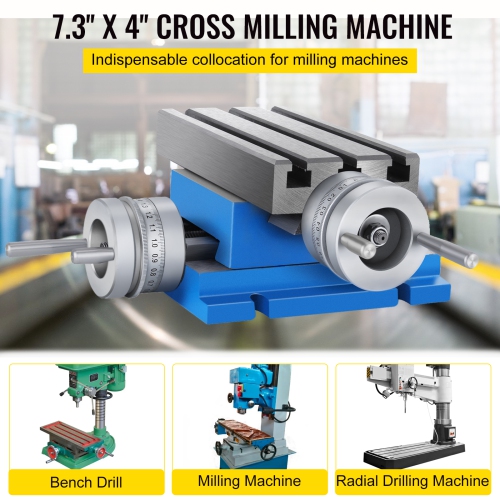

路 Extensive Uses
Suitable for all drill stands, drilling, and milling machines; compatible with all types of positioning, milling, drilling, optical viewing, and staging.
饾棪饾椊饾棽饾棸饾椂饾棾饾椂饾棸饾棶饾榿饾椂饾椉饾椈饾榾
Working Table: 4脳7.3 in / 185 x 100 mm
Travel Length: 3 in / 80 mm
Vertical Travel: 3 in / 75 mm
T-Shaped Groove Length: 2/5 in / 10 mm
Groove Interval Width: 1.3 in / 33 mm
The Spindle Spacing Length: 0.08 in / 2 mm
Dial Spacing Length: 0.0004 in / 0.01 mm
Working Height: 4 in / 102 mm
Maximum Workpiece Weight: 66 lbs / 30 kg
Bottom size: 6.7 x 5 in / 170 x 130 mm

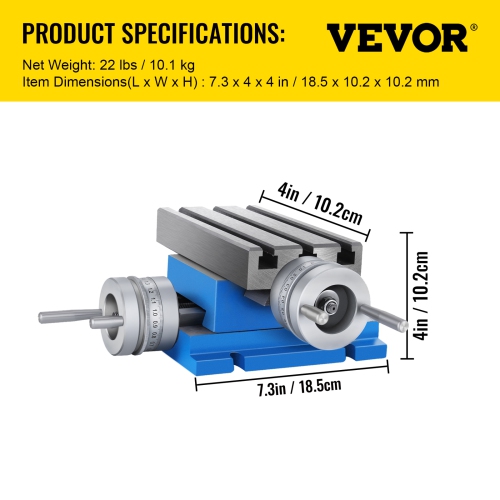

Net Weight: 22 lbs / 10.1 kg

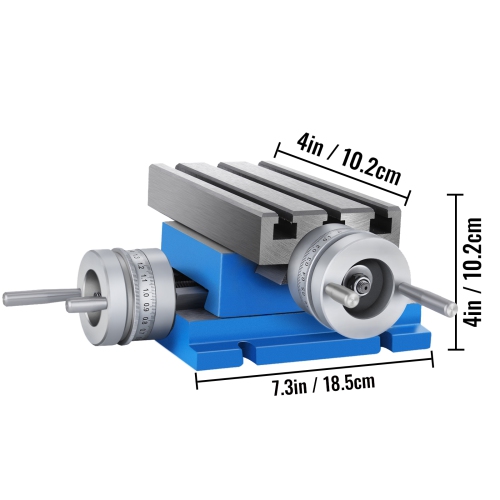

Item Dimensions(L x W x H) : 7.3 x 4 x 4 in / 18.5 x 10 x 10.2 mm
饾棧饾棶饾棸饾椄饾棶饾棿饾棽 饾棖饾椉饾椈饾榿饾棽饾椈饾榿
1 x MX-75 Multifunction Milling Support Table Worktable
路 Ergonomics and Accuracy: Solid cranks adopting ergonomic design were easy to handle, which could save you great effort when in work; cranks were designed to vary in length to meet individual demands. Furthermore, they bear a precise scale that helps you in micro adjustment with the precision of about 0.01 mm and make processing parts more accurate.
路 Reinforcement & Reliability: Solidified and widened tabletop(100 mm) together ensure a long service life and steady processing, providing a high-level security for you. Convenient and effort-saving, such a table-board could satisfy various processing needs. On the other hand, this milling working table has three T-shaped grooves that are straight and noticeable. Those grooves give tight and reliable clamping; no need to worry about loosening.
路 Easy to Adjust: The movable table could be slid forward and backwards, leftwards and rightwards according to your needs. The movement could be finished by merely twisting screws. Besides, the internal lead-screw that has been treated with high temperature was really abrasion-resistant.
路 Improved Processing Precision : Sturdy and stable base of milling vise was made of cast iron, whose excellent stability helps to improve processing precision and work efficiency and avoiding latent security hazards.
路 Wide Application: The compound slide milling drilling working table can be used for all types of positioning, milling, drilling, optical viewing, and staging; Ideal for all drill stands, drilling, and milling machines.
