饾棧饾椏饾椉饾棻饾槀饾棸饾榿 饾棗饾棽饾榾饾棸饾椏饾椂饾椊饾榿饾椂饾椉饾椈
路 Metal Lathe
7'' x 14'' benchtop metal lathe features a powerful 500W motor and a robust HT200 cast iron body, ensuring durability and sturdiness. With a 20 mm / 0.79" hole through spindle, it accommodates various parts and threading tasks, allowing the processing of stainless steel, iron, wood, etc.
路 Continuously Variable
The metal lathe machine has a 4-speed continuously variable function, and you can flexibly adjust the speed within the range of 0 - 2200 rpm. Intelligent electric control and digital display make it more convenient for precise adjustment and operation.
路 Enhanced Security
Our power metal lathe features multiple protections that make processing more secure, including overload protection, high-speed reverse fool-proofing, and chuck cover disconnection protection.
路 External Poly-V-Belt
The metal lathe utilizes external poly-V-belt transmission technology, and the output torque is increased by 3 times, reaching up to 1:9, effortlessly enabling the turning of 45# steel bars for smoother transmission and easy replacement.
路 High Precision
The tail stock spindle adopts an MT2 taper featuring the top-pressing thread quick-lock technology for ease of use. The precision dial is provided on the tailstock handle, allowing you to work more accurately and professionally.
路 Wide Application
The 20 mm / 0.79" hole through the spindle can handle various parts and threading tasks, capable of cutting 18 different imperial threads (12-52 T.P.I).
饾棪饾椊饾棽饾棸饾椂饾棾饾椂饾棸饾棶饾榿饾椂饾椉饾椈饾榾

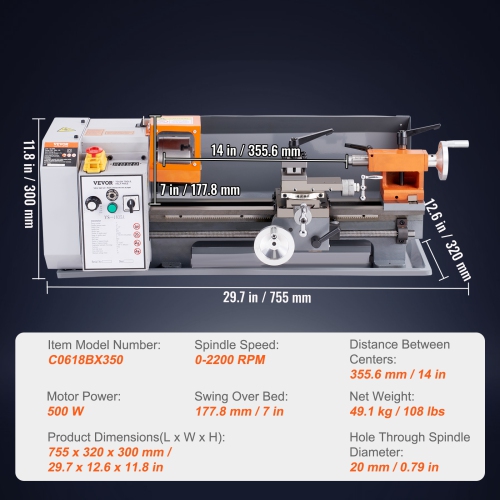

Item Model Number: C0618BX350
Main Material: HT200 Cast Iron
Spindle Speed: 0-2200 RPM
Hole Through Spindle Diameter: 20 mm / 0.79 in
Spindle Taper: MT3
Tail Stock Taper: MT2
Motor Power: 500W
Chuck Diameter: 蠁100 mm / 3.9 in
Net Weight: 49.1 kg / 108 lbs

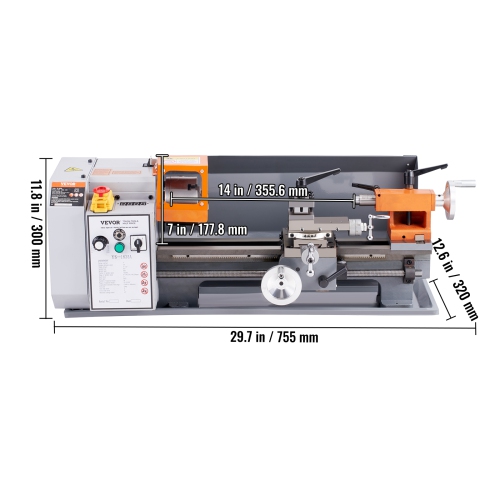

Product Dimensions(L x W x H): 755 x 320 x 300 mm / 29.7 x 12.6 x 11.8 in
饾棧饾棶饾棸饾椄饾棶饾棿饾棽 饾棖饾椉饾椈饾榿饾棽饾椈饾榿
1 x Tool Box
1 x Oiler
3 x Open Spanner(8-10/12-14/13-16)
1 x Cross Screwdriver
2 x Hex Socket Wrenches(3 mm/5 mm)
1 x Dead Center
1 x Pulley Set
2 x 1.5 m Synchronous Belt
1 x Square T-wrench

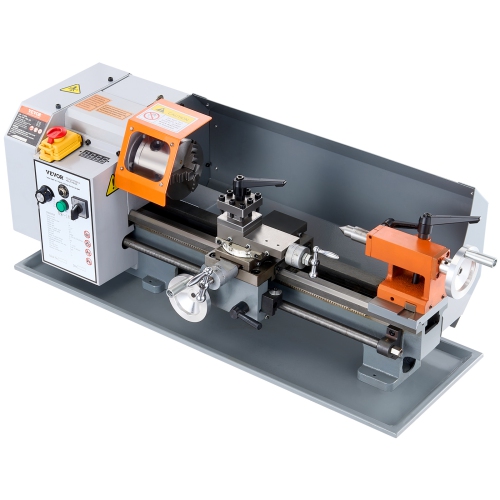

路 7" x 14" Metal Lathe: Our metal lathe machine adopts external poly-V-belt drive technology. The output torque is increased by 3 times, up to 1:9, so you can turn 45# steel bar easily. With 20 mm / 0.79 in hole through spindle diameter, you can process all kinds of rotating surfaces and end faces of rotating bodies.

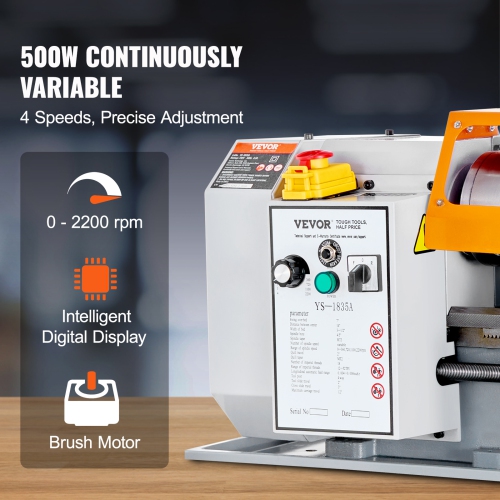

路 4-Speed Adjustment: The benchtop metal lathe adopts a 4-speed continuously variable function so that you can adjust spindle speed flexibly from 0 to 2200 rpm according to your demand. Intelligent electric control speed regulation and digital display equipment are more convenient for you to adjust and operate accurately.
路 High Accuracy & Professionalism: The tailstock spindle features an MT2 taper with top-press thread quick-lock technology for user-friendly use without effort. The precision dial is provided in the tailstock handle so that you can work more accurately and professionally.

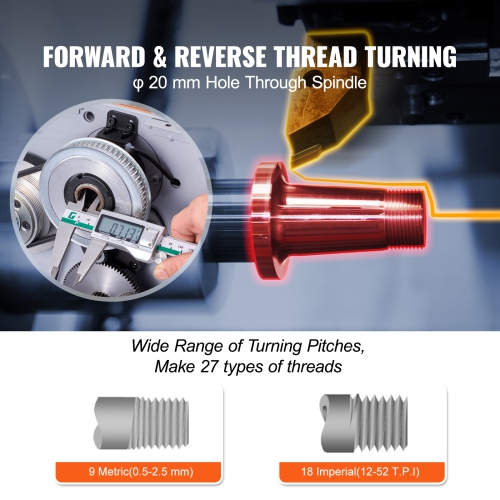

路 Forward & Reverse Thread Turning: All gears of the power metal lathe are made of high-quality metal material, ensuring a longer service life. It can turn 18 types of imperial threads (12-52 T.P.I) in both forward and reverse.
路 Security Comes First: The benchtop metal lathe has chuck cover disconnection protection, automatic overload protection, and an added circuit board protector to avoid high-speed reverse short circuits, which protects the security of the operator and the machine motor.
