๐ฃ๐ฟ๐ผ๐ฑ๐๐ฐ๐ ๐๐ฒ๐๐ฐ๐ฟ๐ถ๐ฝ๐๐ถ๐ผ๐ป
ยท 90HP Hydraulic Outboard Steering System Kit
Our kit enables the installation of a hydraulic steering system on engines up to 90HP. The rudder shaft features an aluminum alloy shell to withstand harsh marine environments. The hydraulic steering cylinder includes a two-way locking valve, bringing you high-end maritime quality.
ยท Easy Maintenance
Our boat hydraulic steering system features a detachable oil seal design, simplifying future inspections and maintenance. It ensures that performance declines due to aging or damaged oil seals can be easily avoided, keeping your system running smoothly and efficiently.
ยท Fixed-Length Hoses
Our hydraulic steering for boats comes with 20 ft hoses, tailoring your system to perfection by cutting the hoses to meet your specific needs. Plus, with quick-fit 5/16" fittings, installation becomes a snap โ fast, effortless, and designed for repeated use.
ยท Abundant Accessories

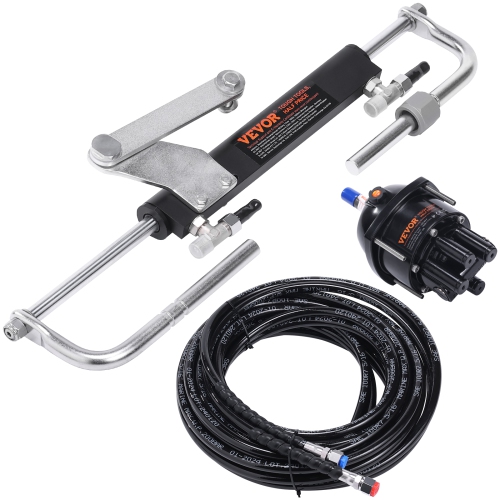

Our marine hydraulic steering kit provides everything you need for a seamless setup and maintenance experience. Inside, you'll find a hydraulic steering cylinder, a hydraulic pump, two 20-foot hydraulic hoses, and a comprehensive accessory kit for all your installation needs.
ยท Friendly Reminder
Before using our outboard hydraulic steering kit, it is necessary to fill it with oil and purge any air. If performance decreases or response delays, check the hydraulic fluid and conduct an air purge. We highly recommend consulting and following the user manual.
ยท Sturdy & Durable
Our hydraulic steering pump body is crafted from premium aluminum alloy to maintain steady performance regardless of damp, rainy, or dusty conditions. We significantly reduce damage caused by environmental factors, ensuring your system operates reliably under any circumstance.

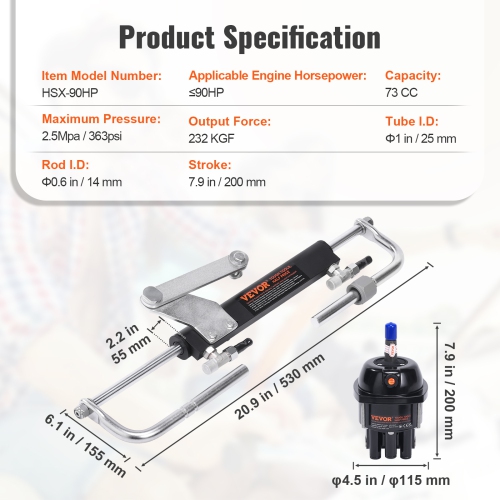

๐ฆ๐ฝ๐ฒ๐ฐ๐ถ๐ณ๐ถ๐ฐ๐ฎ๐๐ถ๐ผ๐ป๐
Item Model Number: HSX-90HP
Applicable Engine Horsepower: โค90HP
Maximum Pressure: 2.5Mpa/363psi
Output Force: 232 KGF
Capacity: 73 cc
Tube I.D: ฮฆ1 in/25 mm
Rod I.D: ฮฆ0.6 in/14 mm
Stroke: 7.9 in/200 mm
๐ฃ๐ฎ๐ฐ๐ธ๐ฎ๐ด๐ฒ ๐๐ผ๐ป๐๐ฒ๐ป๐
1 x Hydraulic Steering Pump
1 x Hydraulic Steering Cylinder
2 x High-Pressure Oil Hoses
1 x User Manual

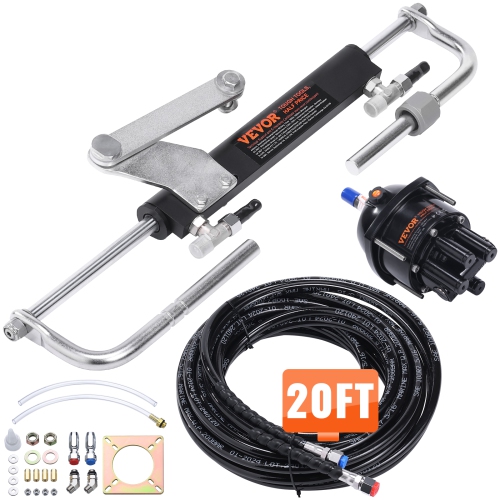

ยท 90 HP Hydraulic Steering Kit: Our 90 HP boat hydraulic steering system includes a hydraulic steering cylinder, a low-friction hydraulic pump, two 20ft high-pressure hoses, and a complete set of accessories. It's the perfect replacement for aging or damaged hydraulic steering systems. Enjoy unmatched control and stability on your maritime journeys๏ผ

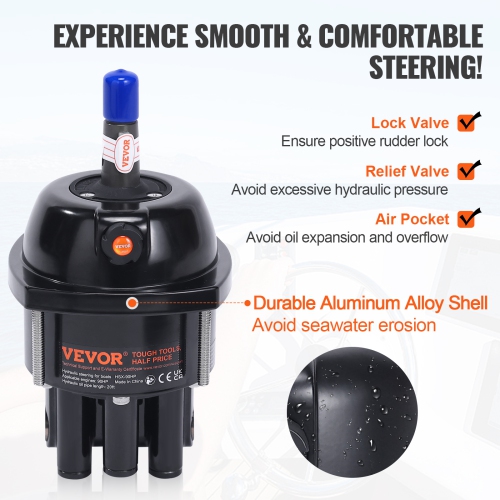

ยท Two-Way Locking Valve: Our advanced hydraulic pump features a built-in two-way locking valve, replaceable shaft seals, a relief valve, and an air pocket. This not only enhances reliability, security, and durability but also reduces long-term operational and maintenance costs while optimizing overall system efficiency and performance. Upgrade now for peace of mind on your maritime adventures.

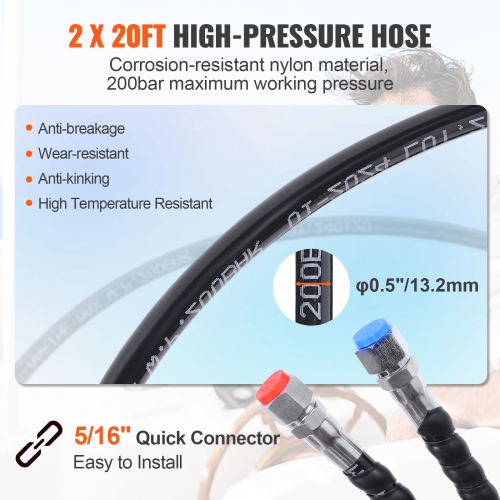

ยท 2x20FT Hydraulic Hoses: With a maximum working pressure of 200 bar and reinforced with thick nylon tubing, our hydraulic hoses are built to withstand heavy loads without risking rupture or leakage, ensuring swift and dependable response to every steering maneuver. Equipped with quick-fit 5/16" fittings, these hoses offer effortless installation flexibility across various vessel types. Dominate the waters with precision and ease.

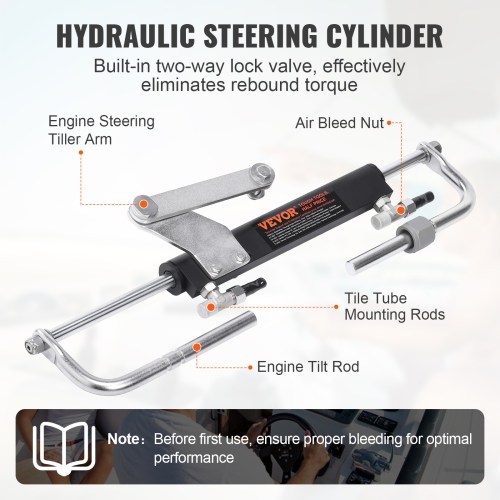

ยท High-Performance Steering Cylinder: Our hydraulic steering cylinder boasts an impressive output force of 232kgf and is perfect for most splash wells, ensuring optimal engine operation without space constraints. Its sturdy structure and efficient seals allow it to withstand harsh environments with ease. Gear up for precise steering control and durability that stands the test of time.

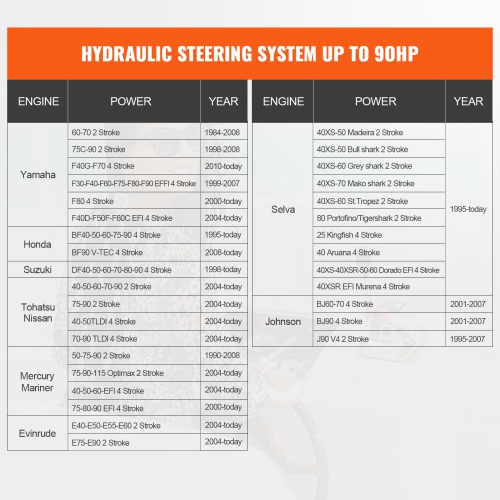

ยท Engineered for Versatility: Our marine hydraulic steering system is compatible with outboard motors up to 90HP and seamlessly integrates with a range of top brands, including Yamaha, Suzuki, Honda, Mercury, Nissan, and Tohatsu. Our outboard hydraulic steering kit ensures smooth and precise steering control for an exceptional boating experience.
