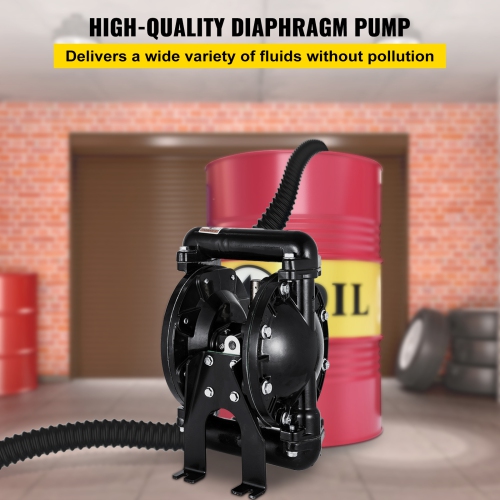

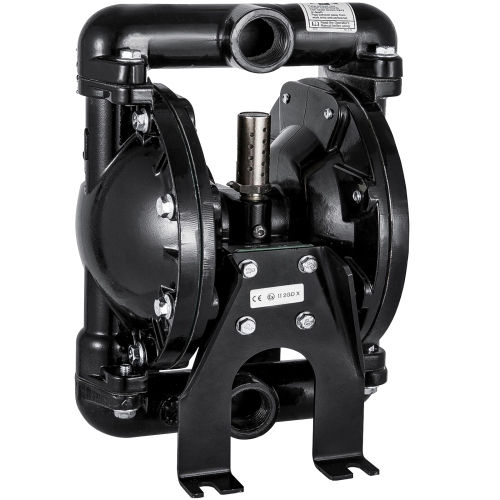

VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻

· Sturdy Aluminum Alloy Body

The shell of the air-operated diaphragm pump adopts aluminum alloy construction, all bolted, solid, and corrosion-proof. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 100 psi.

· Nitrile Double Diaphragm

The self-priming pump features double nitrile diaphragms, which have high resistance to corrosion and aging. Max. Flow Rate: 22 GPM; Max Head Lift: 239.5 ft/73 m±15%.

· Professional Air-Operated Designs

Our diaphragm pump is built to meet the international standard for reliable performance. Inlet/Outlet Port Size: 1 inch; Air Inlet Size: FNPT 1/2 inch.

· Sealed Ball Valve

It is easily accessible to ball checks and fluid caps for maintenance and repairs. In addition, the motor design delivers optimum air efficiency. An “Unbalanced" air valve ensures no-stalling during operation.

· Handle Various Material

This air-operated diaphragm pump can transfer many viscous and flammable fluids, including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drinking water, and so on.

· Versatile Uses

The double diaphragm pump has applications in various industries like petroleum, metallurgy, mining, coating. printing, water treatment, automobile, etc.

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀

Model: QBY4-25L

Type: Air-operated Double diaphragm

Diaphragm Material: Nitrile

Body Material: Aluminum Alloy

Inlet/Outlet Port: 1 inch (25 mm)

Air Inlet Size: NPT 1/2 inch (12.7 mm)

Max Flow Rate: 22 GPM

Max Head: 239.5 ft/73 m±15%

Valve Type: Ball

Suction: 0-5 m (0-16.4 ft)

Max Suspended Solids: 3 mm (1/8 inch)

Average Air Consumption: 38 CFM

Self-Priming Dry: 3 m (10 ft)

Self-Priming Wet: 4.6 m (15 ft)

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁

1 x Air-Operated Double Diaphragm Pump

1 x Product Manual

· Premium Double Nitrile Diaphragms: Our air-operated double diaphragm pump adopts nitrile diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 100 psi; Max. Flow Rate: 22 GPM; Max Head Lift：239.5 ft/73 m±15%.

· Sturdy & Leak-proof Construction: The diaphragm pump housing is made of aluminum alloy material, bolted against leakage, sturdy, and corrosion-proof for long-time use.

· Excellent Air-operated Performance: Inlet/Outlet Port Size: 1 inch; Air Inlet Size: FNPT 1/2 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.

· Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.

· Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.
