饾棧饾椏饾椉饾棻饾槀饾棸饾榿 饾棗饾棽饾榾饾棸饾椏饾椂饾椊饾榿饾椂饾椉饾椈
路 Aluminum Alloy & Stainless Steel Material
The vertical ruler and slider are made of aluminum alloy, while the horizontal ruler is made of stainless steel, ensuring greater durability. In the face of various environmental challenges, our hardware jigs can continue to provide solid support for your equipment.
路 Reversible Design

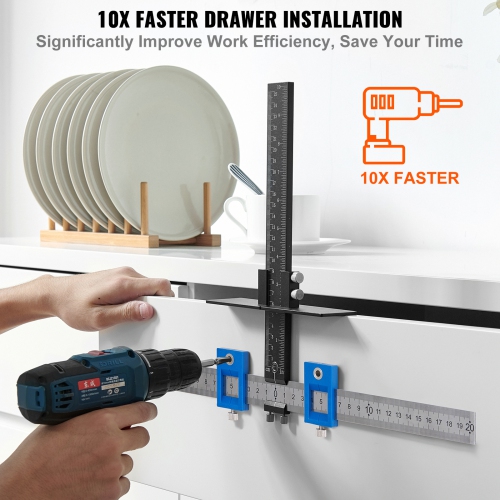

Once the cabinet handle jig is adjusted, there's no need for repetitive adjustments. You can simply flip it to the next cabinet door for precise positioning, enabling efficient batch hole-drilling operations. This allows you to complete installations in a short time, saving valuable work hours.
路 Detail Design
Our vertical slider board adjusts the tightness of the slide by hand-turning bolts, making it more convenient than traditional designs that require a wrench for adjustment鈥攏o tools are needed. Laser-engraved scales in two sizes provide clearer and more easily readable measurements at a glance.

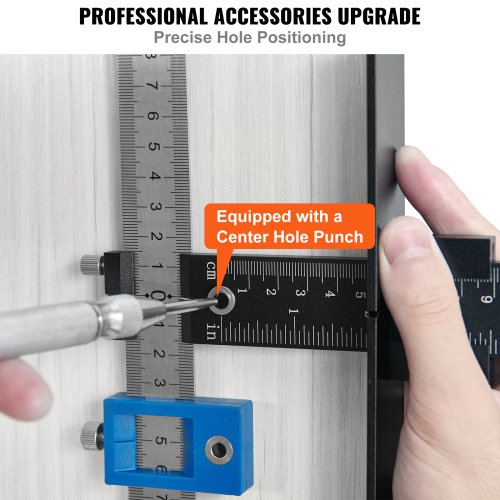

路 Center Hole Punch
Our cabinet jig features a center hole punch to help you locate the center point on the material, allowing for precise positioning and measurement on various materials and ensuring accurate drilling without deviations or inaccurate hole placements, thereby enhancing work quality.

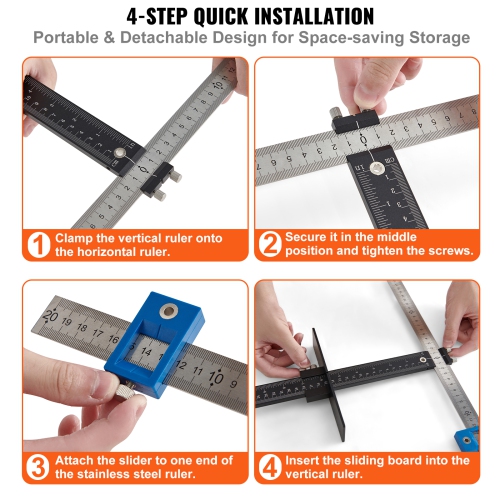

路 Convenient Installation
No more worrying about tedious installation steps! Our cabinet hardware jig tool features a detachable design for quick and simplified installation, allowing you to effortlessly handle any task. It makes operations a breeze, giving your work a significant boost.
路 Reinforced Screws
The high strength and durability of reinforced screws can extend the lifespan of cabinet hardware jigs. They are better equipped to withstand external stress and environmental factors, reducing the frequency of maintenance and replacements.
饾棪饾椊饾棽饾棸饾椂饾棾饾椂饾棸饾棶饾榿饾椂饾椉饾椈饾榾
Item Model Number: XRSS2304
Horizontal Ruler Material: 201 Stainless Steel
Vertical Ruler Material: Aluminum Alloy
Longitudinal Backboard/Horizontal Slider Material: ABS
Screw Material: 201 Stainless Steel
Longitudinal Scale Range: 0-10 inch / 0-25 cm
Horizontal Scale Range (One Side): 0-8 inch / 0-20 cm

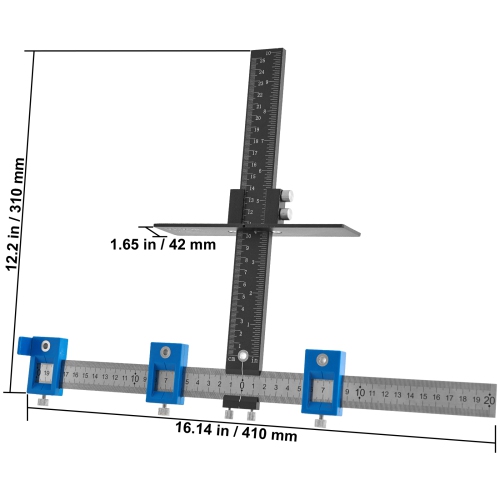

Product Dimensions (L x W x He): 16.14 x 12.2 x 1.65 in /410 x 310 x 42 mm
Net Weight (Including all accessories): 1.21 lbs / 0.55 kg
饾棧饾棶饾棸饾椄饾棶饾棿饾棽 饾棖饾椉饾椈饾榿饾棽饾椈饾榿
1 x Horizontal Ruler
1 x Vertical Ruler (including screws)
1 x Vertical Backplate (including screws)
3 x Horizontal Slider (including screws + 5mm Drill Guide Bushing)(one extra, totaling 3)
1 x Slider End Stopper (including screws + stop plate)
1 x Center Hole Punch
1 x 5mm Twist Drill Bit
2 x Hex Wrench
1 x Oxford Cloth Bag
3 x 5mm Drill Guide Bushing (in addition to the one installed on the device, you'll receive 3 extra)
1 x Instruction Manual
路 High-Grade Material: Choosing the high-grade hardened aluminum alloy and stainless steel for the cabinet hardware jig ensures superior durability. Not only are they lightweight and sturdy, but they also withstand the test of time in various environments. The cabinet handle template tool creates endless possibilities with its lightweight, durability, and efficiency.
路 Portable and Detachable: Each module of the cabinet handle jig can be quickly detached and installed, allowing you to use it flexibly in limited spaces. After disassembly, it can be easily stored in the Oxford cloth bag, saving space.
路 Efficient Accessories: Add a touch of efficiency to your work! We provide a "center punch" as a special gift, ensuring more precise hole punching. Even if you're using the cabinet jig for the first time, you can create perfect holes like a pro.
路 Quick, Simple, and Easy to Use: Easy to use and set up, our cabinet hardware jig tool is the perfect drilling positioning guide and helper for woodworking or DIY. It allows you to complete your tasks efficiently and quickly with just one setup.
路 Wide Applications: Whether it's kitchen drawers, cabinets, handles, drawer fronts, hinges, and more, our drawer pull jig can handle them all effortlessly. With a wide range of applications, it meets your various needs, whether for home or professional use, making your work more efficient.
