𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻
· Robust Load-Bearing
Our long ram hydraulic jack (with air pump) effortlessly handles weights up to 8 tons, making them perfect for cranes in various fields, including professional machinery, maintenance, and home use. The hoist jack transforms your crane into a convenient, efficient, and safe lifting solution.
· Effortless Lifting
With a lifting range of 26"-46.1" (660-1170 mm) and a lifting stroke of 20.1 inch / 510 mm, our engine hoist jack allows you to handle large objects with ease and speed.
· Rugged Construction
The 8-ton long ram jack is crafted from durable #45 steel and equipped with a hard chrome finish on the pump core. The large 30 mm hydraulic cylinder reduces the required oil pressure for load movement. The Y-ring plunger design ensures a stable and safe lifting process, preventing slow descents or oil drift.
· User-Friendly Operation
Our hydraulic ram pump allows you to apply minimal muscle force for lifting heavy objects. The oil return valve should be gradually loosened when retracting the piston rod to prevent rapid descent.
· Dual Pump Design
Equipped with both a pressure pump and an air pump, our jack simplifies lifting tasks. Easily handle large objects with minimal physical effort. You can link it to an air compressor for fast and effortless lifting, making even the most challenging lifting operations easy.
· Versatile Crane Companion
This clevis base long ram hydraulic jack can be easily installed on most cranes, making it suitable for off-road backup, construction, industrial, mining equipment, and various lifting scenarios.
𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Item Model Number: QJD-QDCB080A-00
Loading Capacity: 8 T / 17600 lb
Lifting Stroke: 20.1 inch / 510 mm
Maximum Height: 46.1 inch / 1170 mm
Minimum Height: 26 inch / 660 mm
Net Weight: 31.1 lb / 14.12 kg
Product Dimensions: 26 x 4.7 x 6.9 inch / 660 x 120 x 174 mm
Piston Rod Outer Diameter: φ1.2 inch / φ30 mm
𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁

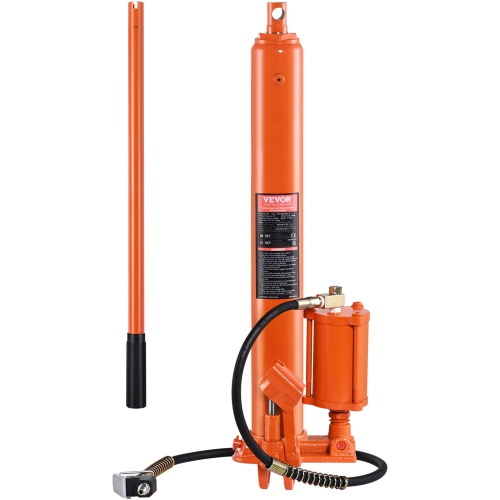

1 x Hydraulic Long Ram Jack
1 x Handle
1 x Manual
· 8-Ton Load Capacity & Large Height Range: With a robust 8-ton load capacity and a large height range from 26" to 46.1" (660-1170 mm), this hydraulic long ram jack effortlessly lifts heavy loads. And its slow-release function allows you to control your lifting tasks safely.
· Built to Last: Crafted from durable #45 steel with a hard chrome-plated surface, the engine hoist jack 's core components ensure wear resistance. The large-diameter hydraulic cylinder reduces oil pressure requirements, minimizing wear and extending the long ram jack's lifespan.
· Dual Pump Design: Featuring both a pressure pump and an air pump, the engine hoist cylinder ensures easy and efficient lifting. The air pump feature allows you to connect the jack to an air compressor, enabling swift and effortless lifting. Minimal muscle power is required to handle them effectively.
· Safety and Reliability: Our hydraulic ram cylinder has integrated oil bypass and overload valves, which protect against overloads. The hydraulic unit is corrosion-resistant and great for various temperature conditions, ensuring a hassle-free operation. The unique Y-shaped seal ring and plunger design ensure a stable and safe lifting process by preventing slow descents and oil bypass.
· Versatile Applications: This engine hoist jack suits various applications in workshops, stores, and maintenance tasks. Its clevis base allows for direct mounting on various lifting equipment, making it a versatile and ideal solution for residential and commercial lifting needs.
