๐ฃ๐ฟ๐ผ๐ฑ๐๐ฐ๐ ๐๐ฒ๐๐ฐ๐ฟ๐ถ๐ฝ๐๐ถ๐ผ๐ป
ยท Metal Sliding Shelf
Made of powder-coated steel
ยท Stand base
Solid stand, stable and secure
ยท Metal Support Bracket
Sturdy enough for the TV weight
ยท Strong Compatibility

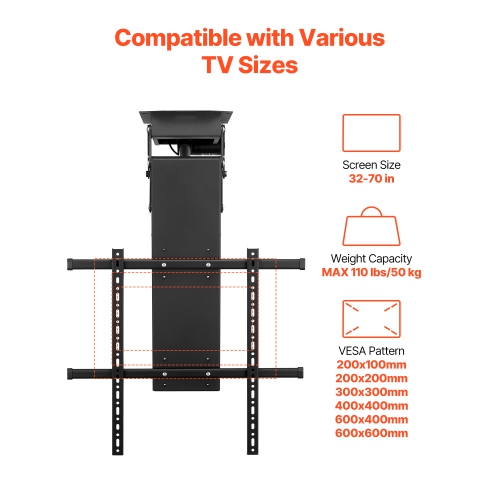

This flip down ceiling TV mount supports 32-70 in flat and curved TVs and is compatible with VESA patterns 200 x 100 mm, 200 x 200 mm, 300 x 300 mm, 400 x 400 mm, 600 x 400 mm, and 600 x 600 mm.
ยท Heavy-duty Steel
Made from heavy-duty powder-coated steel, this drop down ceiling TV mount ensures that the TV lifts and lowers securely and steadily on the ceiling without wobbling or loosening, even for larger TVs.
ยท Simple Installation
With a detailed instruction manual and a complete set of accessories, this flip down TV mount allows for easy mounting to the ceiling using the included hardware for a quick and straightforward installation.
๐ฆ๐ฝ๐ฒ๐ฐ๐ถ๐ณ๐ถ๐ฐ๐ฎ๐๐ถ๐ผ๐ป๐

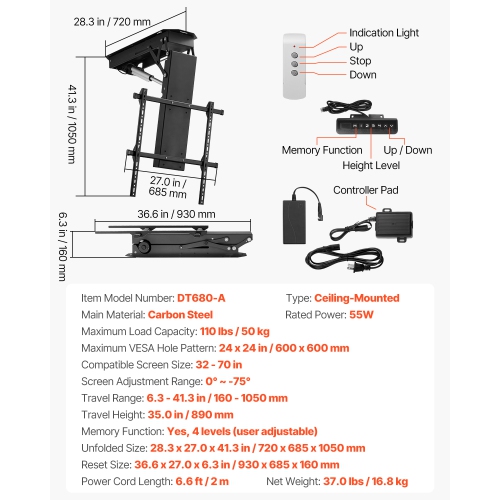

Item Model Number: DT680-A
Type: Ceiling-Mounted
Main Material: Carbon Steel
Rated Power: 55W
Maximum Load Capacity: 110 lbs / 50 kg
Max VESA Mount Compatibility: 24 x 24 in / 600 x 600 mm
Compatible Screen Size: 32 - 70 in
Screen Adjustment Range: 0ยฐ ~ -75ยฐ
Travel Range: 6.3 - 41.3 in / 160 - 1050 mm
Travel Height: 35.0 in / 890 mm
Memory Function:Yes, 4 levels (user adjustable)

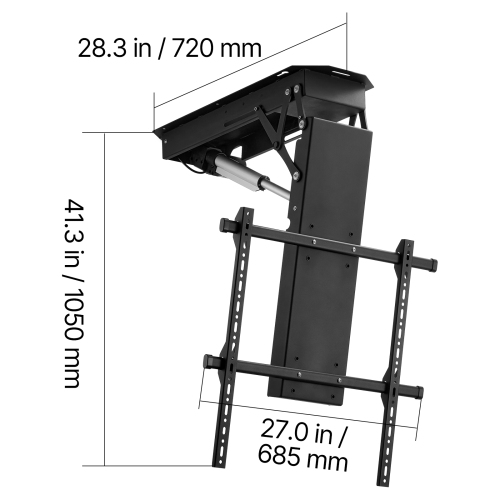

Unfolded Size: 28.3 x 27.0 x 41.3 in / 720 x 685 x 1050 mm
Reset Size: 36.6 x 27.0 x 6.3 in / 930 x 685 x 160 mm
Power Cord Length: 6.6 ft / 2 m
Net Weight: 37.0 lbs / 16.8 kg
๐ฃ๐ฎ๐ฐ๐ธ๐ฎ๐ด๐ฒ ๐๐ผ๐ป๐๐ฒ๐ป๐

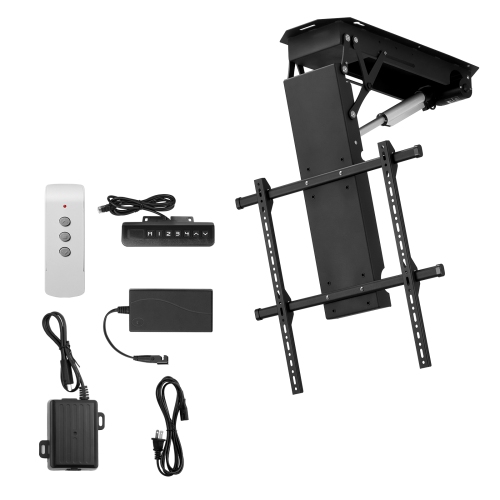

1 x Motorized TV Stand
1 x Desiccant
1 x Digital Wired Hand Controller
1 x Wireless Remote Controller
1 x Switch Power Supply 29V 1.8A
1 x Control Receiver Box
1 x US Standard Power Cord
1 x Horizontal Bar Hook (Connecting Rods: 630mm x 2, 680mm x 2)
1 x Pack of Screws
1 x Cross-head Hexagon Socket Two-way Tool
1 x User Manual
ยท Supports 70 in TVs: This motorized ceiling TV mount supports both flat and curved TVs from 32 to 70 in and is compatible with VESA patterns 200 x 100 mm, 200 x 200 mm, 300 x 300 mm, 400 x 400 mm, 600 x 400 mm, 600 x 600 mm. According to the manual, you can fix the bracket to the surface of the wooden beam or concrete/brick solid wall ceiling. Be sure to align the holes during installation and leave enough gap between the screen and the ceiling.

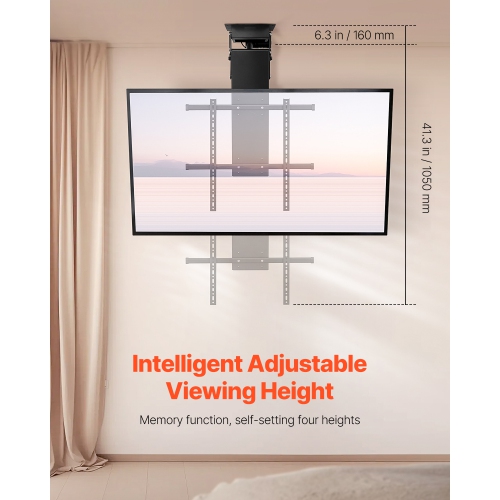

ยท Infinitely Adjustable Lift: You can operate the ceiling mount TV bracket using the wireless remote or wired handheld controller, with free control from any distance. With a travel height of 35 in / 890 mm, you can easily adjust the height within a range of 6.3-41.3 in / 160-1050 mm to find the optimal viewing height. The programmable memory function allows you to store up to 4 preset heights for long-term use.

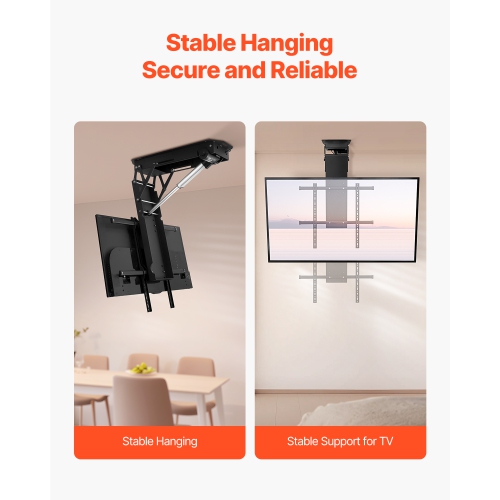

ยท Heavy-duty Steel Construction: Made from heavy-duty powder-coated steel, this electric ceiling TV mount can support a TV weight of up to 110 lbs / 50 kg, ensuring it won't quickly oxidize or damage with long-term use and withstands deformation under pressure. Paired with a powerful motor, it ensures secure and stable lifting and lowering, with no wobbling or loosening, even for large TVs.

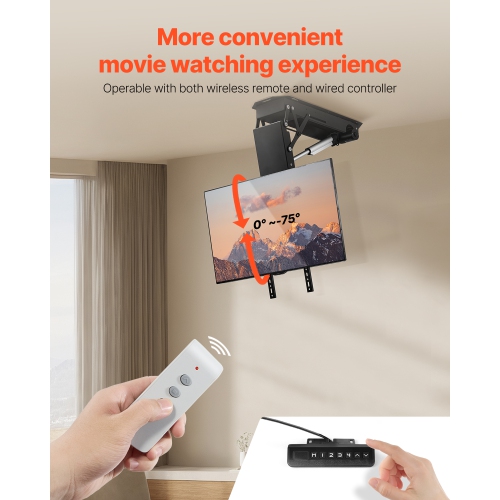

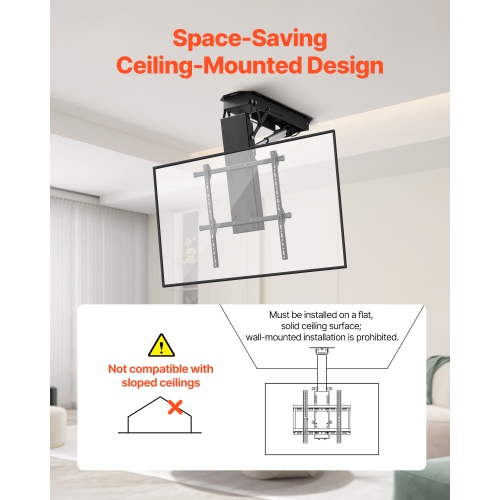

ยท Adjustable Tilt: This drop-down ceiling TV mount offers an adjustable tilt range of 0ยฐ to -75ยฐ. When installed on a flat ceiling, you can adjust the tilt angle to find the perfect viewing position for watching movies, sports, or gaming. It ensures a comfortable viewing angle and can be retracted when not in use, saving valuable space. Note: It cannot be wall-mounted or placed on the ground for use.
ยท Wide Application: Our electric TV mount is ideal for offices, meeting rooms, living rooms, bedrooms, hotel lobbies, shopping malls, and more. It can be installed in counters, commercial spaces, or residential settings, making it suitable for office training, business presentations, home entertainment, and more, enhancing your visual screen viewing experience.
