Conduct your research in confidence, with this 7x - 45x trinocular stereo microscope with a built-in camera from Walter Products. Ideal for use in settings that required high magnification and resolution, this microscope features a large zoom and long-working distance, plus ergonomic features like synchronized bi-lateral inter-pupillary distance adjustments.

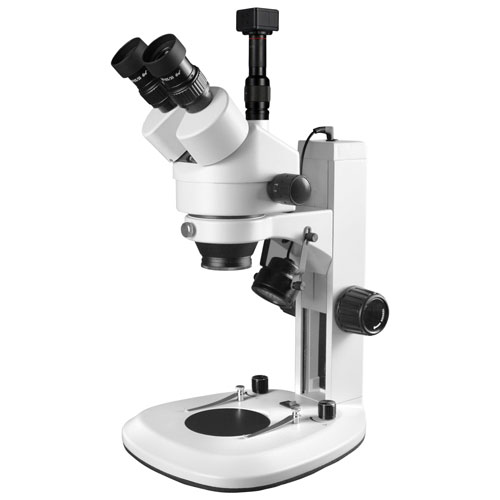

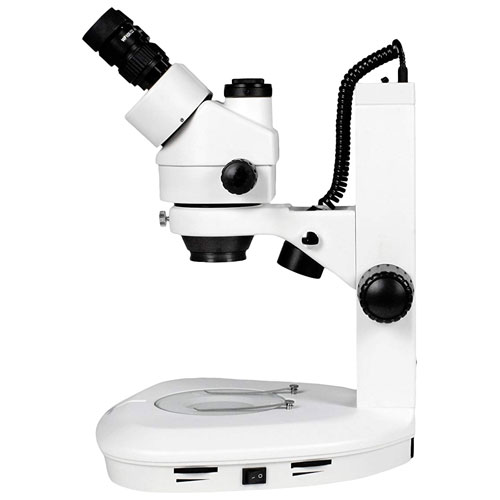

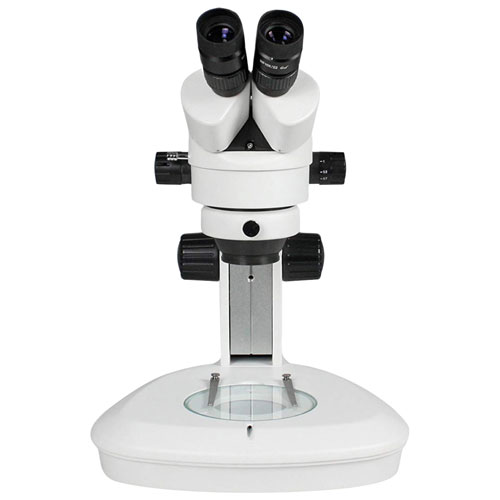

Walter Products 7x - 45x Trinocular Stereo Microscope with Built-in Camera (QZFDNS5)

Model: QZFDNS5
Web Code: 13311216
Sold and shipped by Best Buy

Available for deliveryAvailable online only

Return Policy

30 days to return or exchange

Read return policy

Low Price Guarantee

Find a lower price anywhere else, we'll gladly match it. Exclusions apply.

See details

Manufacturer's Warranty

Check with the manufacturer for details or add Best Buy Protection for extra coverage.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

What's included:

  • Trinocular Head Microscope With A 10X Eyepiece
  • 5MP Digital Camera
  • 1 x 0.5X Cmount Lens
  • USB 2.0 Cable
  • CD With Software
  • Stereo microscope produces a 3-dimensional visualization of the sample being examined without the use of warm illumination, making it perfect for studying the surfaces of specimens or carrying out temperature-sensitive work
  • Total magnification range of 7x - 45x offers a wide range of magnification options, from high-resolution up close to detailed long-distance
  • Magnification range can be enlarged to 3.5x - 180 x with optional auxiliary objectives and eyepieces
  • Microscope has a standard working distance of 105mm, which can be adjusted from 36mm to 189mm with the auxiliary lens
  • Inter-pupillary distance can be adjusted from 54mm-76mm for greater ergonomic comfort and performance
  • 45-degree inclined trinocular viewing head features a 20%/80% light splitting ratio, and can be rotated 360 degrees to allow easy viewing between 2 people
  • Eyepieces features 2 dioptre adjustments of +/-5 on both eyepieces, 10x wide field of view (Field of view number FN22), high eyepoint, and locking setscrews to prevent students or other users from removing them
  • Fully-coated optical system delivers sharp, clear images with good flatness and contrast
  • Built-in 5MP camera allows images to captured and edited with included software, enabling more accurate photo microscopy
  • High-resolution camera (1920 x 1080) can capture video at 30fps, making it easy to track, measure, and quantify moving samples
  • Camera includes adjustable brightness, contrast, saturation, sharpness, and gamma software and features white balance and exposure and a 1/2.5" progressive scan image sensor
  • USB 2.0 output allows images and videos to be transferred easily to other devices
  • Camera supports Windows 2000/XP2/Vista/Win7/Win10 operating systems
  • Rugged cast aluminum construction is made to hold up well to use
  • Comes with dust cover and instruction manual
Product Condition
Brand New
Mono/Stereo
Stereo
Magnification Power
7x-45x
Objective Lenses
0.7x-4.5x
Type of Illumination
Top LED Illumination
Built-In Camera (MP)
5 MP
Microscope Type
Stereo
Digital Screen
No
Rotatable Head
360 °
Video Output
Yes
STREAM - Technology
Yes
STREAM - Engineering
Yes
Width
39 cm
Height
36 cm
Depth
26 cm
Weight
4100 g
